TRW
Braking System

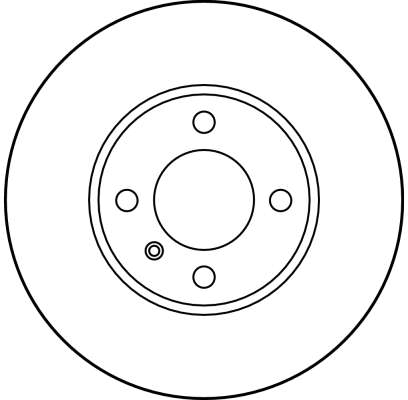

Brake Disc
Part No.
DF1560
·
SKU
DF1560-TRW
Price on request
Currently out of stock
Get notified when this part is back in stock:
Genuine & OEM parts
Nationwide delivery
Easy returns
Specifications
| Bolt Hole Circle Ø (mm) | 100 |
| Brake Disc Thickness (mm) | 22 |
| Brake Disc Type Vented |
| Centering Diameter (mm) | 63 |
| Height (mm) | 75 |
| Minimum thickness (mm) | 20.4 |
| Number of Holes 4 |
| Outer Diameter (mm) | 255 |
| Thread Size 15 |
Bolt Hole Circle Ø [mm] 100, Brake Disc Thickness [mm] 22, Brake Disc Type Vented, Centering Diameter [mm] 63, Height [mm] 75, Minimum thickness [mm] 20,4, Number of Holes 4, Outer Diameter [mm] 255, Thread Size 15
Interchangeable Part Numbers
A.B.S.15721
ABEXW0336
ATE24012201121
ATE422112
BENDIX333187
BENDIX561175B
BOSCH0 986 478 033
BOSCH986478033
BRADI1.0605.2.4
BREMBO09.3946.10
DBA AustraliaDBA378
DELPHIBG196
DELPHIBG2196
DELPHIBS3126
FERODODDF165
FERODODDF1651
FIRST LINEFBD130
GRAFDF2859L
HELLA8DD 355 100-161
HELLA8DD 355 100-251
JURID561175J
LEMFÖRDER13212 01
METELLI230059
OBTEC A/S131340V
PAGID50418
PEX140081
QUINTON HAZELLBDC3126
REMSA617110
SEBRO2482
TEXTAR98200013701
TRISCAN812011115
VALEO186116
ZIMMERMANN1501136
ZIMMERMANN150113600
ZIMMERMANN150113620
ZIMMERMANN150113652
OE Numbers — BMW
1 117 038
1 119 111
1 119 112
1 163 125
1 163 126
34 11 1 117 038
34 11 1 119 111
34 11 1 119 112
34 11 1 163 125
34 11 1 163 126
