Brake Disc

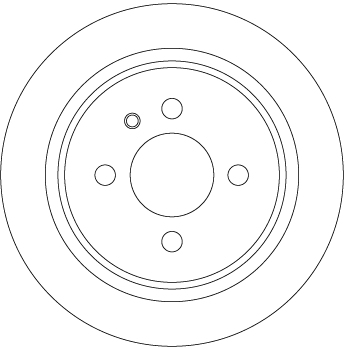

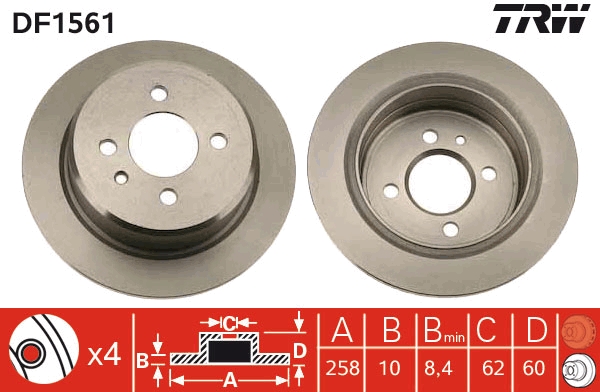

Brake Disc 1 Brake Disc 2
Braking System

Brake Disc

Part No. DF1561 · SKU DF1561-TRW
Rear Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)100
Brake Disc Thickness (mm)10
Brake Disc Type solid
Centering Diameter (mm)62
Colour black
Drum diameter (mm)160.4
Height (mm)60
Minimum thickness (mm)8.4
Number of Holes 4
Outer Diameter (mm)258
Surface Painted
Test Mark E1 90R-02 C0204/0283
Thread Size 15
Bolt Hole Circle Ø [mm] 100, Brake Disc Thickness [mm] 10, Brake Disc Type solid, Centering Diameter [mm] 62, Colour black, Drum diameter [mm] 160,4, Height [mm] 60, Minimum thickness [mm] 8,4, Number of Holes 4, Outer Diameter [mm] 258, Surface Painted, Test Mark E1 90R-02 C0204/0283, Thread Size 15
Fits: BMW

Interchangeable Part Numbers

A.B.S.15726 A.P.10111E ABEXW0272 ACDelcoAC2070D APECDSK553 ATE24011001501 ATE24031001501 ATE24111001501 ATE410150 BENDIX333141 BENDIX561132B BENDIX561132BC BORG & BECKBBD5343 BOSCH 0 986 478034 BOSCH0986478034 BOSCH986478034 BOSCH F 026 A00939 BOSCHF026A00939 BRADI1.0612.5.4 Brake ENGINEERINGDI839472 BREMBO08.3947.20 BREMBO08394724 CAR142111 CARHPD111 DBA AustraliaDBA671 DELPHIBG202 DELPHIBG2202 DELPHIBS3288 FEBI BILSTEIN04091 FERODODDF093 FERODODDF0931 FERODODRF093S FIRST LINEFBD133 FTE9082462 FTEBS3288B GRAFDF2884 HELLA 8DD 355100-351 HELLA8DD355100351 HELLA 8DD 355126-012 HELLA8DD355126012 JURID561132J JURID561132JC LEMFÖRDER 1040602 LEMFÖRDER1040602 LPRB2131P MAGNETI MARELLI353610612540 MAGNETI MARELLI431602041230 MAPCO15719 METELLI230084 MEYLE 315 5233001/PD MEYLE3155233001PD MEYLE 315 5233001 MEYLE3155233001 MGAD884 MINTEXMDC470 NationalNBD105 NK201510 NK311510 OBTEC A/S131336 OPTIMALBS-1970C OPTIMALBS-1970 PAGID50407 PEX140087 QH Benelux52485 QUINTON HAZELLBDC3288 QUINTON HAZELLBSF3288 REMSA619700 REMYRAD1781C ROULUNDS RUBBERD2070 SEBRO2485 ST-TEMPLIN0311011640 ST-TEMPLIN0311011645 SWAG20904091 TEXTAR92019200 TEXTAR98200019201 TRISCAN812011113 TRUCKTEC AUTOMOTIVE0834018 TRUSTINGDF093 VALEO186117 WOKINGP619700 ZIMMERMANN1501129 ZIMMERMANN150112900 ZIMMERMANN150112950 ZIMMERMANN150112952

OE Numbers — BMW 1 119

581

OE Numbers — BMW

1119581 1122282 34211119581 34211122282 34216755407 6755407

OE Numbers — BMW 1 122

282

OE Numbers — BMW 34 21 6 755

407
MakeModelType / Engine YearsCCkWHP
BMW 3 (E21) 316 1975 – 1984 1573 66 90
BMW 3 (E21) 315 1975 – 1984 1573 55 75
BMW 3 (E21) 320 i 1975 – 1984 1766 74 101
BMW 3 (E21) 320 i 1975 – 1984 1990 81 110
BMW 3 (E21) 323 i 1975 – 1984 2316 105 143
BMW 3 (E21) 320 i 1975 – 1984 1990 92 125
BMW 3 (E21) 320/6 1975 – 1984 1990 90 122
BMW 3 (E21) 320 1975 – 1984 1990 80 109
BMW 3 (E21) 318 i 1975 – 1984 1766 77 105
BMW 3 (E21) 318 1975 – 1984 1766 72 98
BMW 3 (E21) 316 1975 – 1984 1766 66 90
BMW 3 (E30) 320 is 1982 – 1992 1990 141 192
BMW 3 (E30) 325 e 2.7 1982 – 1992 2693 90 122
BMW 3 (E30) 325 e 2.7 1982 – 1992 2693 95 129
BMW 3 (E30) 324 d 1982 – 1992 2443 63 86
BMW 3 (E30) 324 td 1982 – 1992 2443 85 115
BMW 3 (E30) 325 i 1982 – 1992 2494 126 171
BMW 3 (E30) 333 i 1982 – 1992 3210 145 197
BMW 3 (E30) 320 i 1982 – 1992 1990 93 126
BMW 3 (E30) 325 i 1982 – 1992 2494 141 192
BMW 3 (E30) 316 i 1982 – 1992 1596 75 102
BMW 3 (E30) 316 1982 – 1992 1766 66 90
BMW 3 (E30) 315 1982 – 1992 1573 55 75
BMW 3 (E30) 316 i 1982 – 1992 1766 75 102
BMW 3 (E30) M3 EVO II 2.5 1982 – 1992 2467 175 238
BMW 3 (E30) M3 EVO I 2.3 1982 – 1992 2302 162 220
BMW 3 (E30) M3 2.3 1982 – 1992 2302 143 195
BMW 3 (E30) 318 i 1982 – 1992 1796 85 115
BMW 3 (E30) 318 i 1982 – 1992 1796 83 113
BMW 3 (E30) 318 is 1982 – 1992 1796 100 136
BMW 3 (E30) 320 i 1982 – 1992 1990 95 129
BMW 3 (E30) 318 i 1982 – 1992 1766 77 105
BMW 3 (E30) 320 i 1982 – 1992 1990 92 125
BMW 3 (E30) 318 i 1982 – 1992 1766 75 102
BMW 3 (E30) 316 i 1982 – 1992 1596 73 100
BMW 3 (E30) 316 (Ecotronic) 1982 – 1992 1766 66 90
BMW 3 (E30) 325 i X 1982 – 1992 2494 126 171
BMW 3 (E30) M3 2.3 1982 – 1992 2302 147 200
BMW 3 (E30) 323 i 1982 – 1992 2316 102 139
BMW 3 (E30) 323 i 1982 – 1992 2316 110 150
BMW 3 (E30) M3 2.3 1982 – 1992 2302 158 215
BMW 3 (E30) 325 i X 1982 – 1992 2494 125 170
BMW 3 (E30) 325 i 1982 – 1992 2494 125 170
BMW 3 Convertible (E30) 1982 – 1993 2693 90 122
BMW 3 Convertible (E30) 320 i 1982 – 1993 1990 93 126
BMW 3 Convertible (E30) 316 i Baur TC 1982 – 1993 1596 73 99
BMW 3 Convertible (E30) M3 2.3 1982 – 1993 2302 147 200
BMW 3 Convertible (E30) M3 2.3 1982 – 1993 2303 158 215
BMW 3 Convertible (E30) 318 Baur TC 1982 – 1993 1766 66 90
BMW 3 Convertible (E30) 323 i 1982 – 1993 2316 102 139
BMW 3 Convertible (E30) 318 i Baur TC 1982 – 1993 1766 77 105
BMW 3 Convertible (E30) 318 i 1982 – 1993 1796 103 140
BMW 3 Convertible (E30) M3 2.3 1982 – 1993 2302 143 195
BMW 3 Convertible (E30) 325 i 1982 – 1993 2494 126 171
BMW 3 Convertible (E30) 325 i 1982 – 1993 2494 125 170
BMW 3 Convertible (E30) 320 i 1982 – 1993 1990 95 129
BMW 3 Convertible (E30) 318 i 1982 – 1993 1796 83 113
BMW 3 Touring (E30) 318 i 1987 – 1994 1796 85 115
BMW 3 Touring (E30) 316 i 1987 – 1994 1596 75 102
BMW 3 Touring (E30) 316 i 1987 – 1994 1596 73 100
BMW 3 Touring (E30) 320 i 1987 – 1994 1991 93 126
BMW 3 Touring (E30) 324 td 1987 – 1994 2443 85 115
BMW 3 Touring (E30) 325 i X 1987 – 1994 2494 125 170
BMW 3 Touring (E30) 325 i 1987 – 1994 2494 125 170
BMW 3 Touring (E30) 320 i 1987 – 1994 1991 95 129
BMW 3 Touring (E30) 318 i 1987 – 1994 1796 83 113
