Brake Disc
Brake Disc 1 Brake Disc 2
Braking System

Brake Disc

Part No. DF1564 · SKU DF1564-TRW
Front Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

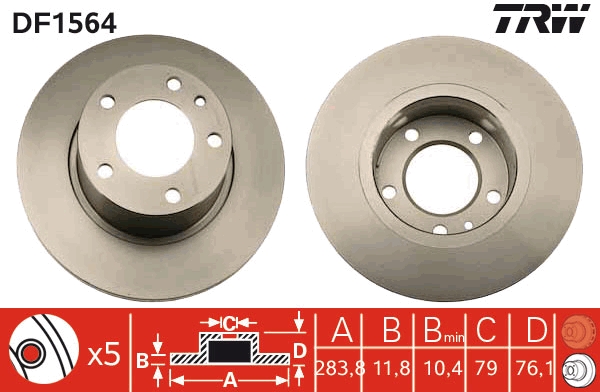

Specifications

Bolt Hole Circle Ø (mm)120
Brake Disc Thickness (mm)12
Brake Disc Type solid
Centering Diameter (mm)79
Height (mm)76
Minimum thickness (mm)10.4
Number of Holes 5
Outer Diameter (mm)284
Thread Size 15
Bolt Hole Circle Ø [mm] 120, Brake Disc Thickness [mm] 12, Brake Disc Type solid, Centering Diameter [mm] 79, Height [mm] 76, Minimum thickness [mm] 10,4, Number of Holes 5, Outer Diameter [mm] 284, Thread Size 15
Fits: BMW

Interchangeable Part Numbers

A.B.S.15734 ABEXW0307 APECDSK515 ATE24011201111 ATE412111 BENDIX333172 BENDIX561161B BOSCH 0 986 478037 BOSCH0986478037 BOSCH986478037 BRADI1.0609.1.4 BREMBO08.4485.10 DBA AustraliaDBA672 DELPHIBG210 DELPHIBG2210 DELPHIBS3294 FERODODDF119 FIRST LINEFBD139 GIRLING6015643 GRAFDF2885 HELLA 8DD 355100-491 HELLA8DD355100491 JURID561161J LEMFÖRDER 1321301 LEMFÖRDER1321301 LEMFÖRDER 1321302 LEMFÖRDER1321302 METELLI230085 NK201512 NK311512 OBTEC A/S131605 OBTEC A/S815131605 PAGID50408 PEX140084 QUINTON HAZELLBDC3294 REMSA631200 SEBRO2486 TEXTAR92022200 TEXTAR98200022201 TRISCAN812011108 TRUSTINGDF145 VALEO186121 ZIMMERMANN1501251

OE Numbers — BMW 1 151

632

OE Numbers — BMW

1151632 1163134 34111151632 34111163134

OE Numbers — BMW 1 163

134
MakeModelType / Engine YearsCCkWHP
BMW 5 (E28) 528 i 1981 – 1987 2788 135 184
BMW 5 (E28) M5 1981 – 1987 3453 191 260
BMW 5 (E28) M535 i 1981 – 1987 3430 160 218
BMW 5 (E28) 533 i 1981 – 1987 3210 135 184
BMW 5 (E28) 518 i 1981 – 1987 1766 75 102
BMW 5 (E28) 520 i 1981 – 1987 1990 110 150
BMW 5 (E28) M5 1981 – 1987 3453 210 286
BMW 5 (E28) 535 i 1981 – 1987 3430 162 220
BMW 5 (E28) 535 i, M 535 i 1981 – 1987 3430 141 192
BMW 5 (E28) 535 i, M 535 i 1981 – 1987 3430 136 185
BMW 5 (E28) 518 1981 – 1987 1766 66 90
BMW 5 (E28) 525 e 1981 – 1987 2693 95 129
BMW 5 (E28) 525 e 1981 – 1987 2693 92 125
BMW 5 (E28) 525 e 1981 – 1987 2693 90 122
BMW 5 (E28) 525 i 1981 – 1987 2494 110 150
BMW 5 (E28) 524 td 1981 – 1987 2443 85 115
BMW 5 (E28) 524 d 1981 – 1987 2443 63 86
BMW 5 (E28) 520 i 1981 – 1987 1990 95 129
BMW 5 (E28) 520 i 1981 – 1987 1990 92 125
BMW 5 (E28) 518 i 1981 – 1987 1766 77 105
