Brake Disc

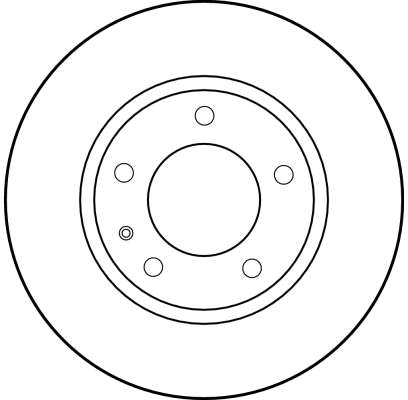

Brake Disc 1 Brake Disc 2
Braking System

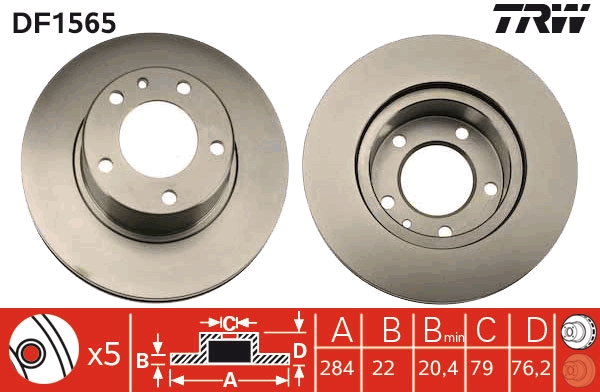

Brake Disc

Part No. DF1565 · SKU DF1565-TRW
Front Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)120
Brake Disc Thickness (mm)22
Brake Disc Type Vented
Centering Diameter (mm)79
Height (mm)76.2
Minimum thickness (mm)20.4
Number of Holes 5
Outer Diameter (mm)284
Test Mark E190R-02C0176/0038
Thread Size 15
Bolt Hole Circle Ø [mm] 120, Brake Disc Thickness [mm] 22, Brake Disc Type Vented, Centering Diameter [mm] 79, Height [mm] 76,2, Minimum thickness [mm] 20,4, Number of Holes 5, Outer Diameter [mm] 284, Test Mark E190R-02C0176/0038, Thread Size 15
Fits: ALPINA, BMW

Interchangeable Part Numbers

A.B.S.15735 ABEXW0352 ACDelcoAC2068D APECDSK624 ATE24012201351 ATE24112201351 ATE422135 BENDIX333199 BENDIX561186B BORG & BECKBBD4362 BOSCH0 986 478 043 BOSCH986478043 BOSCH F026 A00 941 BOSCHF026A00941 BRADI1.0610.2.4 Brake ENGINEERINGDI944861 BREMBO09.4486.10 BREMBO09.4486.20 CAR142123 CARHPD123 DBA AustraliaDBA675 DELPHIBG212 DELPHIBG2212 DELPHIBG2366 DELPHIBS3201 FEBI BILSTEIN04440 FERODODDF173 FERODODDF1731 FIRST LINEFBD138 FTE9072424 GIRLING6015651 GRAFDF2894L HELLA8DD 355 100-501 JURID561186J LEMFÖRDER10398 02 LPRB2101V MAGNETI MARELLI353610610240 METELLI230094 MEYLE315 521 3004/PD MEYLE315 521 3004 MGAD894 MINTEXMDC283 NationalNBD066 NK201513 NK311513 OBTEC A/S131603V OBTEC A/S815131603 OPTIMALBS-3170C OPTIMALBS-3170 PAGID50420 PEX140085 PILENGAV112 QH Benelux52487 QUINTON HAZELLBDC3201 QUINTON HAZELLBSF3201 REMSA631710 REMYRAD2483C ROULUNDS RUBBERD2068 SEBRO2487 SWAG20904440 TEXTAR92022300 TEXTAR92022303 TEXTAR98200022301 TRISCAN812011109 TRUSTINGDF890 VALEO186122 WOKINGP631710 ZIMMERMANN1501252 ZIMMERMANN150125200 ZIMMERMANN150125250 ZIMMERMANN150125252

OE Numbers — ALPINA

34 11 1 151 655 34 11 1 151 656

OE Numbers — BMW

1 151 655 1 151 656 1 163 135 1 163 136 34 11 1 163 135 34 11 1 163 136
MakeModelType / Engine YearsCCkWHP
BMW 5 (E28) 528 i 1981 – 1987 2788 135 184
BMW 5 (E28) M5 1981 – 1987 3453 191 260
BMW 5 (E28) M535 i 1981 – 1987 3430 160 218
BMW 5 (E28) 533 i 1981 – 1987 3210 135 184
BMW 5 (E28) 518 i 1981 – 1987 1766 75 102
BMW 5 (E28) 520 i 1981 – 1987 1990 110 150
BMW 5 (E28) M5 1981 – 1987 3453 210 286
BMW 5 (E28) 535 i 1981 – 1987 3430 162 220
BMW 5 (E28) 535 i, M 535 i 1981 – 1987 3430 141 192
BMW 5 (E28) 535 i, M 535 i 1981 – 1987 3430 136 185
BMW 5 (E28) 518 1981 – 1987 1766 66 90
BMW 5 (E28) 525 e 1981 – 1987 2693 95 129
BMW 5 (E28) 525 e 1981 – 1987 2693 92 125
BMW 5 (E28) 525 e 1981 – 1987 2693 90 122
BMW 5 (E28) 525 i 1981 – 1987 2494 110 150
BMW 5 (E28) 524 td 1981 – 1987 2443 85 115
BMW 5 (E28) 524 d 1981 – 1987 2443 63 86
BMW 5 (E28) 520 i 1981 – 1987 1990 95 129
BMW 5 (E28) 520 i 1981 – 1987 1990 92 125
BMW 5 (E28) 518 i 1981 – 1987 1766 77 105
