Brake Disc
Brake Disc 1 Brake Disc 2
Braking System

Brake Disc

Part No. DF1566 · SKU DF1566-TRW
Rear Axle
₱11,400.00
In stock — available to order
Genuine & OEM parts Nationwide delivery Easy returns

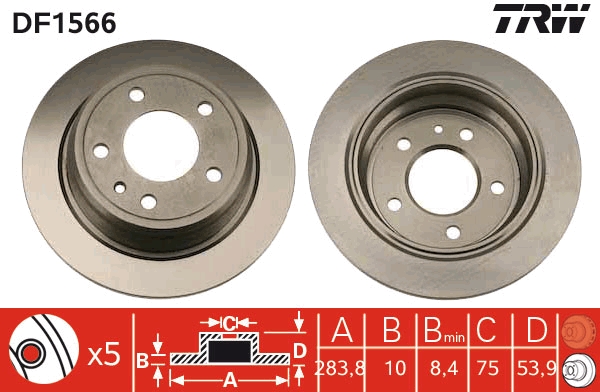

Specifications

Bolt Hole Circle Ø (mm)120
Brake Disc Thickness (mm)10
Brake Disc Type solid
Centering Diameter (mm)75
Height (mm)61
Minimum thickness (mm)8.4
Number of Holes 5
Outer Diameter (mm)284
Thread Size 15
Bolt Hole Circle Ø [mm] 120, Brake Disc Thickness [mm] 10, Brake Disc Type solid, Centering Diameter [mm] 75, Height [mm] 61, Minimum thickness [mm] 8,4, Number of Holes 5, Outer Diameter [mm] 284, Thread Size 15
Fits: ALPINA, BMW

Supplier Cross-References

DELPHIBG2211 TEXTAR92022400 ATE24011001741 JURID561162J BREMBO8448710 TRWDF1566

Interchangeable Part Numbers

A.B.S.15742 ABEXW0308 ACDelcoAC2069D APECDSK617 ATE24111001741 ATE410174 BENDIX333173 BENDIX561162B BOSCH 0 986 478044 BOSCH0986478044 BOSCH986478044 BOSCH F 026 A00938 BOSCHF026A00938 BRADI1.0611.5.4 Brake ENGINEERINGDI844871 BREMBO08.4487.10 DBA AustraliaDBA670 DELPHIBG211 DELPHIBS3295 FEBI BILSTEIN04092 FERODODDF120 FIRST LINEFBD146 GIRLING6015664 GRAFDF2895 HELLA 8DD 355100-511 HELLA8DD355100511 LEMFÖRDER 1039502 LEMFÖRDER1039502 LPRB2111P MAGNETI MARELLI353610611540 MAPCO15712 METELLI230095 MEYLE 315 5233002/PD MEYLE3155233002PD MEYLE 315 5233002 MEYLE3155233002 MGAD895 MINTEXMDC271 NationalNBD107 NK201514 NK311514 OBTEC A/S131606 OBTEC A/S815131606 OPTIMALBS-3080C OPTIMALBS-3080 PAGID50409 PEX140086 PILENGA5118 QH Benelux52488 QUINTON HAZELLBDC3295 QUINTON HAZELLBSF3295 REMSA630800 REMYRAD2445C ROULUNDS RUBBERD2069 SEBRO2488 SWAG20904092 TEXTAR92022405 TEXTAR98200022401 TRISCAN812011110 TRUSTINGDF847 VALEO186123 VALEO186412 WOKINGP630800 ZIMMERMANN1501253 ZIMMERMANN150125300 ZIMMERMANN150125350 ZIMMERMANN150125352

OE Numbers — ALPINA 34 21 1 121

387

OE Numbers — ALPINA

34211121387

OE Numbers — BMW

1121387 1152571 1162968 1163140 34211152571 34211162968 34211163140

OE Numbers — BMW 1 152

571

OE Numbers — BMW 1 162

968

OE Numbers — BMW 1 163

140
MakeModelType / Engine YearsCCkWHP
BMW 5 (E28) 518 i 1981 – 1987 1766 77 105
BMW 5 (E28) M5 1981 – 1987 3453 191 260
BMW 5 (E28) M535 i 1981 – 1987 3430 160 218
BMW 5 (E28) 533 i 1981 – 1987 3210 135 184
BMW 5 (E28) 518 i 1981 – 1987 1766 75 102
BMW 5 (E28) 520 i 1981 – 1987 1990 110 150
BMW 5 (E28) M5 1981 – 1987 3453 210 286
BMW 5 (E28) 535 i 1981 – 1987 3430 162 220
BMW 5 (E28) 535 i, M 535 i 1981 – 1987 3430 141 192
BMW 5 (E28) 535 i, M 535 i 1981 – 1987 3430 136 185
BMW 5 (E28) 525 e 1981 – 1987 2693 95 129
BMW 5 (E28) 518 1981 – 1987 1766 66 90
BMW 5 (E28) 520 i 1981 – 1987 1990 92 125
BMW 5 (E28) 520 i 1981 – 1987 1990 95 129
BMW 5 (E28) 524 d 1981 – 1987 2443 63 86
BMW 5 (E28) 524 td 1981 – 1987 2443 85 115
BMW 5 (E28) 525 i 1981 – 1987 2494 110 150
BMW 5 (E28) 528 i 1981 – 1987 2788 135 184
BMW 5 (E28) 525 e 1981 – 1987 2693 92 125
BMW 5 (E28) 525 e 1981 – 1987 2693 90 122
BMW 6 (E24) 630 CS 1975 – 1989 2986 136 185
BMW 6 (E24) 633 CSi 1975 – 1989 3210 132 179
BMW 6 (E24) 635 CSi 1975 – 1989 3430 162 220
BMW 6 (E24) 633 CSi 1975 – 1989 3210 135 184
BMW 6 (E24) 630 CSi 1975 – 1989 2986 131 178
BMW 6 (E24) 635 CSi 1975 – 1989 3430 160 218
BMW 6 (E24) 628 CSi 1975 – 1989 2788 135 184
BMW 6 (E24) 635 CSi 1975 – 1989 3453 160 218
BMW 6 (E24) 633 CSi 1975 – 1989 3210 147 200
BMW 6 (E24) M 635 CSi 1975 – 1989 3453 191 260
BMW 6 (E24) 635 CSi 1975 – 1989 3430 141 192
BMW 6 (E24) 635 CSi 1975 – 1989 3430 136 185
BMW 6 (E24) 630 CS 1975 – 1989 2986 135 184
BMW 6 (E24) 633 CSi 1975 – 1989 3210 145 197
BMW 6 (E24) 635 CSi 1975 – 1989 3430 155 211
BMW 6 (E24) M 635 CSi 1975 – 1989 3453 210 286
