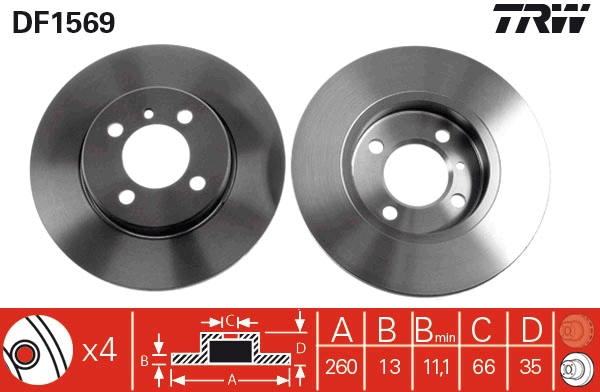

Brake Disc

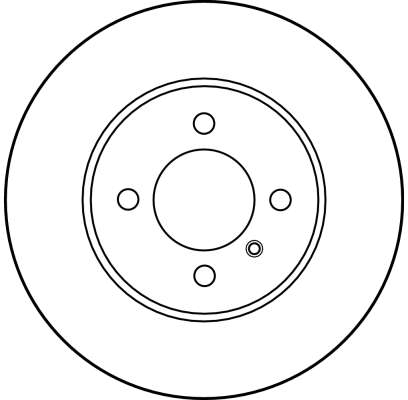

Brake Disc 1 Brake Disc 2
Braking System

Brake Disc

Part No. DF1569 · SKU DF1569-TRW
Front Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)100
Brake Disc Thickness (mm)12.7
Brake Disc Type solid
Centering Diameter (mm)66
Colour black
Height (mm)35
Minimum thickness (mm)11.1
Number of Holes 4
Outer Diameter (mm)260
Surface Painted
Test Mark E190R-02C0190/0112
Thread Size 15
Bolt Hole Circle Ø [mm] 100, Brake Disc Thickness [mm] 12,7, Brake Disc Type solid, Centering Diameter [mm] 66, Colour black, Height [mm] 35, Minimum thickness [mm] 11,1, Number of Holes 4, Outer Diameter [mm] 260, Surface Painted, Test Mark E190R-02C0190/0112, Thread Size 15
Fits: BMW

Interchangeable Part Numbers

A.B.S.15766 ABEXW0385 ACDelcoAC2071D APECDSK567 ATE24011301671 ATE24111301671 ATE413167 BENDIX333683 BENDIX561266B BENDIX561266BC BORG & BECKBBD4302 BOSCH0 986 478 029 BOSCH986478029 BOSCH F026 A00 942 BOSCHF026A00942 BRADI1.0613.1.4 Brake ENGINEERINGDI951086 BREMBO08.3068.10 CAR142126 CARHPD126 DBA AustraliaDBA678 DELPHIBG2252 DELPHIBG252 DELPHIBS3464 FEBI BILSTEIN08559 FERODODDF062 FERODODDF0621 FERODODDF062X FERODODDF082 FERODODRF062S FIRST LINEFBD131 FTE9072584 GRAFDF29122 HELLA8DD 355 100-631 JURID561266J JURID561266JC LEMFÖRDER10403 03 LPRB2121P MAGNETI MARELLI353610613140 MAGNETI MARELLI431602041300 MAPCO15718 METELLI230122 METZGER10219 MEYLE315 521 3009/PD MEYLE315 521 3009 MGAD922 MINTEXMDC336 NationalNBD100 NK201516 NK311516 OBTEC A/S131604 OBTEC A/S815131604 OPTIMALBS-0580C OPTIMALBS-0580 PAGID50403 PEX140088 QH Benelux52451 QUINTON HAZELLBDC3464 QUINTON HAZELLBSF3464 REMSA605800 REMYRAD2072C ROULUNDS RUBBERD2071 SEBRO2541 ST-TEMPLIN0311011600 ST-TEMPLIN0311011605 SWAG20908559 TEXTAR92026400 TEXTAR98200026401 TRISCAN812011111 TRUCKTEC AUTOMOTIVE0834025 TRUSTINGDF022 VAICOV20-40004 VALEO186118 WOKINGP605800 ZIMMERMANN1501257 ZIMMERMANN150125700 ZIMMERMANN150125750 ZIMMERMANN150125752

OE Numbers — BMW

1 154 747 34 11 1 154 747 34 11 6 752 434 6 752 434
MakeModelType / Engine YearsCCkWHP
BMW 3 (E30) 325 e 2.7 1982 – 1992 2693 95 129
BMW 3 (E30) 325 i 1982 – 1992 2494 141 192
BMW 3 (E30) 320 is 1982 – 1992 1990 141 192
BMW 3 (E30) 320 i 1982 – 1992 1990 93 126
BMW 3 (E30) M3 EVO I 2.3 1982 – 1992 2302 162 220
BMW 3 (E30) M3 EVO II 2.5 1982 – 1992 2467 175 238
BMW 3 (E30) 316 i 1982 – 1992 1766 75 102
BMW 3 (E30) 315 1982 – 1992 1573 55 75
BMW 3 (E30) 316 1982 – 1992 1766 66 90
BMW 3 (E30) 316 i 1982 – 1992 1596 75 102
BMW 3 (E30) 333 i 1982 – 1992 3210 145 197
BMW 3 (E30) 316 (Ecotronic) 1982 – 1992 1766 66 90
BMW 3 (E30) 324 td 1982 – 1992 2443 85 115
BMW 3 (E30) 324 d 1982 – 1992 2443 63 86
BMW 3 (E30) 325 e 2.7 1982 – 1992 2693 90 122
BMW 3 (E30) 325 i 1982 – 1992 2494 126 171
BMW 3 (E30) 320 i 1982 – 1992 1990 92 125
BMW 3 (E30) 316 i 1982 – 1992 1596 73 100
BMW 3 (E30) 318 i 1982 – 1992 1766 75 102
BMW 3 (E30) 318 i 1982 – 1992 1766 77 105
BMW 3 (E30) 318 i 1982 – 1992 1796 85 115
BMW 3 (E30) 318 i 1982 – 1992 1796 83 113
BMW 3 (E30) 318 is 1982 – 1992 1796 100 136
BMW 3 (E30) 320 i 1982 – 1992 1990 95 129
BMW 3 (E30) 325 i X 1982 – 1992 2494 126 171
BMW 3 (E30) M3 2.3 1982 – 1992 2302 143 195
BMW 3 (E30) M3 2.3 1982 – 1992 2302 147 200
BMW 3 (E30) 323 i 1982 – 1992 2316 102 139
BMW 3 (E30) 323 i 1982 – 1992 2316 110 150
BMW 3 (E30) M3 2.3 1982 – 1992 2302 158 215
BMW 3 (E30) 325 i X 1982 – 1992 2494 125 170
BMW 3 (E30) 325 i 1982 – 1992 2494 125 170
BMW 3 Convertible (E30) 323 i 1982 – 1993 2316 102 139
BMW 3 Convertible (E30) 318 i Baur TC 1982 – 1993 1766 77 105
BMW 3 Convertible (E30) 1982 – 1993 2693 90 122
BMW 3 Convertible (E30) 318 Baur TC 1982 – 1993 1766 66 90
BMW 3 Convertible (E30) M3 2.3 1982 – 1993 2303 158 215
BMW 3 Convertible (E30) M3 2.3 1982 – 1993 2302 147 200
BMW 3 Convertible (E30) 316 i Baur TC 1982 – 1993 1596 73 99
BMW 3 Convertible (E30) 320 i 1982 – 1993 1990 93 126
BMW 3 Convertible (E30) 318 i 1982 – 1993 1796 103 140
BMW 3 Convertible (E30) M3 2.3 1982 – 1993 2302 143 195
BMW 3 Convertible (E30) 325 i 1982 – 1993 2494 126 171
BMW 3 Convertible (E30) 325 i 1982 – 1993 2494 125 170
BMW 3 Convertible (E30) 320 i 1982 – 1993 1990 95 129
BMW 3 Convertible (E30) 318 i 1982 – 1993 1796 83 113
