Brake Disc
Brake Disc 1 Brake Disc 2
Braking System

Brake Disc

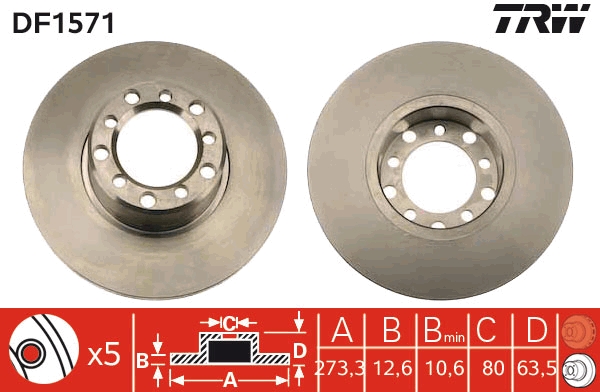

Part No. DF1571 · SKU DF1571-TRW
₱12,300.00
In stock — available to order
Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)112
Brake Disc Thickness (mm)12.6
Brake Disc Type solid
Centering Diameter (mm)80
Height (mm)63.3
Minimum thickness (mm)10.6
Number of Holes 5
Outer Diameter (mm)273
Thread Size 15
Bolt Hole Circle Ø [mm] 112, Brake Disc Thickness [mm] 12,6, Brake Disc Type solid, Centering Diameter [mm] 80, Height [mm] 63,3, Minimum thickness [mm] 10,6, Number of Holes 5, Outer Diameter [mm] 273, Thread Size 15

Supplier Cross-References

FERODODDF008 ATE24011301131 JURID561022J BREMBO8151120 TRWDF1571 LEMFÖRDER1091401

Interchangeable Part Numbers

A.B.S.15738 ABEXW0127 APECDSK715 ATE24111301131 ATE413113 BENDIX333025 BENDIX561022B BOSCH 0 986 478057 BOSCH0986478057 BRADI1.2802.1.5 BREMBO08.1511.20 DBA AustraliaDBA252 DELPHIBS1059 FEBI BILSTEIN08540 FERODODDF0081 FIRST LINEFBD207 GIRLING6015713 GRAFDF2845 LEMFÖRDER 1091401 LPRM2023P METELLI230045 MEYLE 015 5212004 MEYLE0155212004 MGAD845 NK203303 NK313303 OBTEC A/S231080 OBTEC A/S815231080 PEX140299 PILENGA5184 QH Benelux55032 QUINTON HAZELLBDC1059 QUINTON HAZELLBSF1059 REMSA626300 SEBRO5032 TEXTAR98200004701 TRISCAN812023110 ZIMMERMANN4001098 ZIMMERMANN400109800

OE Numbers — MERCEDES-BENZ 115 420 02

72

OE Numbers — MERCEDES-BENZ

1154200272 1154211312 A1154200272 A1154211312

OE Numbers — MERCEDES-BENZ 115 421 13

12
