Brake Disc

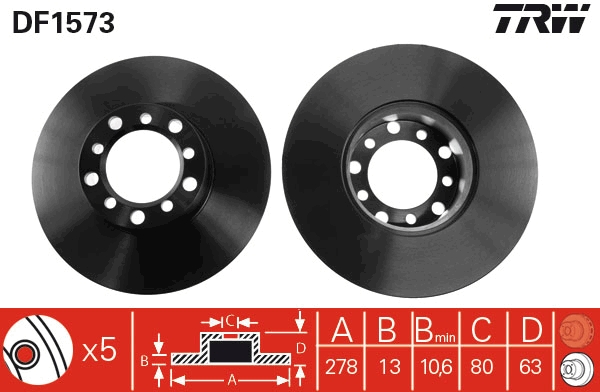

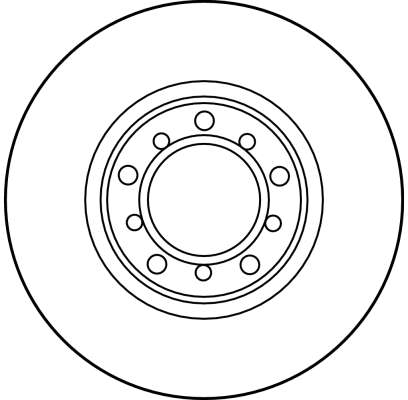

Brake Disc 1 Brake Disc 2
Braking System

Brake Disc

Part No. DF1573 · SKU DF1573-TRW
Front Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)112
Brake Disc Thickness (mm)12.6
Brake Disc Type solid
Centering Diameter (mm)80
Colour black
Height (mm)63.3
Minimum thickness (mm)10.6
Number of Holes 5
Outer Diameter (mm)278
Surface Painted
Test Mark E1 90R-02 C0190/0527
Thread Size 15
Bolt Hole Circle Ø [mm] 112, Brake Disc Thickness [mm] 12,6, Brake Disc Type solid, Centering Diameter [mm] 80, Colour black, Height [mm] 63,3, Minimum thickness [mm] 10,6, Number of Holes 5, Outer Diameter [mm] 278, Surface Painted, Test Mark E1 90R-02 C0190/0527, Thread Size 15
Fits: MERCEDES-BENZ

Interchangeable Part Numbers

A.B.S.08.3189.20 A.B.S.15740 A.P.10014 ABEXW0238 ACDelcoAC2049D APECDSK554 ATE24011301371 ATE24111301371 ATE413137 BENDIX333110 BENDIX561102B BENDIX561102BC BLUE PRINTADU174378 BORG & BECKBBD4831 BOSCH0 986 478 058 BOSCH986478058 BRADI1.2804.1.4 Brake ENGINEERINGDI831892 CAR142450 CARHPD450 DBA AustraliaDBA254 DELPHIBG2259 DELPHIBG259 DELPHIBS1060 FEBI BILSTEIN08505 FERODODDF071 FERODODDF0711 FERODODDF071X FIRST LINEFBD206 FREMAXBD-2780 FTE9072050 GIRLING6015733 GRAFDF2846 HELLA8DD 355 100-071 JURID561102J JURID561102JC LEMFÖRDER11055 03 LPRM2051P MAGNETI MARELLI431602040840 METELLI230046 MEYLE015 521 2005 MGAD846 MINTEXMDC160 NationalNBD075 NK203304 NK313304 OBTEC A/S815231081 OPTIMALBS-2720C OPTIMALBS-2720 PAGID52103 PEX140301 PILENGA5185 QH Benelux55037 QUINTON HAZELLBDC1060 QUINTON HAZELLBSF1060 REMSA627200 REMYRAD2037C ROULUNDS RUBBERD2049 sbs1815203304 SEBRO5037 ST-TEMPLIN0311020270 ST-TEMPLIN0311020275 SWAG10908505 TEXTAR92009500 TEXTAR92009503 TEXTAR98200009501 TRISCAN8120 23111C TRISCAN812023111 TRUCKTEC AUTOMOTIVE0235015 TRUSTINGDF028 VAICOV30-40006 VALEO186180 WOKINGP627200 ZIMMERMANN4001053 ZIMMERMANN400105300 ZIMMERMANN400105320

OE Numbers — MERCEDES-BENZ

114 421 00 12 115 421 14 12 123 420 00 72 123 421 00 12 A1144210012 A1154211412 A1234200072 A1234210012
MakeModelType / Engine YearsCCkWHP
MERCEDES-BENZ /8 (W114) 250 1968 – 1976 2496 109 148
MERCEDES-BENZ /8 (W114) 250 1968 – 1976 2778 112 152
MERCEDES-BENZ /8 (W114) 280 1968 – 1976 2746 97 132
MERCEDES-BENZ /8 (W114) 220 1968 – 1976 2197 63 86
MERCEDES-BENZ /8 (W114) 230.6 (114.015) 1968 – 1976 2292 88 120
MERCEDES-BENZ /8 (W114) 250 (114.010) 1968 – 1976 2496 85 116
MERCEDES-BENZ /8 (W114) 250 1968 – 1976 2496 96 130
MERCEDES-BENZ /8 (W114) 280 (114.060) 1968 – 1976 2746 118 160
MERCEDES-BENZ /8 (W114) 280 E (114.062) 1968 – 1976 2746 136 185
MERCEDES-BENZ /8 (W114) 250 2.8 (114.011) 1968 – 1976 2778 96 130
MERCEDES-BENZ /8 (W115) 200 (115.015) 1968 – 1977 1988 63 86
MERCEDES-BENZ /8 (W115) 200 1968 – 1977 1988 70 95
MERCEDES-BENZ /8 (W115) 220 (115.010) 1968 – 1977 2200 66 90
MERCEDES-BENZ /8 (W115) 220 (115.010) 1968 – 1977 2200 77 105
MERCEDES-BENZ /8 (W115) 230.4 (115.017) 1968 – 1977 2307 81 110
MERCEDES-BENZ /8 (W115) 200 D (115.115) 1968 – 1977 1988 40 55
MERCEDES-BENZ /8 (W115) 220 D (115.110) 1968 – 1977 2197 44 60
MERCEDES-BENZ /8 (W115) 240 D (115.117) 1968 – 1977 2404 48 65
MERCEDES-BENZ /8 (W115) 240 D 3.0 (115.114) 1968 – 1977 2998 59 80
MERCEDES-BENZ /8 (W115) 240 D 1968 – 1977 2404 46 63
MERCEDES-BENZ /8 Coupe (W114) 250 C (114.021) 1969 – 1977 2496 96 130
MERCEDES-BENZ /8 Coupe (W114) 250 CE (114.022) 1969 – 1977 2496 110 150
MERCEDES-BENZ /8 Coupe (W114) 280 C (114.073) 1969 – 1977 2746 118 160
MERCEDES-BENZ /8 Coupe (W114) 280 CE (114.072) 1969 – 1977 2746 136 185
MERCEDES-BENZ /8 Coupe (W114) 250 C 2.8 (114.023) 1969 – 1977 2778 96 130
MERCEDES-BENZ 123 Coupe (C123) 230 CE (123.243) 1977 – 1985 2299 100 136
MERCEDES-BENZ 123 Coupe (C123) 230 C (123.043) 1977 – 1985 2307 80 109
MERCEDES-BENZ 123 Coupe (C123) 280 C (123.050) 1977 – 1985 2746 115 156
MERCEDES-BENZ 123 Coupe (C123) 280 CE 1977 – 1985 2746 130 177
MERCEDES-BENZ 123 Coupe (C123) 280 CE 1977 – 1985 2746 136 185
MERCEDES-BENZ 123 Coupe (C123) 300 C Turbo-D (123.153) 1977 – 1985 2998 92 125
MERCEDES-BENZ 123 Coupe (C123) 300 D (123.153) 1977 – 1985 2998 59 80
MERCEDES-BENZ 123 Coupe (C123) 280 C 1977 – 1985 2746 105 143
MERCEDES-BENZ 123 Coupe (C123) 280 CE 1977 – 1985 2778 104 141
MERCEDES-BENZ 123 Coupe (C123) 300 CD (123.153) 1977 – 1985 2998 89 121
MERCEDES-BENZ 123 Saloon (W123) 230 1976 – 1985 2307 69 93
MERCEDES-BENZ 123 Saloon (W123) 300 D 1976 – 1985 2998 62 84
MERCEDES-BENZ 123 Saloon (W123) 300 D 1976 – 1985 2998 57 77
MERCEDES-BENZ 123 Saloon (W123) 280 E 1976 – 1985 2778 104 141
MERCEDES-BENZ 123 Saloon (W123) 280 E 1976 – 1985 2746 106 144
MERCEDES-BENZ 123 Saloon (W123) 240 D 1976 – 1985 2404 46 62
MERCEDES-BENZ 123 Saloon (W123) 200 1976 – 1985 1988 62 84
MERCEDES-BENZ 123 Saloon (W123) 200 (123.020) 1976 – 1985 1988 69 94
MERCEDES-BENZ 123 Saloon (W123) 200 1976 – 1985 1996 74 101
MERCEDES-BENZ 123 Saloon (W123) 200 (123.220) 1976 – 1985 1996 80 109
MERCEDES-BENZ 123 Saloon (W123) 230 E (123.223) 1976 – 1985 2299 100 136
MERCEDES-BENZ 123 Saloon (W123) 230 (123.023) 1976 – 1985 2307 80 109
MERCEDES-BENZ 123 Saloon (W123) 250 (123.026) 1976 – 1985 2525 103 140
MERCEDES-BENZ 123 Saloon (W123) 280 (123.030) 1976 – 1985 2746 115 156
MERCEDES-BENZ 123 Saloon (W123) 280 E (123.033) 1976 – 1985 2746 130 177
MERCEDES-BENZ 123 Saloon (W123) 280 E (123.033) 1976 – 1985 2746 136 185
MERCEDES-BENZ 123 Saloon (W123) 200 D (123.120) 1976 – 1985 1988 40 55
MERCEDES-BENZ 123 Saloon (W123) 200 D 1976 – 1985 1988 44 60
MERCEDES-BENZ 123 Saloon (W123) 220 D (123.126) 1976 – 1985 2197 44 60
MERCEDES-BENZ 123 Saloon (W123) 220 D 1976 – 1985 2197 49 67
MERCEDES-BENZ 123 Saloon (W123) 240 D (123.123) 1976 – 1985 2399 53 72
MERCEDES-BENZ 123 Saloon (W123) 240 D (123.123) 1976 – 1985 2399 48 65
MERCEDES-BENZ 123 Saloon (W123) 300 D (123.130) 1976 – 1985 2998 59 80
MERCEDES-BENZ 123 Saloon (W123) 300 D (123.130) 1976 – 1985 2998 65 88
MERCEDES-BENZ 123 Saloon (W123) 300 Turbo-D (123.133) 1976 – 1985 2998 92 125
MERCEDES-BENZ 123 Saloon (W123) 250 (123.026) 1976 – 1985 2525 95 129
MERCEDES-BENZ 123 T-Model (S123) 200 T (123.280) 1977 – 1986 1997 74 101
MERCEDES-BENZ 123 T-Model (S123) 200 T 1977 – 1986 1997 80 109
MERCEDES-BENZ 123 T-Model (S123) 230 TE (123.283) 1977 – 1986 2299 100 136
MERCEDES-BENZ 123 T-Model (S123) 230 T (123.083) 1977 – 1986 2307 80 109
MERCEDES-BENZ 123 T-Model (S123) 250 T (123.086) 1977 – 1986 2525 95 129
MERCEDES-BENZ 123 T-Model (S123) 250 T (123.086) 1977 – 1986 2525 103 140
MERCEDES-BENZ 123 T-Model (S123) 280 TE (123.093) 1977 – 1986 2746 136 185
MERCEDES-BENZ 123 T-Model (S123) 240 T D (123.183) 1977 – 1986 2399 53 72
MERCEDES-BENZ 123 T-Model (S123) 240 T D 1977 – 1986 2399 48 65
MERCEDES-BENZ 123 T-Model (S123) 300 T D (123.190) 1977 – 1986 2998 59 80
MERCEDES-BENZ 123 T-Model (S123) 300 T D (123.190) 1977 – 1986 2998 65 88
MERCEDES-BENZ 123 T-Model (S123) 300 T Turbo-D (123.193) 1977 – 1986 2998 92 125
MERCEDES-BENZ 123 T-Model (S123) 300 T D 1977 – 1986 3005 57 77
MERCEDES-BENZ S-CLASS (W116) 280 SE, SEL (116.024, 116.025) 1972 – 1980 2746 125 170
MERCEDES-BENZ S-CLASS (W116) 300 SD 1972 – 1980 3005 91 123
MERCEDES-BENZ S-CLASS (W116) 450 SEL (116.036) 1972 – 1980 6835 186 252
MERCEDES-BENZ S-CLASS (W116) 450 SEL (116.033) 1972 – 1980 4520 119 162
MERCEDES-BENZ S-CLASS (W116) 450 SE, SEL (116.033) 1972 – 1980 4520 134 182
MERCEDES-BENZ S-CLASS (W116) 280 S (116.020) 1972 – 1980 2746 105 142
MERCEDES-BENZ S-CLASS (W116) 280 S (116.020) 1972 – 1980 2746 115 156
MERCEDES-BENZ S-CLASS (W116) 280 S (116.020) 1972 – 1980 2746 118 160
MERCEDES-BENZ S-CLASS (W116) 280 SE, SEL (116.024, 116.025) 1972 – 1980 2746 130 177
MERCEDES-BENZ S-CLASS (W116) 280 SE, SEL (116.024, 116.025) 1972 – 1980 2746 136 185
MERCEDES-BENZ S-CLASS (W116) 350 SE, SEL (116.028, 116.029) 1972 – 1980 3499 143 194
MERCEDES-BENZ S-CLASS (W116) 350 SE, SEL (116.028, 116.029) 1972 – 1980 3499 147 200
MERCEDES-BENZ S-CLASS (W116) 350 SE, SEL (116.028, 116.029) 1972 – 1980 3499 151 205
MERCEDES-BENZ S-CLASS (W116) 450 SE, SEL (116.033) 1972 – 1980 4520 160 218
MERCEDES-BENZ S-CLASS (W116) 450 SE, SEL (116.032) 1972 – 1980 4520 165 224
MERCEDES-BENZ S-CLASS (W116) 450 SEL 6.9 (116.036) 1972 – 1980 6834 210 286
MERCEDES-BENZ S-CLASS (W116) 450 SE 1972 – 1980 4520 142 193
MERCEDES-BENZ S-CLASS (W126) 260 SE (126.020) 1979 – 1991 2599 118 160
MERCEDES-BENZ S-CLASS (W126) 260 SE (126.020) 1979 – 1991 2599 122 166
MERCEDES-BENZ S-CLASS (W126) 280 S (126.021) 1979 – 1991 2746 115 156
MERCEDES-BENZ S-CLASS (W126) 280 SE, SEL (126.022, 126.023) 1979 – 1991 2746 136 185
MERCEDES-BENZ S-CLASS (W126) 300 SE, SEL (126.024, 126.025) 1979 – 1991 2960 132 180
MERCEDES-BENZ S-CLASS (W126) 300 SE, SEL (126.024, 126.025) 1979 – 1991 2960 138 188
MERCEDES-BENZ S-CLASS (W126) 380 SE, SEL (126.032, 126.033) 1979 – 1991 3818 160 218
MERCEDES-BENZ S-CLASS (W126) 380 SE, SEL (126.032) 1979 – 1991 3839 150 204
MERCEDES-BENZ S-CLASS (W126) 420 SE, SEL (126.034, 126.035) 1979 – 1991 4196 150 204
MERCEDES-BENZ S-CLASS (W126) 420 SE, SEL (126.034) 1979 – 1991 4196 160 218
MERCEDES-BENZ S-CLASS (W126) 420 SE, SEL 1979 – 1991 4196 165 224
MERCEDES-BENZ S-CLASS (W126) 420 SE, SEL 1979 – 1991 4196 170 231
MERCEDES-BENZ S-CLASS (W126) 500 SE, SEL (126.036) 1979 – 1991 4973 164 223
MERCEDES-BENZ S-CLASS (W126) 500 SE, SEL (126.036) 1979 – 1991 4973 170 231
MERCEDES-BENZ S-CLASS (W126) 500 SE, SEL (126.036) 1979 – 1991 4973 177 241
MERCEDES-BENZ S-CLASS (W126) 500 SE, SEL (126.036) 1979 – 1991 4973 180 245
MERCEDES-BENZ S-CLASS (W126) 500 SE, SEL 1979 – 1991 4973 185 252
MERCEDES-BENZ S-CLASS (W126) 500 SE, SEL 1979 – 1991 4973 195 265
MERCEDES-BENZ S-CLASS (W126) 560 SE, SEL (126.038, 126.039) 1979 – 1991 5547 178 242
MERCEDES-BENZ S-CLASS (W126) 560 SE, SEL (126.038) 1979 – 1991 5547 200 272
MERCEDES-BENZ S-CLASS (W126) 560 SE, SEL 1979 – 1991 5547 205 279
MERCEDES-BENZ S-CLASS (W126) 560 SE, SEL 1979 – 1991 5547 220 300
MERCEDES-BENZ S-CLASS (W126) 500 SE, SEL Cat 1979 – 1991 4973 185 252
MERCEDES-BENZ S-CLASS (W126) 3.8 1979 – 1991 3818 160 218
MERCEDES-BENZ S-CLASS (W126) 500 SEL (126.037) 1979 – 1991 4973 137 186
MERCEDES-BENZ S-CLASS (W126) 380 SE, SEL (126.032) 1979 – 1991 3839 116 158
MERCEDES-BENZ S-CLASS (W126) 350 SD, SDL 1979 – 1991 3449 110 150
MERCEDES-BENZ S-CLASS (W126) 300 SDL (126.125) 1979 – 1991 2996 107 146
MERCEDES-BENZ S-CLASS (W126) 300 SD (126.120) 1979 – 1991 2998 92 125
MERCEDES-BENZ S-CLASS (W126) 300 SDL (126.125) 1979 – 1991 2996 110 150
MERCEDES-BENZ S-CLASS (W126) 380 SE, SEL (126.032, 126.033) 1979 – 1991 3839 145 197
MERCEDES-BENZ S-CLASS (W126) 420 SE, SEL 1979 – 1991 4196 150 204
MERCEDES-BENZ SL (W121) 190 SL (121.042, 121.040) 1955 – 1963 1897 77 105
MERCEDES-BENZ SL (W121) 190 SL 1955 – 1963 1901 90 122
MERCEDES-BENZ SL Coupe (C107) 450 SLC (107.024) 1972 – 1985 4520 160 218
MERCEDES-BENZ SL Coupe (C107) 280 SLC (107.022) 1972 – 1985 2746 130 177
MERCEDES-BENZ SL Coupe (C107) 280 SLC (107.022) 1972 – 1985 2746 136 185
MERCEDES-BENZ SL Coupe (C107) 350 SLC (107.023) 1972 – 1985 3499 143 195
MERCEDES-BENZ SL Coupe (C107) 350 SLC (107.023) 1972 – 1985 3499 147 200
MERCEDES-BENZ SL Coupe (C107) 380 SLC (107.025) 1972 – 1985 3818 160 218
MERCEDES-BENZ SL Coupe (C107) 450 SLC (107.024) 1972 – 1985 4520 165 225
MERCEDES-BENZ SL Coupe (C107) 450 SLC 5.0 (107.026) 1972 – 1985 4973 177 241
MERCEDES-BENZ SL Coupe (C107) 450 SLC (107.024) 1972 – 1985 4520 119 162
MERCEDES-BENZ SL Coupe (C107) 380 SLC 1972 – 1985 3839 116 158
MERCEDES-BENZ SL Coupe (C107) 450 SL 1972 – 1985 4520 134 182
