Braking System

Brake Disc

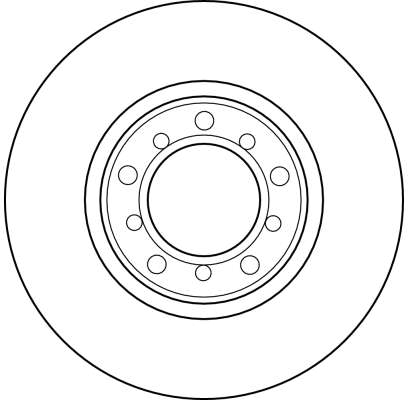

Name: Brake Disc
Brand: TRW
SKU: DF1575-TRW
Price: 15100.00 PHP
Availability: OutOfStock

Part No. DF1575 · SKU DF1575-TRW

₱15,100.00

Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)	112
Brake Disc Thickness (mm)	22
Brake Disc Type Vented
Centering Diameter (mm)	80
Height (mm)	67
Minimum thickness (mm)	20
Number of Holes 5
Outer Diameter (mm)	278
Thread Size 15

Bolt Hole Circle Ø [mm] 112, Brake Disc Thickness [mm] 22, Brake Disc Type Vented, Centering Diameter [mm] 80, Height [mm] 67, Minimum thickness [mm] 20, Number of Holes 5, Outer Diameter [mm] 278, Thread Size 15

Supplier Cross-References

DELPHIBG2205 FERODODDF1421 JURID561166J TRWDF1575 LEMFÖRDER1105402 BENDIX561166B

Interchangeable Part Numbers

A.B.S.15739 ABEXW0318 ATE24012201061 ATE422106 BENDIX333177 BOSCH0 986 478 060 BOSCH986478060 BOSCH986478405 BRADI1.2805.2.4 BREMBO09.2465.10 DELPHIBG205 DELPHIBS1073 FEBI BILSTEIN08545 FERODODDF142 FIRST LINEFBD203 GRAFDF2847L HELLA8DD 355 100-081 LEMFÖRDER11054 01 METELLI230047 MEYLE015 521 2002 MINTEXMDC213 NK203349 NK313349 OBTEC A/S815231083 PAGID52114 QUINTON HAZELLBDC1073 REMSA627510 SEBRO5036 SEBRO5038 TEXTAR92009800 TEXTAR98200009801 TRISCAN812023101 TRUSTINGDF438 VALEO186371 ZIMMERMANN400105200 ZIMMERMANN400105220 ZIMMERMANN400105500 ZIMMERMANN400105520

OE Numbers — MERCEDES-BENZ

116 420 01 05 116 420 01 72 116 420 02 05 A1164200105 A1164200172 A1164200205
