Brake Disc

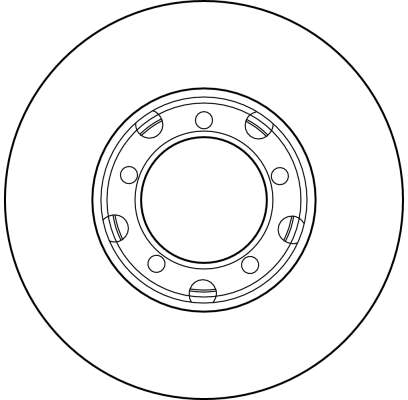

Brake Disc 1 Brake Disc 2
Braking System

Brake Disc

Part No. DF1577 · SKU DF1577-TRW
Front Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)132
Brake Disc Thickness (mm)16
Brake Disc Type solid
Centering Diameter (mm)88
Colour black
Height (mm)78.6
Minimum thickness (mm)14.4
Number of Holes 5
Outer Diameter (mm)280
Surface Painted
Thread Size 18
Bolt Hole Circle Ø [mm] 132, Brake Disc Thickness [mm] 16, Brake Disc Type solid, Centering Diameter [mm] 88, Colour black, Height [mm] 78,6, Minimum thickness [mm] 14,4, Number of Holes 5, Outer Diameter [mm] 280, Surface Painted, Thread Size 18
Fits: MERCEDES-BENZ

Interchangeable Part Numbers

A.B.S.15741 ABEXW0278 ACDelcoAC2065D APECDSK544 ATE24011601001 ATE416100 BENDIX333144 BENDIX561135B BENDIX561135BC BERALBCR116A BORG & BECKBBD4824 BOSCH0 986 478 201 BOSCH986478201 BRADI1.2812.1.4 Brake ENGINEERINGDI839592 BREMBO08.3959.20 CAR142460 CARHPD460 DELPHIBG2265 DELPHIBG265 DELPHIBS3305 FEBI BILSTEIN04875 FEBI BILSTEIN04876 FERODODDF095 FERODOFCR116A FIRST LINEFBD197 FTE9072048 FTE9082463 FTEBS3305B GIRLING6015773 GRAFDF29210 HELLA8DD 355 100-201 JURID561135J JURID561135JC LEMFÖRDER11538 03 LPRM2141P MAGNETI MARELLI353612812140 MAGNETI MARELLI431602040600 MERITORMBR1577 METELLI230210 METZGER10060 MEYLE015 521 2006 MGAD1010 MINTEXMDC465 NationalNBD073 NK203311 NK313311 OBTEC A/S231089 OPTIMALBS-2910C OPTIMALBS-2910 PAGID52104 PE Automotive01628500A PEX140312 PILENGA5191 QH Benelux55039 QUINTON HAZELLBDC3305 QUINTON HAZELLBSF3305 REMSA629100 ROULUNDS RUBBERD2065 SEBRO5039 ST-TEMPLIN031101926300 SWAG10904876 TEXTAR93012400 TEXTAR98200012401 TRISCAN812023108 TRUCKTEC AUTOMOTIVE0235039 TRUSTINGDF041 VAICOV30-40036 VALEO186179 WOKINGP629100 ZIMMERMANN4001056 ZIMMERMANN400105600

OE Numbers — MERCEDES-BENZ

601 420 00 72 601 420 02 72 601 421 04 12 601 421 50 12 601 421 51 12 A6014200072 A6014200272 A6014210412 A6014215012 A6014215112
MakeModelType / Engine YearsCCkWHP
MERCEDES-BENZ T1 Bus (602) 308 D 2.3 1977 – 1996 2299 60 82
MERCEDES-BENZ T1 Bus (602) 310 D 2.9 1977 – 1996 2874 70 95
MERCEDES-BENZ T1 Bus (602) 310 D 2.9 1977 – 1996 2874 72 98
MERCEDES-BENZ T1 Bus (602) 308 D 2.3 1977 – 1996 2299 58 79
MERCEDES-BENZ T1 Bus (B601) 210 2.3 1977 – 1996 2298 70 95
MERCEDES-BENZ T1 Bus (B601) 208 2.3 1977 – 1996 2307 63 86
MERCEDES-BENZ T1 Bus (B601) 210 2.3 1977 – 1996 2298 77 105
MERCEDES-BENZ T1 Bus (B601) 208 D 2.3 (601.371, 601.372, 601.376, 601.377) 1977 – 1996 2299 58 79
MERCEDES-BENZ T1 Bus (B601) 208 D 2.3 1977 – 1996 2299 60 82
MERCEDES-BENZ T1 Bus (B601) 207 D 2.4 (601.371, 601.372, 601.376, 601.377) 1977 – 1996 2404 48 65
MERCEDES-BENZ T1 Bus (B601) 210 D 2.8 1977 – 1996 2874 70 95
MERCEDES-BENZ T1 Bus (B601) 210 D 2.8 1977 – 1996 2874 72 98
MERCEDES-BENZ T1 Bus (B601) 209 D 2.9 1977 – 1996 2998 65 88
MERCEDES-BENZ T1 Bus (B601) 207 D 2.4 (601.371, 601.376, 601.377) 1977 – 1996 2399 53 72
MERCEDES-BENZ T1 Platform/Chassis (601) 208 D 2.3 1977 – 1996 2299 60 82
MERCEDES-BENZ T1 Platform/Chassis (601) 210 D 2.9 1977 – 1996 2874 70 95
MERCEDES-BENZ T1 Platform/Chassis (601) 207 D 2.4 1977 – 1996 2404 48 65
MERCEDES-BENZ T1 Platform/Chassis (601) 208 D 2.3 1977 – 1996 2299 58 79
MERCEDES-BENZ T1 Platform/Chassis (601) 210 D 2.8 1977 – 1996 2874 72 98
MERCEDES-BENZ T1 Platform/Chassis (601) 209 D 2.9 1977 – 1996 2998 65 88
MERCEDES-BENZ T1 Platform/Chassis (601) 207 D 2.4 1977 – 1996 2399 53 72
MERCEDES-BENZ T1 Platform/Chassis (601) 210 2.3 1977 – 1996 2298 70 95
MERCEDES-BENZ T1 Platform/Chassis (601) 210 2.3 1977 – 1996 2307 63 86
MERCEDES-BENZ T1 Platform/Chassis (B602) 308 D 2.3 1977 – 1996 2299 58 79
MERCEDES-BENZ T1 Platform/Chassis (B602) 307 D 2.4 1977 – 1996 2399 48 65
MERCEDES-BENZ T1 Platform/Chassis (B602) 308 D 2.3 1977 – 1996 2299 60 82
MERCEDES-BENZ T1 Platform/Chassis (B602) 310 2.3 1977 – 1996 2299 70 95
MERCEDES-BENZ T1 Platform/Chassis (B602) 310 D 2.9 1977 – 1996 2874 70 95
MERCEDES-BENZ T1 Platform/Chassis (B602) 310 D 2.9 1977 – 1996 2874 72 98
MERCEDES-BENZ T1 Platform/Chassis (B602) 307 D 2.4 1977 – 1996 2399 53 72
MERCEDES-BENZ T1 Platform/Chassis (B602) 309 D 3.0 1977 – 1996 2998 65 88
MERCEDES-BENZ T1 Van (601, 611) 210 2.3 1977 – 1996 2298 77 105
MERCEDES-BENZ T1 Van (601, 611) 208 D 2.3 1977 – 1996 2299 58 79
MERCEDES-BENZ T1 Van (601, 611) 208 D 2.3 1977 – 1996 2299 60 82
MERCEDES-BENZ T1 Van (601, 611) 210 D 2.8 1977 – 1996 2874 70 95
MERCEDES-BENZ T1 Van (601, 611) 210 D 2.8 1977 – 1996 2874 72 98
MERCEDES-BENZ T1 Van (601, 611) 207 D 2.4 1977 – 1996 2399 53 72
MERCEDES-BENZ T1 Van (601, 611) 209 D 2.9 1977 – 1996 2998 65 88
MERCEDES-BENZ T1 Van (601, 611) 210 2.3 1977 – 1996 2298 70 95
MERCEDES-BENZ T1 Van (601, 611) 407 D 2.4 (611.367, 611.368) 1977 – 1996 2399 53 72
MERCEDES-BENZ T1 Van (601, 611) 210 2.3 1977 – 1996 2307 63 86
MERCEDES-BENZ T1 Van (B602) 310 2.3 1982 – 1996 2299 77 105
MERCEDES-BENZ T1 Van (B602) 310 2.3 1982 – 1996 2298 70 95
MERCEDES-BENZ T1 Van (B602) 310 D 2.9 1982 – 1996 2874 72 98
MERCEDES-BENZ T1 Van (B602) 308 D 2.3 1982 – 1996 2299 58 79
MERCEDES-BENZ T1 Van (B602) 307 D 2.4 1982 – 1996 2399 53 72
MERCEDES-BENZ T1 Van (B602) 309 D 3.0 1982 – 1996 2998 65 88
MERCEDES-BENZ T1 Van (B602) 310 D 2.9 1982 – 1996 2874 70 95
MERCEDES-BENZ T1 Van (B602) 308 D 2.3 1982 – 1996 2299 60 82
MERCEDES-BENZ T1/TN Platform/Chassis 407 D (611.317, 611.318) 1981 – 1995 2398 53 72
MERCEDES-BENZ T1/TN Platform/Chassis 408 D (611.317, 611.318) 1981 – 1995 2299 58 79
MERCEDES-BENZ T1/TN Platform/Chassis 409 D (611.417, 611.418) 1981 – 1995 2998 65 88
MERCEDES-BENZ T1/TN Platform/Chassis 410 D (611.417, 611.418) 1981 – 1995 2874 70 95
MERCEDES-BENZ T1/TN Platform/Chassis 410 (611.017, 611.018) 1981 – 1995 2298 70 95
MERCEDES-BENZ T1/TN Platform/Chassis 410 (611.017, 611.018) 1981 – 1995 2298 77 105
MERCEDES-BENZ T1/TN Platform/Chassis 410 D (611.417, 611.418) 1981 – 1995 2874 72 98
MERCEDES-BENZ T1/TN Platform/Chassis 408 D (611.317, 611.318) 1981 – 1995 2299 60 82
MERCEDES-BENZ T1/TN Van 410 (611.067, 611.068) 1981 – 1995 2298 70 95
MERCEDES-BENZ T1/TN Van 410 (611.067, 611.068) 1981 – 1995 2298 77 105
MERCEDES-BENZ T1/TN Van 410 D (611.467, 611.468) 1981 – 1995 2874 72 98
MERCEDES-BENZ T1/TN Van 408 D (611.367, 611.368) 1981 – 1995 2299 60 82
MERCEDES-BENZ T1/TN Van 407 D (611.367, 611.368) 1981 – 1995 2398 53 72
MERCEDES-BENZ T1/TN Van 408 D (611.367, 611.368) 1981 – 1995 2299 58 79
MERCEDES-BENZ T1/TN Van 409 D (611.467, 611.468) 1981 – 1995 2998 65 88
MERCEDES-BENZ T1/TN Van 410 D (611.467, 611.468) 1981 – 1995 2874 70 95
MERCEDES-BENZ T2/L Platform/Chassis L 405 D 1968 – 1988 2197 44 60
MERCEDES-BENZ T2/L Platform/Chassis L 406 DG (309.100, 309.101, 309.102, 309.103) 1968 – 1988 2197 44 60
MERCEDES-BENZ T2/L Platform/Chassis L 407 D (309.100, 309.101, 309.102, 309.103) 1968 – 1988 2404 48 65
MERCEDES-BENZ T2/L Platform/Chassis L 408 G (309.000, 309.001, 309.002, 309.003, 309.011) 1968 – 1988 2197 55 75
MERCEDES-BENZ T2/L Platform/Chassis L 408 DG (309.300, 309.301, 309.302, 309.303) 1968 – 1988 3782 63 85
MERCEDES-BENZ T2/L Platform/Chassis L 409 (309.000, 309.001, 309.002, 309.003) 1968 – 1988 2307 66 90
MERCEDES-BENZ T2/L Platform/Chassis L 410 (309.000, 309.002) 1968 – 1988 2299 70 95
MERCEDES-BENZ T2/L Platform/Chassis L 608 D (310.300, 310.301, 310.302, 310.303, 310.304,... 1968 – 1988 3782 63 85
MERCEDES-BENZ T2/L Platform/Chassis L 613 D (313.402, 313.404) 1968 – 1988 5675 96 130
MERCEDES-BENZ T2/L Platform/Chassis LK 408 G (309.040, 309.041) 1968 – 1988 2190 63 85
MERCEDES-BENZ T2/L Platform/Chassis L 610 (308.300, 308.302, 308.315, 308.325) 1968 – 1988 3784 72 98
MERCEDES-BENZ T2/L Platform/Chassis L 708 E (308.325, 308.315) 1968 – 1988 3780 63 86
MERCEDES-BENZ T2/L Platform/Chassis L 508 DG (309.400, 309.401, 309.402, 309.403, 309.404,... 1968 – 1988 3782 63 85
MERCEDES-BENZ T2/L Platform/Chassis LK 408 G, LK 409 (309.040, 309.041, 309.044) 1968 – 1988 2307 66 90
MERCEDES-BENZ T2/L Platform/Chassis LK 408 G, LK 409 (309.041, 309.044) 1968 – 1988 2299 70 95
MERCEDES-BENZ T2/L Platform/Chassis LKO 508 DG (309.440, 309.441, 309.442, 309.444, 309.445) 1968 – 1988 3782 63 85
MERCEDES-BENZ T2/L Platform/Chassis L 608 D (310.340, 310.341, 310.342, 310.344, 310.345,... 1968 – 1988 3782 63 85
MERCEDES-BENZ T2/L Platform/Chassis L 407 D (309.100, 309.101, 309.102, 309.103) 1968 – 1988 2404 53 72
MERCEDES-BENZ T2/L Platform/Chassis L 408 G (309.000, 309.001, 309.002, 309.003, 309.011,... 1968 – 1988 2197 63 85
MERCEDES-BENZ T2/L Van L 407 D (309.111, 309.112, 309.113, 309.114, 309.115,... 1968 – 1988 2404 53 72
MERCEDES-BENZ T2/L Van L 508 DG (309.411, 309.412, 309.413, 309.414, 309.415,... 1968 – 1988 3782 63 85
MERCEDES-BENZ T2/L Van L 408 G (309.012, 309.013, 309.014, 309.015, 309.016,... 1968 – 1988 1990 63 85
MERCEDES-BENZ T2/L Van L 408 G (309.012, 309.013, 309.014, 309.015, 309.016,... 1968 – 1988 2197 63 85
MERCEDES-BENZ T2/L Van L 405 D 1968 – 1988 2197 44 60
MERCEDES-BENZ T2/L Van L 406 DG (309.111, 309.112, 309.113, 309.114, 309.115,... 1968 – 1988 2197 44 60
MERCEDES-BENZ T2/L Van L 407 D (309.111, 309.112, 309.113, 309.114, 309.115,... 1968 – 1988 2404 48 65
MERCEDES-BENZ T2/L Van L 408 G (309.012, 309.013, 309.014, 309.015, 309.016,... 1968 – 1988 1990 55 75
MERCEDES-BENZ T2/L Van L 408 G (309.012, 309.013, 309.014, 309.015, 309.016,... 1968 – 1988 2197 55 75
MERCEDES-BENZ T2/L Van L 408 DG (309.311, 309.312, 309.313, 309.314, 309.315,... 1968 – 1988 3782 63 85
MERCEDES-BENZ T2/L Van L 409 (309.011, 309.012, 309.013, 309.014, 309.015,... 1968 – 1988 2307 66 90
MERCEDES-BENZ T2/L Van L 410 (309.011, 309.012, 309.013, 309.014, 309.015,... 1968 – 1988 2299 70 95
MERCEDES-BENZ T2/L Van L 608 D (310.311, 310.312, 310.313, 310.314, 310.315,... 1968 – 1988 3784 63 85
MERCEDES-BENZ T2/L Van L 613 D (310.510, 313.424, 313.427, 313.429) 1968 – 1988 5675 96 130
MERCEDES-BENZ T2/LN1 Platform/Chassis 507 D (667.301, 667.302, 667.341, 667.342) 1986 – 2011 2399 53 72
MERCEDES-BENZ T2/LN1 Platform/Chassis 507 DK (667.341, 667.342) 1986 – 2011 2399 53 72
MERCEDES-BENZ T2/LN1 Platform/Chassis 508 D (667.301, 667.302, 667.341, 667.342) 1986 – 2011 2299 58 79
MERCEDES-BENZ T2/LN1 Platform/Chassis 510 (667.001, 667.002) 1986 – 2011 2299 70 95
MERCEDES-BENZ T2/LN1 Platform/Chassis 609 D (668.001, 668.002, 668.003) 1986 – 2011 3972 63 86
MERCEDES-BENZ T2/LN1 Platform/Chassis 609 DK (668.041, 668.042) 1986 – 2011 3972 63 86
MERCEDES-BENZ T2/LN1 Platform/Chassis 609 D (668.001, 668.002, 668.003) 1986 – 2011 3972 77 105
MERCEDES-BENZ T2/LN1 Platform/Chassis 709 DK (669.041, 669.042) 1986 – 2011 3972 63 86
MERCEDES-BENZ T2/LN1 Platform/Chassis 711 D (669.301, 669.302, 669.303) 1986 – 2011 3972 77 105
MERCEDES-BENZ T2/LN1 Platform/Chassis 714 D (669.301, 669.302, 669.303) 1986 – 2011 3972 103 140
MERCEDES-BENZ T2/LN1 Platform/Chassis 809 DK (670.041, 670.042) 1986 – 2011 3972 63 86
MERCEDES-BENZ T2/LN1 Platform/Chassis 814 D (670.312, 670.313) 1986 – 2011 3972 100 136
MERCEDES-BENZ T2/LN1 Platform/Chassis 814 DA 4x4 (670.411, 670.412) 1986 – 2011 3972 100 136
MERCEDES-BENZ T2/LN1 Platform/Chassis 611 D (668.001, 668.002, 668.003) 1986 – 2011 3972 77 105
MERCEDES-BENZ T2/LN1 Platform/Chassis 611 DK (668.041, 668.042) 1986 – 2011 3972 77 105
MERCEDES-BENZ T2/LN1 Platform/Chassis 809 D (670.001, 670.002, 670.003) 1986 – 2011 3972 63 86
MERCEDES-BENZ T2/LN1 Platform/Chassis 811 D (670.303) 1986 – 2011 3972 77 105
MERCEDES-BENZ T2/LN1 Platform/Chassis 711 D (669.301, 669.302, 669.303) 1986 – 2011 3972 85 115
MERCEDES-BENZ T2/LN1 Platform/Chassis 709 (688.102, 688.103) 1986 – 2011 3972 66 90
MERCEDES-BENZ T2/LN1 Platform/Chassis 914 (688.133, 688.138) 1986 – 2011 3972 100 136
MERCEDES-BENZ T2/LN1 Platform/Chassis 912 (688.123) 1986 – 2011 3972 85 116
MERCEDES-BENZ T2/LN1 Platform/Chassis 712 (688.118) 1986 – 2011 3972 85 116
MERCEDES-BENZ T2/LN1 Platform/Chassis 710 (688.158, 688.159) 1986 – 2011 3972 85 116
MERCEDES-BENZ T2/LN1 Platform/Chassis 710 (688.156, 688.157) 1986 – 2011 3972 77 105
MERCEDES-BENZ T2/LN1 Platform/Chassis 710 (688.156, 688.157) 1986 – 2011 3972 81 110
MERCEDES-BENZ T2/LN1 Platform/Chassis 609 D (668.001, 668.002, 668.003) 1986 – 2011 3972 66 90
MERCEDES-BENZ T2/LN1 Platform/Chassis 609 DK (668.041, 668.042) 1986 – 2011 3972 66 90
MERCEDES-BENZ T2/LN1 Platform/Chassis 709 D (669.000, 669.001, 669.002, 669.003, 669.041) 1986 – 2011 3972 66 90
MERCEDES-BENZ T2/LN1 Platform/Chassis 709 D (669.001, 669.002, 669.003, 669.041, 669.000) 1986 – 2011 3972 63 86
MERCEDES-BENZ T2/LN1 Platform/Chassis 709 DK (669.041, 669.042) 1986 – 2011 3972 66 90
MERCEDES-BENZ T2/LN1 Platform/Chassis 510 (667.001, 667.002) 1986 – 2011 2299 77 105
MERCEDES-BENZ T2/LN1 Platform/Chassis 811 D (670.302, 670.303) 1986 – 2011 3972 85 116
MERCEDES-BENZ T2/LN1 Platform/Chassis 809 D (670.001, 670.002, 670.003) 1986 – 2011 3972 66 90
MERCEDES-BENZ T2/LN1 Platform/Chassis 814 DA 4x4 (670.411, 670.412) 1986 – 2011 3972 100 136
MERCEDES-BENZ T2/LN1 Platform/Chassis 814 D (670.312, 670.313) 1986 – 2011 3972 103 140
MERCEDES-BENZ T2/LN1 Platform/Chassis 811 DK (670.341, 670.342) 1986 – 2011 3972 85 115
MERCEDES-BENZ T2/LN1 Platform/Chassis 809 DK (670.041, 670.042) 1986 – 2011 3972 66 90
MERCEDES-BENZ T2/LN1 Van 510 (667.061, 667.062) 1986 – 1994 2299 77 105
MERCEDES-BENZ T2/LN1 Van 709 D (669.061, 669.062, 669.063) 1986 – 1994 3972 66 90
MERCEDES-BENZ T2/LN1 Van 814 D (670.364, 670.365, 670.366) 1986 – 1994 3972 103 140
MERCEDES-BENZ T2/LN1 Van 811 D (670.362, 670.363) 1986 – 1994 3972 85 115
MERCEDES-BENZ T2/LN1 Van 809 D (670.061, 670.062, 670.063) 1986 – 1994 3972 66 90
MERCEDES-BENZ T2/LN1 Van 711 D (669.361, 669.362, 669.363) 1986 – 1994 3972 85 115
MERCEDES-BENZ T2/LN1 Van 609 D (668.061, 668.062, 668.063) 1986 – 1994 3972 66 90
MERCEDES-BENZ T2/LN1 Van 507 D (667.361, 667.362) 1986 – 1994 2399 53 72
MERCEDES-BENZ T2/LN1 Van 508 D (667.361, 667.362) 1986 – 1994 2299 58 79
MERCEDES-BENZ T2/LN1 Van 510 (667.061, 667.062) 1986 – 1994 2299 70 95
MERCEDES-BENZ T2/LN1 Van 609 D (668.061, 668.062, 668.063) 1986 – 1994 3972 63 86
MERCEDES-BENZ T2/LN1 Van 609 D (668.061, 668.062, 668.063) 1986 – 1994 3972 77 105
MERCEDES-BENZ T2/LN1 Van 709 D (669.061, 669.062, 669.063) 1986 – 1994 3972 63 86
MERCEDES-BENZ T2/LN1 Van 711 D (669.361, 669.362, 669.363) 1986 – 1994 3972 77 105
MERCEDES-BENZ T2/LN1 Van 714 D (669.361, 669.362, 669.363) 1986 – 1994 3972 103 140
MERCEDES-BENZ T2/LN1 Van 809 D (670.061, 670.062, 670.063) 1986 – 1994 3972 63 86
MERCEDES-BENZ T2/LN1 Van 811 D (670.362, 670.363) 1986 – 1994 3972 77 105
MERCEDES-BENZ T2/LN1 Van 814 D (670.364, 670.365, 670.366) 1986 – 1994 3972 100 136
MERCEDES-BENZ T2/LN1 Van 814 DA 4x4 (670.464, 670.465) 1986 – 1994 3972 100 136
MERCEDES-BENZ T2/LN1 Van 611 D (668.061, 668.062, 668.063) 1986 – 1994 3972 77 105
Talk to Expert
