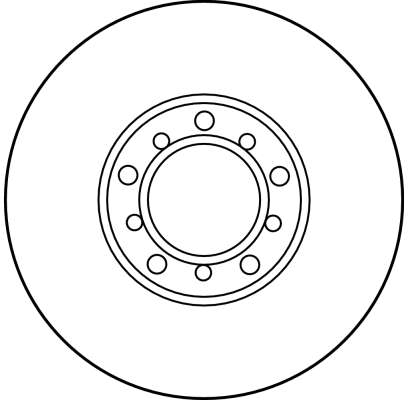

Brake Disc
Brake Disc 1 Brake Disc 2
Braking System

Brake Disc

Part No. DF1578 · SKU DF1578-TRW
Front Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)112
Brake Disc Thickness (mm)22
Brake Disc Type Vented
Centering Diameter (mm)80
Colour black
Height (mm)68.5
Minimum thickness (mm)19.4
Number of Holes 5
Outer Diameter (mm)278
Surface Painted
Thread Size 15
Bolt Hole Circle Ø [mm] 112, Brake Disc Thickness [mm] 22, Brake Disc Type Vented, Centering Diameter [mm] 80, Colour black, Height [mm] 68,5, Minimum thickness [mm] 19,4, Number of Holes 5, Outer Diameter [mm] 278, Surface Painted, Thread Size 15
Fits: MERCEDES-BENZ

Interchangeable Part Numbers

A.B.S.15743 A.P.20130 ABEXW0319 ACDelcoAC2278D APECDSK593 ATE24012201161 ATE24032201161 ATE24112201161 ATE422116 ATE522116 BENDIX333178 BENDIX561167B BOSCH 0 986 478061 BOSCH0986478061 BOSCH986478061 BRADI1.2805.2.5 Brake ENGINEERINGDI924652 BREMBO09.2465.20 DBA AustraliaDBA258 DELPHIBG2306 DELPHIBG306 DELPHIBS3443 FEBI BILSTEIN08546 FERODODDF143 FERODODDF1431 FERODODDF143X FIRST LINEFBD202 FREMAXBD0172 FTE9072398 GIRLING6015781 GRAFDF2886L HELLA 8DD 355100-401 HELLA8DD355100401 JURID561167J LEMFÖRDER 1106003 LEMFÖRDER1106003 LPRM2064V METELLI230086 MEYLE 015 5212003/PD MEYLE0155212003PD MEYLE 015 5212003 MEYLE0155212003 MGAD886 MINTEXMDC252 NationalNBD235 NK203322 NK313322 OBTEC A/S231084V OBTEC A/S815231084 OPTIMALBS-2740C OPTIMALBS-2740 PAGID52115 PEX140303 PILENGAV181 QH Benelux55046 QUINTON HAZELLBDC3443 QUINTON HAZELLBSF3443 REMSA627410 REMYRAD2342C ROULUNDS RUBBERD2278 sbs1815203322 SEBRO5046 SWAG10908546 TEXTAR92020400 TEXTAR98200020401 TRISCAN812023102 TRUSTINGDF370 VAICOV30-80007 VALEO186372 WOKINGP627410 ZIMMERMANN4001061 ZIMMERMANN400106100 ZIMMERMANN400106120 ZIMMERMANN400106150

OE Numbers — MERCEDES-BENZ 126 420 00

05

OE Numbers — MERCEDES-BENZ

1264200005 1264200172 1264210012 A1264200005 A1264200172 A1264210012

OE Numbers — MERCEDES-BENZ 126 420 01

72

OE Numbers — MERCEDES-BENZ 126 421 00

12
MakeModelType / Engine YearsCCkWHP
MERCEDES-BENZ 123 Coupe (C123) 230 CE (123.243) 1977 – 1985 2299 100 136
MERCEDES-BENZ 123 Coupe (C123) 230 C (123.043) 1977 – 1985 2307 80 109
MERCEDES-BENZ 123 Coupe (C123) 300 D (123.153) 1977 – 1985 2998 59 80
MERCEDES-BENZ 123 Coupe (C123) 280 C (123.050) 1977 – 1985 2746 115 156
MERCEDES-BENZ 123 Coupe (C123) 280 CE 1977 – 1985 2746 130 177
MERCEDES-BENZ 123 Coupe (C123) 280 CE 1977 – 1985 2746 136 185
MERCEDES-BENZ 123 Coupe (C123) 300 C Turbo-D (123.153) 1977 – 1985 2998 92 125
MERCEDES-BENZ 123 Coupe (C123) 300 CD (123.153) 1977 – 1985 2998 89 121
MERCEDES-BENZ 123 Coupe (C123) 280 CE 1977 – 1985 2778 104 141
MERCEDES-BENZ 123 Coupe (C123) 280 C 1977 – 1985 2746 105 143
MERCEDES-BENZ S-CLASS (W126) 500 SE, SEL Cat 1979 – 1991 4973 185 252
MERCEDES-BENZ S-CLASS (W126) 260 SE (126.020) 1979 – 1991 2599 122 166
MERCEDES-BENZ S-CLASS (W126) 3.8 1979 – 1991 3818 160 218
MERCEDES-BENZ S-CLASS (W126) 300 SD (126.120) 1979 – 1991 2998 92 125
MERCEDES-BENZ S-CLASS (W126) 300 SDL (126.125) 1979 – 1991 2996 107 146
MERCEDES-BENZ S-CLASS (W126) 380 SE, SEL (126.032) 1979 – 1991 3839 116 158
MERCEDES-BENZ S-CLASS (W126) 500 SEL (126.037) 1979 – 1991 4973 137 186
MERCEDES-BENZ S-CLASS (W126) 350 SD, SDL 1979 – 1991 3449 110 150
MERCEDES-BENZ S-CLASS (W126) 300 SDL (126.125) 1979 – 1991 2996 110 150
MERCEDES-BENZ S-CLASS (W126) 380 SE, SEL (126.032, 126.033) 1979 – 1991 3839 145 197
MERCEDES-BENZ S-CLASS (W126) 420 SE, SEL 1979 – 1991 4196 150 204
MERCEDES-BENZ S-CLASS (W126) 420 SE, SEL (126.034) 1979 – 1991 4196 160 218
MERCEDES-BENZ S-CLASS (W126) 560 SE, SEL (126.038, 126.039) 1979 – 1991 5547 178 242
MERCEDES-BENZ S-CLASS (W126) 500 SE, SEL 1979 – 1991 4973 195 265
MERCEDES-BENZ S-CLASS (W126) 500 SE, SEL 1979 – 1991 4973 185 252
MERCEDES-BENZ S-CLASS (W126) 500 SE, SEL (126.036) 1979 – 1991 4973 180 245
MERCEDES-BENZ S-CLASS (W126) 500 SE, SEL (126.036) 1979 – 1991 4973 177 241
MERCEDES-BENZ S-CLASS (W126) 500 SE, SEL (126.036) 1979 – 1991 4973 170 231
MERCEDES-BENZ S-CLASS (W126) 500 SE, SEL (126.036) 1979 – 1991 4973 164 223
MERCEDES-BENZ S-CLASS (W126) 420 SE, SEL 1979 – 1991 4196 170 231
MERCEDES-BENZ S-CLASS (W126) 420 SE, SEL 1979 – 1991 4196 165 224
MERCEDES-BENZ S-CLASS (W126) 560 SE, SEL 1979 – 1991 5547 205 279
MERCEDES-BENZ S-CLASS (W126) 420 SE, SEL (126.034, 126.035) 1979 – 1991 4196 150 204
MERCEDES-BENZ S-CLASS (W126) 380 SE, SEL (126.032) 1979 – 1991 3839 150 204
MERCEDES-BENZ S-CLASS (W126) 380 SE, SEL (126.032, 126.033) 1979 – 1991 3818 160 218
MERCEDES-BENZ S-CLASS (W126) 300 SE, SEL (126.024, 126.025) 1979 – 1991 2960 138 188
MERCEDES-BENZ S-CLASS (W126) 300 SE, SEL (126.024, 126.025) 1979 – 1991 2960 132 180
MERCEDES-BENZ S-CLASS (W126) 280 SE, SEL (126.022, 126.023) 1979 – 1991 2746 136 185
MERCEDES-BENZ S-CLASS (W126) 280 S (126.021) 1979 – 1991 2746 115 156
MERCEDES-BENZ S-CLASS (W126) 260 SE (126.020) 1979 – 1991 2599 118 160
MERCEDES-BENZ S-CLASS (W126) 560 SE, SEL 1979 – 1991 5547 220 300
MERCEDES-BENZ S-CLASS (W126) 560 SE, SEL (126.038) 1979 – 1991 5547 200 272
MERCEDES-BENZ SL (R107) 380 SL (107.045) 1971 – 1989 3839 150 204
MERCEDES-BENZ SL (R107) 280 SL (107.042) 1971 – 1989 2746 130 177
MERCEDES-BENZ SL (R107) 350 SL (107.043) 1971 – 1989 3499 147 200
MERCEDES-BENZ SL (R107) 560 SL 1971 – 1989 5547 178 242
MERCEDES-BENZ SL (R107) 280 SL (107.042) 1971 – 1989 2746 136 185
MERCEDES-BENZ SL (R107) 300 SL (107.041) 1971 – 1989 2960 132 180
MERCEDES-BENZ SL (R107) 450 SL (107.044) 1971 – 1989 4520 134 182
MERCEDES-BENZ SL (R107) 300 SL (107.041) 1971 – 1989 2960 138 188
MERCEDES-BENZ SL (R107) 560 SL (107.048) 1971 – 1989 5547 169 230
MERCEDES-BENZ SL (R107) 350 SL (107.043) 1971 – 1989 3499 143 195
MERCEDES-BENZ SL (R107) 450 SL (107.044) 1971 – 1989 4520 119 162
MERCEDES-BENZ SL (R107) 380 SL (107.045) 1971 – 1989 3839 116 158
MERCEDES-BENZ SL (R107) 380 SL (107.045) 1971 – 1989 3818 160 218
MERCEDES-BENZ SL (R107) 420 SL (107.047) 1971 – 1989 4196 150 204
MERCEDES-BENZ SL (R107) 450 SL (107.044) 1971 – 1989 4520 160 218
MERCEDES-BENZ SL (R107) 500 SL (107.046) 1971 – 1989 4973 180 245
MERCEDES-BENZ SL (R107) 500 SL (107.046) 1971 – 1989 4973 177 241
MERCEDES-BENZ SL (R107) 500 SL (107.046) 1971 – 1989 4973 170 231
MERCEDES-BENZ SL (R107) 500 SL (107.046) 1971 – 1989 4973 164 223
MERCEDES-BENZ SL (R107) 450 SL (107.044) 1971 – 1989 4520 165 224
MERCEDES-BENZ SL (R107) 420 SL (107.047) 1971 – 1989 4196 160 218
MERCEDES-BENZ SL Coupe (C107) 450 SLC 5.0 (107.026) 1972 – 1985 4973 177 241
MERCEDES-BENZ SL Coupe (C107) 450 SLC (107.024) 1972 – 1985 4520 119 162
MERCEDES-BENZ SL Coupe (C107) 450 SLC (107.024) 1972 – 1985 4520 165 225
MERCEDES-BENZ SL Coupe (C107) 380 SLC (107.025) 1972 – 1985 3818 160 218
MERCEDES-BENZ SL Coupe (C107) 350 SLC (107.023) 1972 – 1985 3499 147 200
MERCEDES-BENZ SL Coupe (C107) 350 SLC (107.023) 1972 – 1985 3499 143 195
MERCEDES-BENZ SL Coupe (C107) 450 SL 1972 – 1985 4520 134 182
MERCEDES-BENZ SL Coupe (C107) 280 SLC (107.022) 1972 – 1985 2746 136 185
MERCEDES-BENZ SL Coupe (C107) 280 SLC (107.022) 1972 – 1985 2746 130 177
MERCEDES-BENZ SL Coupe (C107) 380 SLC 1972 – 1985 3839 116 158
MERCEDES-BENZ SL Coupe (C107) 450 SLC (107.024) 1972 – 1985 4520 160 218
