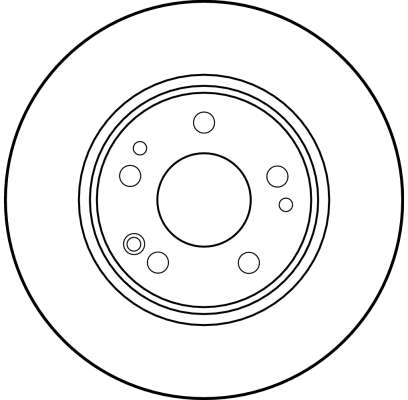

Brake Disc
Braking System

Brake Disc

Part No. DF1581 · SKU DF1581-TRW
Front Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)112
Brake Disc Thickness (mm)12
Brake Disc Type solid
Centering Diameter (mm)67
Height (mm)43.5
Machining High-carbon
Minimum thickness (mm)10
Number of Holes 5
Outer Diameter (mm)284
Test Mark E1 90R-02 C0190/0525
Thread Size 15,6
Bolt Hole Circle Ø [mm] 112, Brake Disc Thickness [mm] 12, Brake Disc Type solid, Centering Diameter [mm] 67, Height [mm] 43,5, Machining High-carbon, Minimum thickness [mm] 10, Number of Holes 5, Outer Diameter [mm] 284, Test Mark E1 90R-02 C0190/0525, Thread Size 15,6
Fits: MERCEDES-BENZ

Interchangeable Part Numbers

A.P.10278E ABEXW0415 ACDelcoAC2052D APECDSK502 ATE24011201171 ATE24111201171 ATE412117 BENDIX338651 BENDIX561332B BENDIX561332BC BORG & BECKBBD4830 BOSCH0 986 478 187 BOSCH986478187 BRADI1.2808.1.4 BREMBO08.4750.10 BREMBO08.4750.30 BREMBO08475034 CAR142465 CARHPD465 DELPHIBG2314 DELPHIBG314 DELPHIBS3446 FEBI BILSTEIN08542 FERODODDF124 FIRST LINEFBD204 FTE9072043 FTE9082060 GIRLING6015813 GRAFDF29124 HELLA8DD 355 100-921 HELLA8DD 355 100-931 JURID561332J JURID561332JC LEMFÖRDER11057 03 LPRM2121P LPRM2121PR MAGNETI MARELLI353612808140 MAGNETI MARELLI360704020500 MAGNETI MARELLI431602041350 MAPCO15734 METELLI23-0124C METELLI230124 MEYLE015 521 2007 MEYLE0155212007PD MGAD924 MINTEXMDC362 NationalNBD076 NK203309 NK313309 OBTEC A/S231086 OBTEC A/S815231086 OPTIMALBS-3110C OPTIMALBS-3110 PAGID52107 PAGID52107PRO PEX140307 PILENGA5188 QH Benelux55050 QUINTON HAZELLBDC3446 QUINTON HAZELLBSF3446 REMSA631100 REMYRAD1764C ROULUNDS RUBBERD2052 SEBRO5050 ST-TEMPLIN0311020280 ST-TEMPLIN0311020285 SWAG10908542 TEXTAR92031800 TEXTAR92031803 TEXTAR98200031801 TRISCAN812023113 TRUCKTEC AUTOMOTIVE0235016 TRUSTINGDF010 VALEO186182 WOKINGP631100 ZIMMERMANN4001406 ZIMMERMANN400140600 ZIMMERMANN400140620 ZIMMERMANN400140650 ZIMMERMANN400140652

OE Numbers — MERCEDES-BENZ

124 421 13 12 124421131264 A1244211312 A124421131264
MakeModelType / Engine YearsCCkWHP
MERCEDES-BENZ 124 Coupe (C124) 300 CE-24 (124.051) 1987 – 1993 2960 170 231
MERCEDES-BENZ 124 Coupe (C124) 200 CE (124.041) 1987 – 1993 1996 90 122
MERCEDES-BENZ 124 Coupe (C124) 200 CE (124.041) 1987 – 1993 1996 87 118
MERCEDES-BENZ 124 Coupe (C124) 200 CE (124.040) 1987 – 1993 1998 100 136
MERCEDES-BENZ 124 Coupe (C124) 230 CE (124.043) 1987 – 1993 2298 97 132
MERCEDES-BENZ 124 Coupe (C124) 230 CE (124.043) 1987 – 1993 2298 100 136
MERCEDES-BENZ 124 Coupe (C124) 300 CE 1987 – 1993 2960 138 188
MERCEDES-BENZ 124 Coupe (C124) 300 CE-24 (124.051) 1987 – 1993 2960 162 220
MERCEDES-BENZ 124 Coupe (C124) 230 CE Cat (124.043) 1987 – 1993 2298 97 132
MERCEDES-BENZ 124 Coupe (C124) 300 CE (124.050) 1987 – 1993 2960 132 180
MERCEDES-BENZ 124 Coupe (C124) 320 CE (124.052) 1987 – 1993 3199 162 220
MERCEDES-BENZ 124 Coupe (C124) 220 CE (124.042) 1987 – 1993 2199 110 150
MERCEDES-BENZ 124 Saloon (W124) 200 (124.020) 1984 – 1993 1996 75 102
MERCEDES-BENZ 124 Saloon (W124) 200 (124.020) 1984 – 1993 1996 80 109
MERCEDES-BENZ 124 Saloon (W124) 200 E (124.021) 1984 – 1993 1996 87 118
MERCEDES-BENZ 124 Saloon (W124) 200 E (124.021) 1984 – 1993 1996 90 122
MERCEDES-BENZ 124 Saloon (W124) 230 E (124.023) 1984 – 1993 2298 97 132
MERCEDES-BENZ 124 Saloon (W124) 230 E (124.023) 1984 – 1993 2298 100 136
MERCEDES-BENZ 124 Saloon (W124) 260 E 4-matic (124.226) 1984 – 1993 2597 118 160
MERCEDES-BENZ 124 Saloon (W124) 260 E (124.026) 1984 – 1993 2597 118 160
MERCEDES-BENZ 124 Saloon (W124) 260 E (124.026) 1984 – 1993 2597 122 166
MERCEDES-BENZ 124 Saloon (W124) 260 E 4-matic (124.226) 1984 – 1993 2597 122 166
MERCEDES-BENZ 124 Saloon (W124) 300 E 1984 – 1993 2960 138 188
MERCEDES-BENZ 124 Saloon (W124) 300 E (124.030) 1984 – 1993 2960 132 180
MERCEDES-BENZ 124 Saloon (W124) 300 E 4-matic (124.230) 1984 – 1993 2960 132 180
MERCEDES-BENZ 124 Saloon (W124) 300 E 4-matic 1984 – 1993 2960 138 188
MERCEDES-BENZ 124 Saloon (W124) 300 E 1984 – 1993 2960 138 188
MERCEDES-BENZ 124 Saloon (W124) 200 D (124.120) 1984 – 1993 1997 53 72
MERCEDES-BENZ 124 Saloon (W124) 200 D (124.120) 1984 – 1993 1997 55 75
MERCEDES-BENZ 124 Saloon (W124) 250 D (124.125) 1984 – 1993 2497 66 90
MERCEDES-BENZ 124 Saloon (W124) 250 D (124.125) 1984 – 1993 2497 69 94
MERCEDES-BENZ 124 Saloon (W124) 250 Turbo-D (124.128) 1984 – 1993 2497 93 126
MERCEDES-BENZ 124 Saloon (W124) 300 D (124.130) 1984 – 1993 2996 80 109
MERCEDES-BENZ 124 Saloon (W124) 300 D 4-matic (124.330) 1984 – 1993 2996 80 109
MERCEDES-BENZ 124 Saloon (W124) 300 D (124.130) 1984 – 1993 2996 81 110
MERCEDES-BENZ 124 Saloon (W124) 300 D 4-matic (124.330) 1984 – 1993 2996 83 113
MERCEDES-BENZ 124 Saloon (W124) 300 D (124.130) 1984 – 1993 2996 83 113
MERCEDES-BENZ 124 Saloon (W124) 300 Turbo-D 4-matic (124.333) 1984 – 1993 2996 105 143
MERCEDES-BENZ 124 Saloon (W124) 300 Turbo-D 4-matic (124.333) 1984 – 1993 2996 108 147
MERCEDES-BENZ 124 Saloon (W124) 300 Turbo-D (124.133) 1984 – 1993 2996 108 147
MERCEDES-BENZ 124 Saloon (W124) 200 1984 – 1993 1996 77 105
MERCEDES-BENZ 124 Saloon (W124) 300 E-24 (124.031) 1984 – 1993 2960 162 220
MERCEDES-BENZ 124 Saloon (W124) 500 E (124.036) 1984 – 1993 4973 240 326
MERCEDES-BENZ 124 Saloon (W124) 200 E (124.019) 1984 – 1993 1998 100 136
MERCEDES-BENZ 124 Saloon (W124) 220 E (124.022) 1984 – 1993 2199 110 150
MERCEDES-BENZ 124 Saloon (W124) 280 E (124.028) 1984 – 1993 2799 145 197
MERCEDES-BENZ 124 Saloon (W124) 400 E 4.2 (124.034) 1984 – 1993 4196 205 279
MERCEDES-BENZ 124 Saloon (W124) 320 E (124.032) 1984 – 1993 3199 162 220
MERCEDES-BENZ 124 Saloon (W124) 300 Turbo-D (124.133) 1984 – 1993 2996 105 143
MERCEDES-BENZ 124 Saloon (W124) 230 E Cat (124.023) 1984 – 1993 2298 97 132
MERCEDES-BENZ 124 Saloon (W124) 300 E-24 AMG (124.031) 1984 – 1993 3428 200 272
MERCEDES-BENZ 124 Saloon (W124) 300 E-24 (124.031) 1984 – 1993 2960 170 231
MERCEDES-BENZ 124 Saloon (W124) 300 D 1984 – 1993 2497 90 121
MERCEDES-BENZ 124 Saloon (W124) 500 E 1984 – 1993 4973 235 320
MERCEDES-BENZ 124 Saloon (W124) 200 E 1984 – 1993 1997 77 105
MERCEDES-BENZ 124 T-Model (S124) 200 T 1985 – 1993 1997 77 105
MERCEDES-BENZ 124 T-Model (S124) 300 TD T 1985 – 1993 2996 100 136
MERCEDES-BENZ 124 T-Model (S124) 250 TD Turbo (124.188) 1985 – 1993 2497 93 126
MERCEDES-BENZ 124 T-Model (S124) 300 TE-24 (124.091) 1985 – 1993 2960 170 231
MERCEDES-BENZ 124 T-Model (S124) 230 TE (124.083) 1985 – 1993 2298 97 132
MERCEDES-BENZ 124 T-Model (S124) 200 T (124.080) 1985 – 1993 1996 77 105
MERCEDES-BENZ 124 T-Model (S124) 200 T (124.080) 1985 – 1993 1996 80 109
MERCEDES-BENZ 124 T-Model (S124) 200 TE (124.081) 1985 – 1993 1996 87 118
MERCEDES-BENZ 124 T-Model (S124) 200 TE 1985 – 1993 1996 90 122
MERCEDES-BENZ 124 T-Model (S124) 230 TE Cat (124.083) 1985 – 1993 2298 97 132
MERCEDES-BENZ 124 T-Model (S124) 230 TE (124.083) 1985 – 1993 2298 100 136
MERCEDES-BENZ 124 T-Model (S124) 300 TE 4-matic (124.290) 1985 – 1993 2960 132 180
MERCEDES-BENZ 124 T-Model (S124) 300 TE (124.090) 1985 – 1993 2960 132 180
MERCEDES-BENZ 124 T-Model (S124) 300 TE (124.090) 1985 – 1993 2960 138 188
MERCEDES-BENZ 124 T-Model (S124) 300 TE 4-matic (124.290) 1985 – 1993 2960 138 188
MERCEDES-BENZ 124 T-Model (S124) 200 T D (124.180) 1985 – 1993 1997 53 72
MERCEDES-BENZ 124 T-Model (S124) 200 T D (124.180) 1985 – 1993 1997 55 75
MERCEDES-BENZ 124 T-Model (S124) 250 T D (124.185) 1985 – 1993 2497 66 90
MERCEDES-BENZ 124 T-Model (S124) 250 T D (124.185) 1985 – 1993 2497 69 94
MERCEDES-BENZ 124 T-Model (S124) 300 T D (124.190) 1985 – 1993 2996 80 109
MERCEDES-BENZ 124 T-Model (S124) 300 T D (124.190) 1985 – 1993 2996 81 110
MERCEDES-BENZ 124 T-Model (S124) 300 T D (124.190) 1985 – 1993 2996 83 113
MERCEDES-BENZ 124 T-Model (S124) 300 T Turbo-D 4-matic (124.393) 1985 – 1993 2996 105 143
MERCEDES-BENZ 124 T-Model (S124) 300 T Turbo-D 4-matic (124.393) 1985 – 1993 2996 108 147
MERCEDES-BENZ 124 T-Model (S124) 300 TE-24 (124.091) 1985 – 1993 2960 162 220
MERCEDES-BENZ 124 T-Model (S124) 260 TE FGST. 1985 – 1993 2597 118 160
MERCEDES-BENZ 124 T-Model (S124) 260 TE FGST. 1985 – 1993 2597 122 166
MERCEDES-BENZ 124 T-Model (S124) 220 TE (124.082) 1985 – 1993 2199 110 150
MERCEDES-BENZ 124 T-Model (S124) 300 T Turbo-D 1985 – 1993 2996 105 143
MERCEDES-BENZ 124 T-Model (S124) 300 T Turbo-D (124.193) 1985 – 1993 2996 108 147
MERCEDES-BENZ 124 T-Model (S124) 320 TE (124.092) 1985 – 1993 3199 162 220
MERCEDES-BENZ 124 T-Model (S124) 280 TE (124.088) 1985 – 1993 2799 145 197
MERCEDES-BENZ 124 T-Model (S124) 200 TE (124.079) 1985 – 1993 1998 100 136
MERCEDES-BENZ E-CLASS (W124) E 250 D (124.126, 124.129) 1993 – 1996 2497 83 113
MERCEDES-BENZ E-CLASS (W124) E 300 D (124.131) 1993 – 1996 2996 100 136
MERCEDES-BENZ E-CLASS (W124) E 200 (124.019) 1993 – 1996 1998 100 136
MERCEDES-BENZ E-CLASS (W124) E 220 (124.022) 1993 – 1996 2199 110 150
MERCEDES-BENZ E-CLASS (W124) E 280 (124.029) 1993 – 1996 2799 142 193
MERCEDES-BENZ E-CLASS (W124) E 280 (124.028) 1993 – 1996 2799 145 197
MERCEDES-BENZ E-CLASS (W124) E 320 (124.032) 1993 – 1996 3199 162 220
MERCEDES-BENZ E-CLASS (W124) E 420 (124.034) 1993 – 1996 4196 205 279
MERCEDES-BENZ E-CLASS (W124) E 500 (124.036) 1993 – 1996 4973 235 320
MERCEDES-BENZ E-CLASS (W124) E 200 D (124.120) 1993 – 1996 1997 55 75
MERCEDES-BENZ E-CLASS (W124) E 250 Turbo-D (124.128) 1993 – 1996 2497 93 126
MERCEDES-BENZ E-CLASS (W124) E 300 Turbo-D 4-matic (124.333) 1993 – 1996 2996 108 147
MERCEDES-BENZ E-CLASS (W124) E 300 Turbo-D (124.133) 1993 – 1996 2996 108 147
MERCEDES-BENZ E-CLASS (W124) E 300 4-matic (124.230) 1993 – 1996 2960 132 180
MERCEDES-BENZ E-CLASS (W124) E 60 AMG (124.036) 1993 – 1996 5956 280 381
MERCEDES-BENZ E-CLASS (W124) E 420 (124.034) 1993 – 1996 4196 125 170
MERCEDES-BENZ E-CLASS (W124) E 500 (124.036) 1993 – 1996 4973 240 326
MERCEDES-BENZ E-CLASS Coupe (C124) E 200 (124.040) 1993 – 1997 1998 100 136
MERCEDES-BENZ E-CLASS Coupe (C124) E 220 (124.042) 1993 – 1997 2199 110 150
MERCEDES-BENZ E-CLASS Coupe (C124) E 320 (124.052) 1993 – 1997 3199 162 220
MERCEDES-BENZ E-CLASS Coupe (C124) E 36 AMG (124.052) 1993 – 1997 3606 200 272
MERCEDES-BENZ E-CLASS T-Model (S124) E 300 TD (124.191) 1993 – 1996 2996 100 136
MERCEDES-BENZ E-CLASS T-Model (S124) E 200 T (124.079) 1993 – 1996 1998 100 136
MERCEDES-BENZ E-CLASS T-Model (S124) E 220 T (124.082) 1993 – 1996 2199 110 150
MERCEDES-BENZ E-CLASS T-Model (S124) E 280 T (124.088) 1993 – 1996 2799 145 197
MERCEDES-BENZ E-CLASS T-Model (S124) E 320 T (124.092) 1993 – 1996 3199 162 220
MERCEDES-BENZ E-CLASS T-Model (S124) E 250 TD (124.186) 1993 – 1996 2497 83 113
MERCEDES-BENZ E-CLASS T-Model (S124) E 280 T (124.088) 1993 – 1996 2799 142 193
MERCEDES-BENZ E-CLASS T-Model (S124) E 36 T AMG (124.092) 1993 – 1996 3606 200 272
MERCEDES-BENZ E-CLASS T-Model (S124) E 300 T Turbo-D (124.193) 1993 – 1996 2996 108 147
MERCEDES-BENZ E-CLASS T-Model (S124) E 300 T 4-matic (124.290) 1993 – 1996 2960 132 180
MERCEDES-BENZ E-CLASS T-Model (S124) E 300 T Turbo-D 4-matic (124.393) 1993 – 1996 2996 108 147
MERCEDES-BENZ E-CLASS T-Model (S124) E 300 TD (124.190) 1993 – 1996 2996 80 109
MERCEDES-BENZ E-CLASS T-Model (S124) E 250 Turbo D 1993 – 1996 2497 93 126
