Braking System

Brake Disc

Name: Brake Disc
Brand: TRW
SKU: DF1584-TRW
Availability: OutOfStock

Part No. DF1584 · SKU DF1584-TRW

Front Axle

Price on request

Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

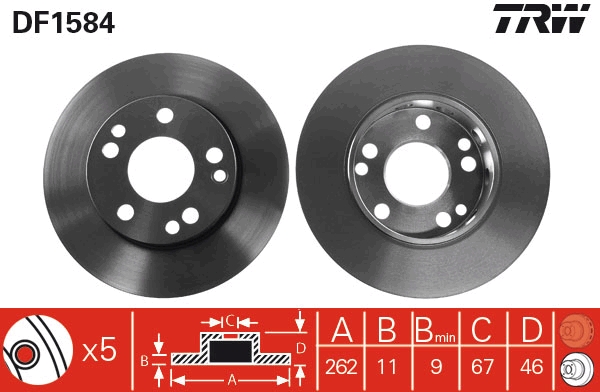

Specifications

Bolt Hole Circle Ø (mm)	112
Brake Disc Thickness (mm)	11
Brake Disc Type solid
Centering Diameter (mm)	67
Colour black
Height (mm)	43.5
Machining High-carbon
Minimum thickness (mm)	9
Number of Holes 5
Outer Diameter (mm)	262
Surface Painted
Test Mark E1 90R-02 C0190/0554
Thread Size 15,6

Bolt Hole Circle Ø [mm] 112, Brake Disc Thickness [mm] 11, Brake Disc Type solid, Centering Diameter [mm] 67, Colour black, Height [mm] 43,5, Machining High-carbon, Minimum thickness [mm] 9, Number of Holes 5, Outer Diameter [mm] 262, Surface Painted, Test Mark E1 90R-02 C0190/0554, Thread Size 15,6
Fits: MERCEDES-BENZ

Interchangeable Part Numbers

A.B.S.08.2950.24 A.B.S.15778 A.P.10196E ABEXW0407 ACDelcoAC2050D APECDSK545 ATE24011101371 ATE24111101371 ATE411137 BENDIX338649 BENDIX561330B BENDIX561330BC BLUE PRINTADU174377 BORG & BECKBBD4826 BOSCH 0 986 478114 BOSCH0986478114 BOSCH986478114 BRADI1.2806.1.4 Brake ENGINEERINGDI951031 BREMBO08.2950.20 CAR142463 CARHPD463 DBA AustraliaDBA260 DELPHIBG2221 DELPHIBG2288 DELPHIBG288 DELPHIBS3444 FEBI BILSTEIN08543 FERODODDF053 FERODODDF0531 FERODODDF053C FERODODDF053C1 FERODODDF053X FERODODRF053S FIRST LINEFBD199 FREMAXBD-6460 FTE9072022 FTE9082083 FTEBS3444B GIRLING6015843 GRAFDF29103 HELLA 8DD 355100-731 HELLA8DD355100731 HELLA 8DD 355100-741 HELLA8DD355100741 HELLA 8DD 355125-671 HELLA8DD355125671 JURID561330J JURID561330JC LEMFÖRDER 1106903 LEMFÖRDER1106903 LPRM2111P LPRM2111PR MAGNETI MARELLI353612806140 MAGNETI MARELLI431602041330 MAPCO15735 METELLI230103 MEYLE 015 5212023 MEYLE0155212023 MEYLE0155212023PD MGAD903 MINTEXMDC351 NationalNBD077 NK203306 NK313306 OBTEC A/S231085 OPTIMALBS-2210C OPTIMALBS-2210 PAGID52102 PAGID52102PRO PEX140304 PILENGA5186 QH Benelux55047 QUINTON HAZELL828400 QUINTON HAZELLBDC3444 QUINTON HAZELLBSF3444 REMSA622100 REMYRAD1623C ROULUNDS RUBBERD2050 sbs1815203306 sbs1815313306 SEBRO5047 ST-TEMPLIN0311020290 ST-TEMPLIN0311020295 SWAG10908543 TEXTAR92027400 TEXTAR92027403 TEXTAR98200027401 TRISCAN 812023114C TRISCAN812023114C TRISCAN812023114 TRUCKTEC AUTOMOTIVE0235032 TRUSTINGDF019 VAICOV30-40005 VALEO186037 VALEO186176 WOKINGP622100 ZIMMERMANN4001402 ZIMMERMANN400140200 ZIMMERMANN400140250 ZIMMERMANN400140252

OE Numbers — MERCEDES-BENZ 201 421 08

OE Numbers — MERCEDES-BENZ

2014210812 2014211212 A2014210812 A2014211212

Make	Model	Type / Engine	Years	CC	kW	HP
MERCEDES-BENZ	190 (W201)	E 2.6	1982 – 1993	2597	122	166
MERCEDES-BENZ	190 (W201)	E 2.5-16 (201.035)	1982 – 1993	2498	143	194
MERCEDES-BENZ	190 (W201)	190 D (201.122)	1982 – 1993	2197	54	72
MERCEDES-BENZ	190 (W201)	2.6	1982 – 1993	2599	118	160
MERCEDES-BENZ	190 (W201)	2.3 E	1982 – 1993	2299	100	136
MERCEDES-BENZ	190 (W201)	2.3	1982 – 1993	2299	97	132
MERCEDES-BENZ	190 (W201)	E 2.0	1982 – 1993	1996	93	126
MERCEDES-BENZ	190 (W201)	E 2.6 (201.029)	1982 – 1993	2597	118	160
MERCEDES-BENZ	190 (W201)	E 2.5-16 Evolution II	1982 – 1993	2498	173	235
MERCEDES-BENZ	190 (W201)	Turbo-D 2.5 (201.128)	1982 – 1993	2497	93	126
MERCEDES-BENZ	190 (W201)	Turbo-D 2.5 (201.128)	1982 – 1993	2497	90	122
MERCEDES-BENZ	190 (W201)	D 2.5 (201.126)	1982 – 1993	2497	69	94
MERCEDES-BENZ	190 (W201)	D 2.5 (201.126)	1982 – 1993	2497	66	90
MERCEDES-BENZ	190 (W201)	D 2.0 (201.122)	1982 – 1993	1997	55	75
MERCEDES-BENZ	190 (W201)	D 2.0 (201.122)	1982 – 1993	1997	53	72
MERCEDES-BENZ	190 (W201)	E 1.8 (201.018)	1982 – 1993	1797	80	109
MERCEDES-BENZ	190 (W201)	E 2.5-16 (201.035)	1982 – 1993	2498	150	204
MERCEDES-BENZ	190 (W201)	E 2.5-16 Evolution (201.036)	1982 – 1993	2498	143	194
MERCEDES-BENZ	190 (W201)	E 2.3 (201.028)	1982 – 1993	2298	100	136
MERCEDES-BENZ	190 (W201)	E 2.3	1982 – 1993	2298	97	132
MERCEDES-BENZ	190 (W201)	E 2.3-16 (201.034)	1982 – 1993	2298	136	185
MERCEDES-BENZ	190 (W201)	E 2.3-16	1982 – 1993	2298	130	177
MERCEDES-BENZ	190 (W201)	E 2.3-16	1982 – 1993	2298	125	170
MERCEDES-BENZ	190 (W201)	E 2.0 (201.024)	1982 – 1993	1996	90	122
MERCEDES-BENZ	190 (W201)	E 2.0	1982 – 1993	1996	87	118
MERCEDES-BENZ	190 (W201)	2.0 (201.023)	1982 – 1993	1996	77	105
MERCEDES-BENZ	190 (W201)	2.0 (201.023)	1982 – 1993	1996	75	102
MERCEDES-BENZ	190 (W201)	E 2.0 (201.024)	1982 – 1993	1996	85	116
MERCEDES-BENZ	190 (W201)	E 2.0 (201.024)	1982 – 1993	1996	83	113
MERCEDES-BENZ	190 (W201)	2.0 (201.022)	1982 – 1993	1996	66	90
