Brake Disc
Brake Disc 1 Brake Disc 2
Braking System

Brake Disc

Part No. DF1586 · SKU DF1586-TRW
Front Axle
₱29,600.00
In stock — available to order
Genuine & OEM parts Nationwide delivery Easy returns

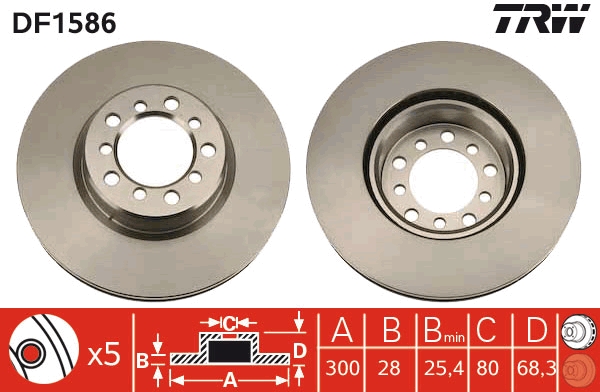

Specifications

Bolt Hole Circle Ø (mm)112
Brake Disc Thickness (mm)28
Brake Disc Type Vented
Centering Diameter (mm)80
Colour black
Height (mm)68.2
Minimum thickness (mm)25.4
Number of Holes 5
Outer Diameter (mm)300
Surface Painted
Test Mark E1 90R-02 C0176/0492
Thread Size 15
Bolt Hole Circle Ø [mm] 112, Brake Disc Thickness [mm] 28, Brake Disc Type Vented, Centering Diameter [mm] 80, Colour black, Height [mm] 68,2, Minimum thickness [mm] 25,4, Number of Holes 5, Outer Diameter [mm] 300, Surface Painted, Test Mark E1 90R-02 C0176/0492, Thread Size 15
Fits: MERCEDES-BENZ

Supplier Cross-References

DELPHIBG2372 FERODODDF185 ATE24012801021 JURID561453J BREMBO9492810 TRWDF1586

Interchangeable Part Numbers

A.B.S.15794 ABEXW0418 ACDelcoAC2279D APECDSK905 ATE24032801021 ATE24112801021 ATE428102 ATE528102 BENDIX345017 BENDIX561453B BENDIX561453BC BORG & BECKBBD4919 BOSCH0 986 478 197 BOSCH986478197 BRADI1.2811.2.E Brake ENGINEERINGDI951400 BREMBO09.4928.10 CAR142467 CARHPD467 DBA AustraliaDBA262 DELPHIBG372 DELPHIBS3507 FEBI BILSTEIN06857 FERODODDF1851 FIRST LINEFBD382 FTE9071232 GIRLING6015861 HELLA8DD 355 100-981 JURID561453JC LEMFÖRDER11063 03 LPRM2191V LPRM2191VR MAGNETI MARELLI351281120500 METELLI230520 METZGER24186 MEYLE015 521 2014 MGAD1345 MINTEXMDC450 NationalNBD285 NK203324 NK313324 OBTEC A/S232306V OPTIMALBS-3450C OPTIMALBS-3450 PAGID52116 PEX140311 PILENGAV185 QH Benelux55033 QUINTON HAZELLBDC3507 QUINTON HAZELLBSF3507 REMSA634510 ROULUNDS RUBBERD2279 ST-TEMPLIN0311020360 ST-TEMPLIN0311020365 SWAG10906857 TEXTAR92032500 TEXTAR98200032501 TRISCAN812023105 TRUCKTEC AUTOMOTIVE0235019 TRUSTINGDF279 VALEO186459 WOKINGP634510 ZIMMERMANN4001408 ZIMMERMANN400140800 ZIMMERMANN400140850 ZIMMERMANN400140852

OE Numbers — MERCEDES-BENZ

126 421 04 12 126 421 05 12 A1264210412 A1264210512 A126421051205
MakeModelType / Engine YearsCCkWHP
MERCEDES-BENZ S-CLASS (W126) 260 SE (126.020) 1979 – 1991 2599 122 166
MERCEDES-BENZ S-CLASS (W126) 420 SE, SEL 1979 – 1991 4196 150 204
MERCEDES-BENZ S-CLASS (W126) 380 SE, SEL (126.032, 126.033) 1979 – 1991 3839 145 197
MERCEDES-BENZ S-CLASS (W126) 300 SDL (126.125) 1979 – 1991 2996 110 150
MERCEDES-BENZ S-CLASS (W126) 350 SD, SDL 1979 – 1991 3449 110 150
MERCEDES-BENZ S-CLASS (W126) 500 SEL (126.037) 1979 – 1991 4973 137 186
MERCEDES-BENZ S-CLASS (W126) 380 SE, SEL (126.032) 1979 – 1991 3839 116 158
MERCEDES-BENZ S-CLASS (W126) 300 SDL (126.125) 1979 – 1991 2996 107 146
MERCEDES-BENZ S-CLASS (W126) 300 SD (126.120) 1979 – 1991 2998 92 125
MERCEDES-BENZ S-CLASS (W126) 3.8 1979 – 1991 3818 160 218
MERCEDES-BENZ S-CLASS (W126) 500 SE, SEL Cat 1979 – 1991 4973 185 252
MERCEDES-BENZ S-CLASS (W126) 560 SE, SEL 1979 – 1991 5547 220 300
MERCEDES-BENZ S-CLASS (W126) 560 SE, SEL 1979 – 1991 5547 205 279
MERCEDES-BENZ S-CLASS (W126) 560 SE, SEL (126.038) 1979 – 1991 5547 200 272
MERCEDES-BENZ S-CLASS (W126) 560 SE, SEL (126.038, 126.039) 1979 – 1991 5547 178 242
MERCEDES-BENZ S-CLASS (W126) 500 SE, SEL 1979 – 1991 4973 195 265
MERCEDES-BENZ S-CLASS (W126) 500 SE, SEL (126.036) 1979 – 1991 4973 180 245
MERCEDES-BENZ S-CLASS (W126) 260 SE (126.020) 1979 – 1991 2599 118 160
MERCEDES-BENZ S-CLASS (W126) 280 S (126.021) 1979 – 1991 2746 115 156
MERCEDES-BENZ S-CLASS (W126) 280 SE, SEL (126.022, 126.023) 1979 – 1991 2746 136 185
MERCEDES-BENZ S-CLASS (W126) 300 SE, SEL (126.024, 126.025) 1979 – 1991 2960 132 180
MERCEDES-BENZ S-CLASS (W126) 300 SE, SEL (126.024, 126.025) 1979 – 1991 2960 138 188
MERCEDES-BENZ S-CLASS (W126) 380 SE, SEL (126.032, 126.033) 1979 – 1991 3818 160 218
MERCEDES-BENZ S-CLASS (W126) 380 SE, SEL (126.032) 1979 – 1991 3839 150 204
MERCEDES-BENZ S-CLASS (W126) 420 SE, SEL (126.034, 126.035) 1979 – 1991 4196 150 204
MERCEDES-BENZ S-CLASS (W126) 420 SE, SEL (126.034) 1979 – 1991 4196 160 218
MERCEDES-BENZ S-CLASS (W126) 500 SE, SEL 1979 – 1991 4973 185 252
MERCEDES-BENZ S-CLASS (W126) 500 SE, SEL (126.036) 1979 – 1991 4973 177 241
MERCEDES-BENZ S-CLASS (W126) 500 SE, SEL (126.036) 1979 – 1991 4973 170 231
MERCEDES-BENZ S-CLASS (W126) 500 SE, SEL (126.036) 1979 – 1991 4973 164 223
MERCEDES-BENZ S-CLASS (W126) 420 SE, SEL 1979 – 1991 4196 170 231
MERCEDES-BENZ S-CLASS (W126) 420 SE, SEL 1979 – 1991 4196 165 224
MERCEDES-BENZ S-CLASS Coupe (C126) 420 SEC (126.046) 1980 – 1991 4196 150 204
MERCEDES-BENZ S-CLASS Coupe (C126) 380 SEC (126.043) 1980 – 1991 3839 145 197
MERCEDES-BENZ S-CLASS Coupe (C126) 420 SEC (126.046) 1980 – 1991 4196 170 231
MERCEDES-BENZ S-CLASS Coupe (C126) 500 SEC (126.044) 1980 – 1991 4973 177 241
MERCEDES-BENZ S-CLASS Coupe (C126) 500 SEC (126.044) 1980 – 1991 4973 137 186
MERCEDES-BENZ S-CLASS Coupe (C126) 380 SEC 1980 – 1991 3839 116 158
MERCEDES-BENZ S-CLASS Coupe (C126) 380 SEC (126.043) 1980 – 1991 3839 150 204
MERCEDES-BENZ S-CLASS Coupe (C126) 420 SEC (126.046) 1980 – 1991 4196 165 224
MERCEDES-BENZ S-CLASS Coupe (C126) 420 SEC (126.046) 1980 – 1991 4196 160 218
MERCEDES-BENZ S-CLASS Coupe (C126) 500 SEC (126.044) 1980 – 1991 4973 195 265
MERCEDES-BENZ S-CLASS Coupe (C126) 500 SEC Cat 1980 – 1991 4973 185 252
MERCEDES-BENZ S-CLASS Coupe (C126) 560 SEC (126.045) 1980 – 1991 5547 220 300
MERCEDES-BENZ S-CLASS Coupe (C126) 560 SEC (126.045) 1980 – 1991 5547 205 279
MERCEDES-BENZ S-CLASS Coupe (C126) 560 SEC (126.045) 1980 – 1991 5547 200 272
MERCEDES-BENZ S-CLASS Coupe (C126) 560 SEC (126.045) 1980 – 1991 5547 178 242
MERCEDES-BENZ S-CLASS Coupe (C126) 500 SEC (126.044) 1980 – 1991 4973 185 252
MERCEDES-BENZ S-CLASS Coupe (C126) 500 SEC (126.044) 1980 – 1991 4973 180 245
MERCEDES-BENZ S-CLASS Coupe (C126) 500 SEC (126.044) 1980 – 1991 4973 170 231
MERCEDES-BENZ S-CLASS Coupe (C126) 500 SEC (126.044) 1980 – 1991 4973 164 223
