TRW
Braking System
Brake Disc
Part No.
DF1590
·
SKU
DF1590-TRW
Rear Axle
₱15,500.00
In stock — available to order
Genuine & OEM parts
Nationwide delivery
Easy returns

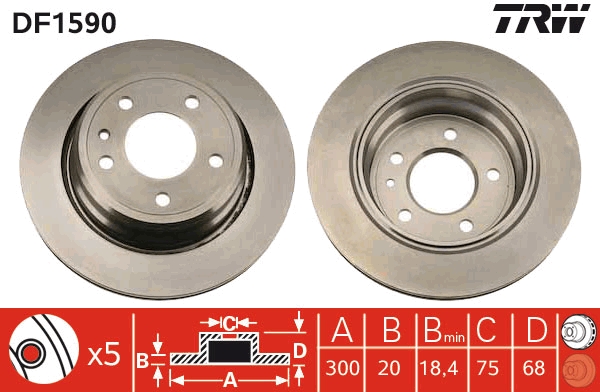

Specifications
| Bolt Hole Circle Ø (mm) | 120 |
| Brake Disc Thickness (mm) | 20 |
| Brake Disc Type Vented |
| Centering Diameter (mm) | 75 |
| Height (mm) | 68 |
| Minimum thickness (mm) | 18.4 |
| Number of Holes 5 |
| Outer Diameter (mm) | 300 |
| Thread Size 15 |
Bolt Hole Circle Ø [mm] 120, Brake Disc Thickness [mm] 20, Brake Disc Type Vented, Centering Diameter [mm] 75, Height [mm] 68, Minimum thickness [mm] 18,4, Number of Holes 5, Outer Diameter [mm] 300, Thread Size 15
Fits: BMW
Supplier Cross-References
DELPHIBG2436
TEXTAR92042700
FERODODDF520
ATE24012001131
BREMBO9550610
TRWDF1590
Interchangeable Part Numbers
A.B.S.15873
ABEXW0694
APECDSK930
ATE24112001131
ATE420113
BENDIX345095
BENDIX561525B
BOSCH0 986 478 320
BOSCH986478320
BRADI1.0624.6.4
BREMBO09.5506.10
CAR142105
CARHPD105
DBA AustraliaDBA2852
DBA AustraliaDBA969
DELPHIBG436
FEBI BILSTEIN01721
FERODODDF5201
FERODODRF520
FIRST LINEFBD342
FTEBS3847
GIRLING6015902
HELLA8DD 355 101-771
JURID561525J
LEMFÖRDER10411 01
LEMFÖRDER10411 02
LPRB2251V
MAGNETI MARELLI353610624640
MEYLE315 523 3008/PD
MEYLE3155230038PD
MINTEXMDC478
NationalNBD394
NK201530
NK311530
OBTEC A/S131346V
PAGID50425
PEX140099
PILENGAV118
QH Benelux52497
QUINTON HAZELLBDC3847
QUINTON HAZELLBSF3847
REMYRAD2706C
ROULUNDS RUBBERD2401
SEBRO2461
SWAG20901721
TEXTAR98200042701
TRISCAN812011124
TRUCKTEC AUTOMOTIVE0834040
TRUSTINGDF728
VAICOV20-80036
VALEO186666
ZIMMERMANN1501265
ZIMMERMANN150126500
ZIMMERMANN150126550
OE Numbers — BMW
1 155 501
1 162 967
1 163 138
34 21 1 155 501
34 21 1 162 967
34 21 1 163 138
| Make | Model | Type / Engine |
Years | CC | kW | HP |
| BMW |
7 (E32) |
730 i, iL |
1985 – 1994 |
2986 |
145 |
197 |
| BMW |
7 (E32) |
730 i, iL |
1985 – 1994 |
2986 |
138 |
188 |
| BMW |
7 (E32) |
730 i, iL V8 |
1985 – 1994 |
2997 |
160 |
218 |
| BMW |
7 (E32) |
735 i, iL |
1985 – 1994 |
3430 |
155 |
211 |
| BMW |
7 (E32) |
735 i, iL |
1985 – 1994 |
3430 |
162 |
220 |
| BMW |
7 (E32) |
740 i, iL V8 |
1985 – 1994 |
3982 |
210 |
286 |
| BMW |
7 (E32) |
750 i, iL V12 |
1985 – 1994 |
4988 |
220 |
300 |
Brake Disc
