Braking System

Brake Disc

Name: Brake Disc
Brand: TRW
SKU: DF1592-TRW
Availability: OutOfStock

Part No. DF1592 · SKU DF1592-TRW

Rear Axle

Price on request

Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

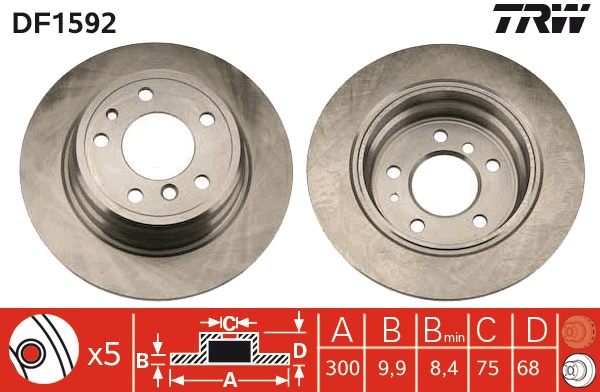

Specifications

Bolt Hole Circle Ø (mm)	120
Brake Disc Thickness (mm)	9.9
Brake Disc Type solid
Centering Diameter (mm)	75
Height (mm)	68
Minimum thickness (mm)	8.4
Number of Holes 5
Outer Diameter (mm)	300
Thread Size 15

Bolt Hole Circle Ø [mm] 120, Brake Disc Thickness [mm] 9,9, Brake Disc Type solid, Centering Diameter [mm] 75, Height [mm] 68, Minimum thickness [mm] 8,4, Number of Holes 5, Outer Diameter [mm] 300, Thread Size 15
Fits: BMW

Interchangeable Part Numbers

A.B.S.15872 ABEXW0593 ACDelcoAC2340D APECDSK923 ATE24011001181 ATE24111001181 ATE410118 BENDIX561524B BOSCH0 986 478 323 BOSCH986478323 BRADI1.0623.5.4 BREMBO08.5440.10 DBA AustraliaDBA977 DELPHIBG2437 DELPHIBG437 DELPHIBS3720 FEBI BILSTEIN01723 FERODODDF326 FERODODDF3261 FIRST LINEFBD341 GIRLING6015924 HELLA8DD 355 101-761 JURID561524J LEMFÖRDER13217 03 LPRB2221P MAGNETI MARELLI353610623540 MEYLE315 523 3006 MINTEXMDC475 NationalNBD326 NK201522 NK311522 OBTEC A/S131342 PAGID50414 PEX140098 PILENGA5126 QH Benelux52496 QUINTON HAZELLBDC3720 QUINTON HAZELLBSF3720 ROULUNDS RUBBERD2340 SEBRO2459 SWAG20 90 1723 TEXTAR92042600 TEXTAR98200042601 TRISCAN812011123 TRUSTINGDF146 VAICOV20-40012 ZIMMERMANN1501262 ZIMMERMANN150126200

OE Numbers — BMW

1 157 781 1 165 258 1 165 259 34 21 1 157 781 34 21 1 165 258 34 21 1 165 259

Make	Model	Type / Engine	Years	CC	kW	HP
BMW	7 (E32)	730 i, iL	1985 – 1994	2986	145	197
BMW	7 (E32)	730 i, iL	1985 – 1994	2986	138	188
BMW	7 (E32)	730 i, iL V8	1985 – 1994	2997	160	218
BMW	7 (E32)	735 i, iL	1985 – 1994	3430	155	211
BMW	7 (E32)	735 i, iL	1985 – 1994	3430	162	220
BMW	7 (E32)	740 i, iL V8	1985 – 1994	3982	210	286
BMW	7 (E32)	750 i, iL V12	1985 – 1994	4988	220	300
