Brake Disc
Brake Disc 1 Brake Disc 2
Braking System

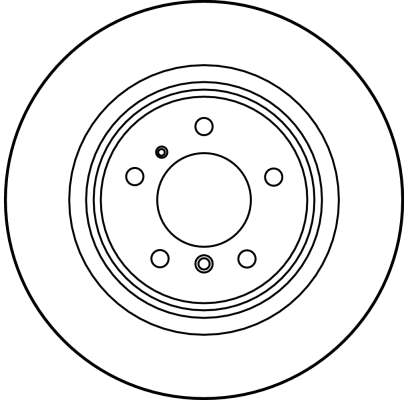

Brake Disc

Part No. DF1597 · SKU DF1597-TRW
Rear Axle
₱16,900.00
In stock — available to order
Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)120
Brake Disc Thickness (mm)12
Brake Disc Type solid
Centering Diameter (mm)75
Colour black
Height (mm)61
Machining High-carbon
Minimum thickness (mm)10.4
Number of Holes 5
Outer Diameter (mm)324
Surface Painted
Test Mark E1 90R-02 C0204/0664
Thread Size 15
Bolt Hole Circle Ø [mm] 120, Brake Disc Thickness [mm] 12, Brake Disc Type solid, Centering Diameter [mm] 75, Colour black, Height [mm] 61, Machining High-carbon, Minimum thickness [mm] 10,4, Number of Holes 5, Outer Diameter [mm] 324, Surface Painted, Test Mark E1 90R-02 C0204/0664, Thread Size 15
Fits: BMW

Supplier Cross-References

TEXTAR92058400 ZIMMERMANN150127200 FERODODDF553 JURID561554J BREMBO8558010 TRWDF1597

Interchangeable Part Numbers

A.B.S.16103 ABEXW0602 ACDelcoAC2338D APECDSK2010 ATE24011201321 ATE24111201321 ATE412132 BENDIX345206 BENDIX561554B BENDIX561554BC BORG & BECKBBD5151 BOSCH0 986 478 095 BOSCH986478095 BOSCH F026 A01 021 BOSCHF026A01021 BRADI1.0635.5.4 BRADI1062954 Brake ENGINEERINGDI955077 BREMBO08.5580.10 BREMBO08558011 CAR142097 CARHPD097 DBA AustraliaDBA991 DELPHIBG2670 DELPHIBG2671 DELPHIBS4514 FEBI BILSTEIN10755 FERODODDF5531 FERODODRF553 FIRST LINEFBD468 FTE9072407 FTEBS4751 HELLA8DD 355 102-881 HELLA8DD 355 122-062 HELLA8DD 355 127-111 JURID561554JC LEMFÖRDER17000 02 LEMFÖRDER27222 01 LPRB2401P MAGNETI MARELLI353610635540 MAPCO15653 METELLI230400 MEYLE315 523 3009/PD MEYLE315 523 3009 MEYLE3155230039 MEYLE3155230039PD MGAD1322 MINTEXMDC834 NationalNBD410 NK201533 NK311533 OBTEC A/S131357 PAGID50416 PEX140107 QH Benelux57378 QUINTON HAZELLBDC4751 QUINTON HAZELLBSF4751 REMSA651000 ROULUNDS RUBBERD2338 SEBRO2448 ST-TEMPLIN0311011790 ST-TEMPLIN0311011795 SWAG20910755 TEXTAR92058403 TEXTAR92058405 TEXTAR98200058401 TRISCAN812011128 TRUCKTEC AUTOMOTIVE0834043 TRUSTINGDF222 VALEO186631 WOKINGP651000 ZIMMERMANN1501272 ZIMMERMANN150127220 ZIMMERMANN150127250 ZIMMERMANN150127252

OE Numbers — BMW

1 157 953 1 159 900 34 21 1 157 953 34 21 1 159 900 34 21 6 757 748 34 21 6 757 749 6 757 748 6 757 749
MakeModelType / Engine YearsCCkWHP
BMW 7 (E38) 728 i, iL 1994 – 2001 2793 142 193
BMW 7 (E38) 750 i, iL 1994 – 2001 5379 243 330
BMW 7 (E38) 735 i, iL 1994 – 2001 3498 175 238
BMW 7 (E38) 730 d 1994 – 2001 2926 142 193
BMW 7 (E38) 740 d 1994 – 2001 3901 180 245
BMW 7 (E38) 730 d 1994 – 2001 2926 135 184
BMW 7 (E38) 725 tds 1994 – 2001 2497 105 143
BMW 7 (E38) 735 i, iL 1994 – 2001 3498 173 235
BMW 7 (E38) 740 i, iL 1994 – 2001 4398 210 286
BMW 7 (E38) 750 i, iL 1994 – 2001 5379 240 326
BMW 7 (E38) 740 i, iL 1994 – 2001 3982 210 286
BMW 7 (E38) 730 i, iL 1994 – 2001 2997 160 218
BMW 7 (E38) 730 i, iL 1994 – 2001 2997 155 211
BMW 8 (E31) 850 i, Ci 1990 – 1999 4988 220 300
BMW 8 (E31) 840 i 1990 – 1999 3982 210 286
BMW 8 (E31) 840 Ci 1990 – 1999 4398 210 286
BMW 8 (E31) 850 CSi 1990 – 1999 5576 280 380
BMW 8 (E31) 850 Ci 1990 – 1999 5379 240 326
BMW 8 (E31) 850 CSi 1990 – 1999 5576 277 377
