SP Auto Part – OEM & Aftermarket European Auto Parts in the Philippines
TRW
Braking System
Brake Disc
Part No.
DF1601
·
SKU
DF1601-TRW
Price on request
Currently out of stock
Get notified when this part is back in stock:
Genuine & OEM parts
Nationwide delivery
Easy returns

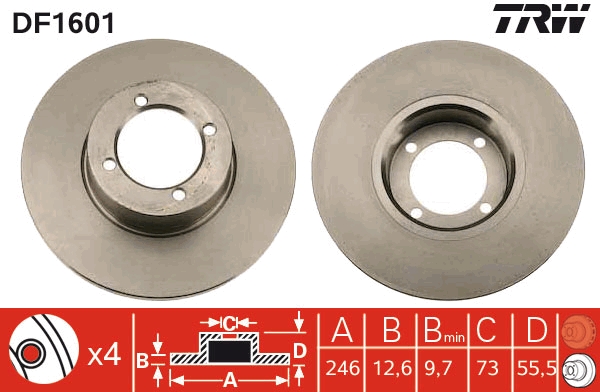

Specifications
| Bolt Hole Circle Ø (mm) | 92 |
| Brake Disc Thickness (mm) | 12.6 |
| Brake Disc Type solid |
| Centering Diameter (mm) | 73 |
| Height (mm) | 55.5 |
| Minimum thickness (mm) | 9.7 |
| Number of Holes 4 |
| Outer Diameter (mm) | 246 |
| Thread Size 10,6 |
Bolt Hole Circle Ø [mm] 92, Brake Disc Thickness [mm] 12,6, Brake Disc Type solid, Centering Diameter [mm] 73, Height [mm] 55,5, Minimum thickness [mm] 9,7, Number of Holes 4, Outer Diameter [mm] 246, Thread Size 10,6
Interchangeable Part Numbers
A.B.S.15750
ABEXW0233
APECDSK210
ATE24011301251
ATE413125
BENDIX333105
BENDIX561097B
BOSCH 0 986 478082
BOSCH0986478082
BOSCH986478082
BRADI1.3402.1.4
Brake ENGINEERINGDI829531
BREMBO08.2953.20
CAR142501
CARHPD501
DELPHIBG2069
DELPHIBG69
DELPHIBS3154
FERODODDF054
FERODODDF0541
FERODODDF6971
FIRST LINEFBD268
FTEBS3205
FTEBS4640
GIRLING6016013
GRAFDF2822
HELLA 8DD 355100-141
HELLA8DD355100141
JURID561097J
LEMFÖRDER 1466201
LEMFÖRDER1466201
LPRO1021P
MAGNETI MARELLI353613402140
MAGNETI MARELLI431602041200
METELLI230022
METZGER10012
MGAD822
MINTEXMDC18
NationalNBD031
NK209903
NK319903
OBTEC A/S251104
OBTEC A/S815251104
PAGID52402
PEX140416
QH Benelux55141
QH Benelux55152
QUINTON HAZELLBDC3154
QUINTON HAZELLBDC3205
QUINTON HAZELLBSF3154
QUINTON HAZELLBSF3205
REMSA612700
ROULUNDS RUBBERD2273
SEBRO5141
SWAG40902494
TEXTAR92010700
TEXTAR98200010701
TRISCAN812024103
TRUSTINGDF024
VALEO186193
WOKINGP612700
ZIMMERMANN430145100
ZIMMERMANN4301454
ZIMMERMANN430145400
ZIMMERMANN430145450
OE Numbers — OPEL 5 61
914
OE Numbers — OPEL
561914
569015
569026
90008001
93182295
OE Numbers — OPEL 5 69
015
026
OE Numbers — VAUXHALL
9280751
