TRW
Braking System
Brake Disc
Part No.
DF1648
·
SKU
DF1648-TRW
Price on request
Currently out of stock
Get notified when this part is back in stock:
Genuine & OEM parts
Nationwide delivery
Easy returns

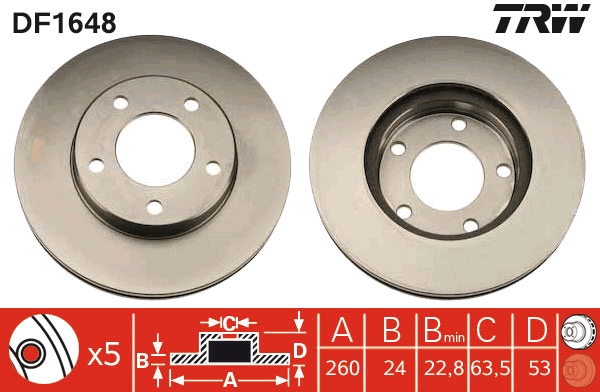

Specifications
| Bolt Hole Circle Ø (mm) | 112 |
| Brake Disc Thickness (mm) | 24 |
| Brake Disc Type Vented |
| Centering Diameter (mm) | 63.5 |
| Height (mm) | 53 |
| Minimum thickness (mm) | 22.8 |
| Number of Holes 5 |
| Outer Diameter (mm) | 260 |
| Thread Size 13,75 |
Bolt Hole Circle Ø [mm] 112, Brake Disc Thickness [mm] 24, Brake Disc Type Vented, Centering Diameter [mm] 63,5, Height [mm] 53, Minimum thickness [mm] 22,8, Number of Holes 5, Outer Diameter [mm] 260, Thread Size 13,75
Interchangeable Part Numbers
A.B.S.15788
A.P.24595
ABEXW0653
ACDelcoAC2395D
ACDelcoAC2426D
APECDSK756
ATE24012401091
ATE24012401211
ATE424109
BENDIX561356B
BENDIX561357B
BOSCH 0 986 478195
BOSCH0986478195
BRADI1.1716.2.4
Brake ENGINEERINGDI955740
BREMBO09.4866.10
BREMBO09.6879.20
BREMBO09687976
CAR142230
CARHPD230
DELPHIBG2331
DELPHIBG2346
DELPHIBG331
DELPHIBS3517
FEBI BILSTEIN05655
FERODODDF180
FERODODDF292
FERODODDF2921
GIRLING6016481
GRAFDF29120
HELLA 8DD 355103-801
HELLA8DD355103801
JURID561356J
JURID561357J
LEMFÖRDER 1682502
LEMFÖRDER1682502
LPRF1171V
LPRF1231V
MAGNETI MARELLI351171620600
MAGNETI MARELLI353611747240
MAGNETI MARELLI431602041400
MAPCO15722
METELLI230120
MGAD1253
MGAD920
MINTEXMDC371
NationalNBD026
NK202521
NK202524
NK312521
OBTEC A/S171723V
OBTEC A/S815171059
PAGID51017
PAGID51018
PEX140177
PEX140178
PEX140205
PILENGAV071
PILENGAV276
QH Benelux53381
QH Benelux57610
QUINTON HAZELLBDC3516
QUINTON HAZELLBDC3517
QUINTON HAZELLBDC5156
QUINTON HAZELLBSF3517
QUINTON HAZELLBSF5156
ROULUNDS RUBBERD2395
ROULUNDS RUBBERD2426
SWAG50905655
TEXTAR92067700
TEXTAR98200032301
TRISCAN812016104
TRUSTINGDF249
VALEO186164
VALEO186165
ZIMMERMANN250133700
ZIMMERMANN250133750
OE Numbers — FORD
1630011
6133551
6193964
