TRW
Braking System
Brake Disc
Part No.
DF1694
·
SKU
DF1694-TRW
Price on request
Currently out of stock
Get notified when this part is back in stock:
Genuine & OEM parts
Nationwide delivery
Easy returns

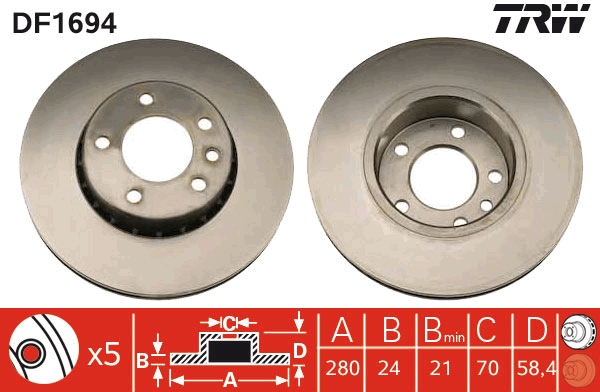

Specifications
| Bolt Hole Circle Ø (mm) | 110 |
| Brake Disc Thickness (mm) | 24 |
| Brake Disc Type Vented |
| Centering Diameter (mm) | 70 |
| Height (mm) | 58.4 |
| Minimum thickness (mm) | 21 |
| Number of Holes 5 |
| Outer Diameter (mm) | 280 |
| Thread Size 14,5 |
Bolt Hole Circle Ø [mm] 110, Brake Disc Thickness [mm] 24, Brake Disc Type Vented, Centering Diameter [mm] 70, Height [mm] 58,4, Minimum thickness [mm] 21, Number of Holes 5, Outer Diameter [mm] 280, Thread Size 14,5
Interchangeable Part Numbers
A.B.S.15879
ABEXW0493
ACDelcoAC2269D
APECDSK513
ATE24012401101
ATE24032401101
ATE424110
ATE524110
BENDIX338797
BENDIX561405B
BOSCH 0 986 478326
BOSCH0986478326
BOSCH986478326
BRADI 1.3414.2.ENLA
BRADI134142ENLA
BRADI134142E
BREMBO09.5220.10
DELPHIBG2497
DELPHIBG497
DELPHIBS3682
FERODODDF038
FERODODDF217
FERODODDF2171
FIRST LINEFBD360
GIRLING6016941
HELLA 8DD 355101-511
HELLA8DD355101511
JURID561405J
LEMFÖRDER 1474101
LEMFÖRDER1474101
LEMFÖRDER 1474102
LEMFÖRDER1474102
LPRO1191V
MAGNETI MARELLI353612201140
MAPCO15676
MAPCO156762
MINTEXMDC970
NationalNBD135
NK203612
NK313612
OBTEC A/S252505V
PAGID52416
PEX140427
PILENGAV064
QH Benelux55159
QUINTON HAZELLBDC3282
QUINTON HAZELLBDC3682
QUINTON HAZELLBSF3682
REMSA630010
TEXTAR92039300
TEXTAR98200039301
TRISCAN812024114
TRUSTINGDF373
VALEO186625
WOKINGP630010
ZIMMERMANN4301462
ZIMMERMANN430146200
ZIMMERMANN430146250
OE Numbers — OPEL 5 69
038
OE Numbers — OPEL
569038
90223918
90271133
