SP Auto Part – OEM & Aftermarket European Auto Parts in the Philippines
TRW
Braking System

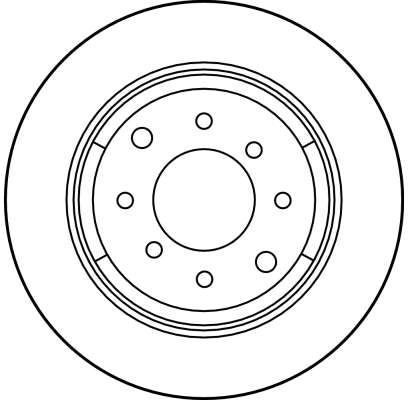

Brake Disc
Part No.
DF1701
·
SKU
DF1701-TRW
Price on request
Currently out of stock
Get notified when this part is back in stock:
Genuine & OEM parts
Nationwide delivery
Easy returns
Specifications
| Bolt Hole Circle Ø (mm) | 108 |
| Brake Disc Thickness (mm) | 9 |
| Brake Disc Type solid |
| Centering Diameter (mm) | 70 |
| Height (mm) | 65 |
| Minimum thickness (mm) | 7.5 |
| Number of Holes 4 |
| Outer Diameter (mm) | 267 |
| Thread Size 13 |
Bolt Hole Circle Ø [mm] 108, Brake Disc Thickness [mm] 9, Brake Disc Type solid, Centering Diameter [mm] 70, Height [mm] 65, Minimum thickness [mm] 7,5, Number of Holes 4, Outer Diameter [mm] 267, Thread Size 13
Interchangeable Part Numbers
ABEXW0109
ATE24010901011
ATE409101
BENDIX333007
BENDIX561007B
BOSCH0 986 478 646
BOSCH986478646
BRADI1.0001.5.4
BREMBO08.1365.10
DELPHIBG2317
DELPHIBG317
FERODODDF002
FERODODDF0021
HELLA8DD 355 103-251
JURID561007J
METZGER14013S
PAGID50101
QUINTON HAZELLBDC1005
TEXTAR92062300
TEXTAR98200062301
TRISCAN812012119
TRUSTINGDF045
OE Numbers — ALFA ROMEO
0060516948
105482621500
60516948
