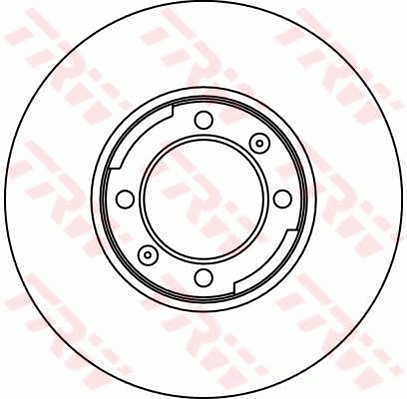

Brake Disc
Brake Disc 1 Brake Disc 2
Braking System

Brake Disc

Part No. DF1704 · SKU DF1704-TRW
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)108
Brake Disc Thickness (mm)13
Brake Disc Type solid
Centering Diameter (mm)82
Height (mm)68
Minimum thickness (mm)10.7
Number of Holes 4
Outer Diameter (mm)272
Thread Size M12 x 1.50
Bolt Hole Circle Ø [mm] 108, Brake Disc Thickness [mm] 13, Brake Disc Type solid, Centering Diameter [mm] 82, Height [mm] 68, Minimum thickness [mm] 10,7, Number of Holes 4, Outer Diameter [mm] 272, Thread Size M12 x 1.50

Interchangeable Part Numbers

ABEXW0558 ATE24011301021 ATE24011301022 ATE413102 BENDIX333083 BENDIX561077B BOSCH0 986 478 402 BOSCH986478402 BRADI1.0006.1.5 BREMBO08.2565.30 DELPHIBG2316 DELPHIBG316 FERODODDF530 FERODODDF5301 HELLA8DD 355 103-241 JURID561077J METZGER14056 PAGID50105 TEXTAR92062200 TEXTAR98200062201 TRISCAN812012120

OE Numbers — ALFA ROMEO

0060516371 105122201400 60516371
