TRW
Braking System

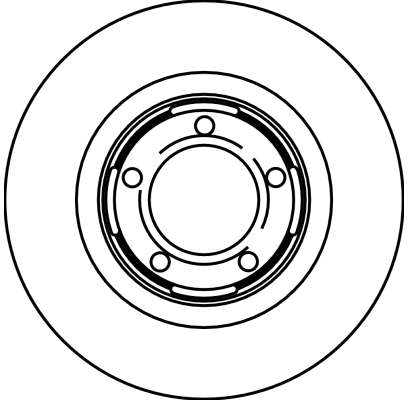

Brake Disc
Part No.
DF1733
·
SKU
DF1733-TRW
Price on request
Currently out of stock
Get notified when this part is back in stock:
Genuine & OEM parts
Nationwide delivery
Easy returns
Specifications
| Bolt Hole Circle Ø (mm) | 98 |
| Brake Disc Thickness (mm) | 13 |
| Brake Disc Type solid |
| Centering Diameter (mm) | 72 |
| Minimum thickness (mm) | 9 |
| Number of Holes 5 |
| Outer Diameter (mm) | 261 |
| Thread Size M12 x 1.50 |
Bolt Hole Circle Ø [mm] 98, Brake Disc Thickness [mm] 13, Brake Disc Type solid, Centering Diameter [mm] 72, Minimum thickness [mm] 9, Number of Holes 5, Outer Diameter [mm] 261, Thread Size M12 x 1.50
Interchangeable Part Numbers
A.B.S.15041
ABEXW0430
ATE24011301761
ATE24011301762
ATE413176
BENDIX338642
BENDIX561323B
BOSCH 0 986 478766
BOSCH0986478766
BRADI1.0007.1.5
BREMBO08.4070.20
DELPHIBG2352
DELPHIBG352
FERODODDF102
GIRLING6017333
GRAFDF29160
JURID561323J
METELLI230160
NK201015
OBTEC A/S303021
PAGID50115
PEX140004
QUINTON HAZELLBDC3430
REMSA621900
SEBRO2226
TEXTAR98200033501
ZIMMERMANN1102204
OE Numbers — ALFA ROMEO
0060533595
0060703115
162062201400
60533595
