TRW
Braking System

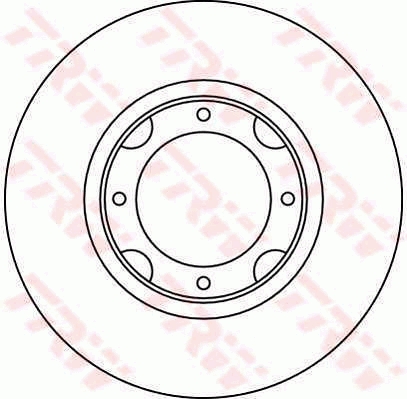

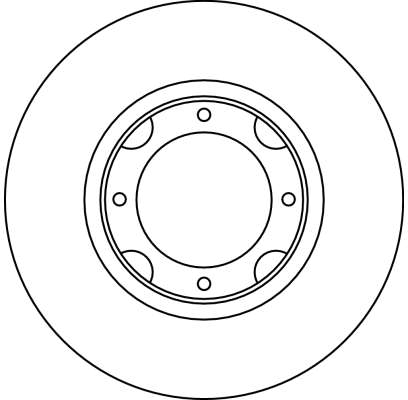

Brake Disc
Part No.
DF1909
·
SKU
DF1909-TRW
Price on request
Currently out of stock
Get notified when this part is back in stock:
Genuine & OEM parts
Nationwide delivery
Easy returns
Specifications
| Bolt Hole Circle Ø (mm) | 96 |
| Brake Disc Thickness (mm) | 10 |
| Brake Disc Type solid |
| Centering Diameter (mm) | 76 |
| Height (mm) | 30 |
| Minimum thickness (mm) | 9 |
| Number of Holes 4 |
| Outer Diameter (mm) | 226 |
| Thread Size M10 x 1.25 |
Bolt Hole Circle Ø [mm] 96, Brake Disc Thickness [mm] 10, Brake Disc Type solid, Centering Diameter [mm] 76, Height [mm] 30, Minimum thickness [mm] 9, Number of Holes 4, Outer Diameter [mm] 226, Thread Size M10 x 1.25
Interchangeable Part Numbers
A.B.S.15545
ABEXW0569
ATE24011001721
BENDIX333163
BENDIX561154B
BRADI1.5203.1.4
BREMBO08.4414.10
DELPHIBS3345
FERODODDF536
FERODODDF5361
GRAFDF29172
JURID561154J
NIPPARTSJ3302004
OBTEC A/S815331258
PAGID53606
QUINTON HAZELLBDC3345
SEBRO5610
TEXTAR98200041001
ZIMMERMANN5902056
OE Numbers — TOYOTA
43512-16010
43512-16020
