TRW
Braking System

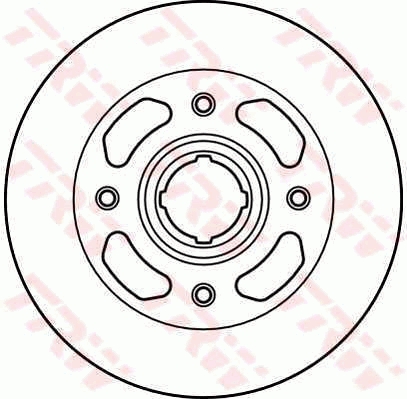

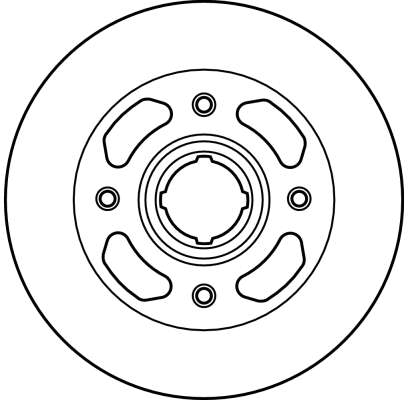

Brake Disc
Part No.
DF1986
·
SKU
DF1986-TRW
Price on request
Currently out of stock
Get notified when this part is back in stock:
Genuine & OEM parts
Nationwide delivery
Easy returns
Specifications
| Bolt Hole Circle Ø (mm) | 110 |
| Brake Disc Thickness (mm) | 13 |
| Brake Disc Type solid |
| Height (mm) | 96 |
| Minimum thickness (mm) | 12 |
| Number of Holes 4 |
| Outer Diameter (mm) | 230 |
| Thread Size M12 x 1.50 |
Bolt Hole Circle Ø [mm] 110, Brake Disc Thickness [mm] 13, Brake Disc Type solid, Height [mm] 96, Minimum thickness [mm] 12, Number of Holes 4, Outer Diameter [mm] 230, Thread Size M12 x 1.50
Interchangeable Part Numbers
ABEXW0560
ATE24011301751
ATE413175
BENDIX345016
BENDIX561452B
BOSCH0 986 478 804
BOSCH986478804
BRADI1.2617.1.4
BREMBO08.3064.10
DELPHIBG2415
DELPHIBG415
FERODODDF438
FIRST LINEFBD083
JURID561452J
NIPPARTSJ3303012
NK203206
OBTEC A/S221295
QUINTON HAZELLBDC3586
REMSA637900
TEXTAR98200031701
TRISCAN812050104
OE Numbers — MAZDA
8569-33-251 A
856933251
