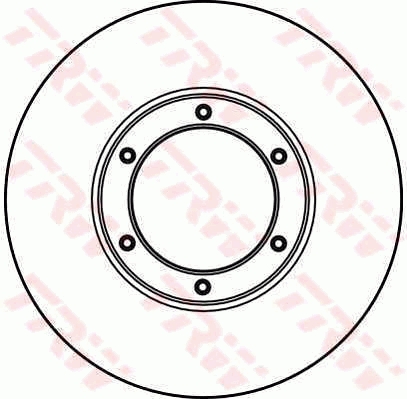

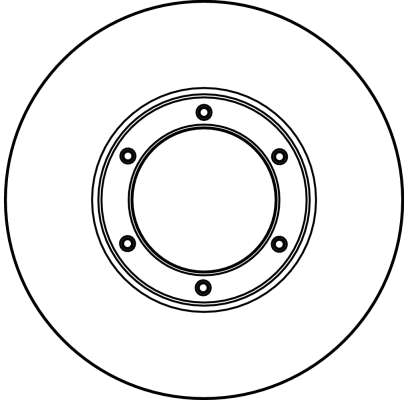

Specifications
| Bolt Hole Circle Ø (mm) | 124 |
| Brake Disc Thickness (mm) | 16 |
| Brake Disc Type solid | |
| Centering Diameter (mm) | 104 |
| Height (mm) | 38 |
| Minimum thickness (mm) | 14.5 |
| Number of Holes 6 | |
| Outer Diameter (mm) | 262 |
| Thread Size M10 x 1.00 | |
Bolt Hole Circle Ø [mm] 124, Brake Disc Thickness [mm] 16, Brake Disc Type solid, Centering Diameter [mm] 104, Height [mm] 38, Minimum thickness [mm] 14,5, Number of Holes 6, Outer Diameter [mm] 262, Thread Size M10 x 1.00
