Brake Disc

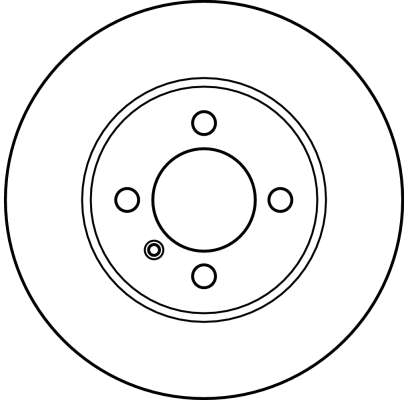

Brake Disc 1 Brake Disc 2
Braking System

Brake Disc

Part No. DF2550 · SKU DF2550-TRW
Front Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)100
Brake Disc Thickness (mm)22
Brake Disc Type Vented
Centering Diameter (mm)66
Colour black
Height (mm)35
Machining High-carbon
Minimum thickness (mm)20.4
Number of Holes 4
Outer Diameter (mm)260
Surface Painted
Test Mark E1 90R-02 C0176/0529
Thread Size 14,6
Bolt Hole Circle Ø [mm] 100, Brake Disc Thickness [mm] 22, Brake Disc Type Vented, Centering Diameter [mm] 66, Colour black, Height [mm] 35, Machining High-carbon, Minimum thickness [mm] 20,4, Number of Holes 4, Outer Diameter [mm] 260, Surface Painted, Test Mark E1 90R-02 C0176/0529, Thread Size 14,6
Fits: BMW

Interchangeable Part Numbers

ABEXW0433 ACDelcoAC2072D APECDSK539 ATE24012201221 ATE24032201221 ATE24112201221 ATE422122 BENDIX333684 BENDIX561324B BENDIX561324BC BORG & BECKBBD4311 BOSCH0 986 478 036 BOSCH986478036 BOSCH F026 A00 943 BOSCHF026A00943 BRADI1.0614.2.E Brake ENGINEERINGDI951087 BREMBO09.4883.10 CAR142127 CARHPD127 DBA AustraliaDBA679 DELPHIBG2347 DELPHIBG347 DELPHIBS3480 FEBI BILSTEIN04059 FERODODDF182 FERODODDF1821 FIRST LINEFBD132 FTE9072246 GIRLING6025501 GRAFDF29123L HELLA8DD 355 100-641 HELLA8DD 355 100-651 HELLA8DD 355 100-652 JURID561324J JURID561324JC LEMFÖRDER10401 03 LPRB2171V MAGNETI MARELLI351061420500 MAGNETI MARELLI431602041320 MAPCO15717 METELLI230123 METZGER20220 MEYLE315 521 3001/PD MEYLE315 521 3001 MGAD923 MINTEXMDC391 NationalNBD067 NK201509 NK311509 OBTEC A/S131602V OBTEC A/S815131602 PAGID50421 PAGID50421PRO PEX140089 PILENGAV113 QH Benelux52452 QUINTON HAZELLBDC3480 QUINTON HAZELLBSF3480 REMSA606210 ROULUNDS RUBBERD2072 SEBRO2452 ST-TEMPLIN0311011590 ST-TEMPLIN0311011595 SWAG20904059 TEXTAR92026500 TEXTAR92026503 TEXTAR92026505 TEXTAR98200026501 TRISCAN812011112 TRUCKTEC AUTOMOTIVE0834001 TRUSTINGDF253 VALEO186036 VALEO186119 WOKINGP606210 ZIMMERMANN1501258 ZIMMERMANN150125800 ZIMMERMANN150125820 ZIMMERMANN150125850 ZIMMERMANN150125852

OE Numbers — BMW

1 154 749 1 154 750 1 160 847 1 160 915 34 11 1 154 749 34 11 1 154 750 34 11 1 160 847 34 11 1 160 915
MakeModelType / Engine YearsCCkWHP
BMW 3 (E30) 324 d 1982 – 1992 2443 63 86
BMW 3 (E30) 320 is 1982 – 1992 1990 141 192
BMW 3 (E30) M3 EVO I 2.3 1982 – 1992 2302 162 220
BMW 3 (E30) M3 EVO II 2.5 1982 – 1992 2467 175 238
BMW 3 (E30) 316 i 1982 – 1992 1766 75 102
BMW 3 (E30) 315 1982 – 1992 1573 55 75
BMW 3 (E30) 316 1982 – 1992 1766 66 90
BMW 3 (E30) 316 i 1982 – 1992 1596 75 102
BMW 3 (E30) 325 i 1982 – 1992 2494 141 192
BMW 3 (E30) 320 i 1982 – 1992 1990 93 126
BMW 3 (E30) 333 i 1982 – 1992 3210 145 197
BMW 3 (E30) 316 (Ecotronic) 1982 – 1992 1766 66 90
BMW 3 (E30) 324 td 1982 – 1992 2443 85 115
BMW 3 (E30) 325 e 2.7 1982 – 1992 2693 95 129
BMW 3 (E30) 325 e 2.7 1982 – 1992 2693 90 122
BMW 3 (E30) 325 i 1982 – 1992 2494 126 171
BMW 3 (E30) 325 i 1982 – 1992 2494 125 170
BMW 3 (E30) 316 i 1982 – 1992 1596 73 100
BMW 3 (E30) 318 i 1982 – 1992 1766 75 102
BMW 3 (E30) 318 i 1982 – 1992 1766 77 105
BMW 3 (E30) 318 i 1982 – 1992 1796 85 115
BMW 3 (E30) 318 i 1982 – 1992 1796 83 113
BMW 3 (E30) 318 is 1982 – 1992 1796 100 136
BMW 3 (E30) 320 i 1982 – 1992 1990 95 129
BMW 3 (E30) 320 i 1982 – 1992 1990 92 125
BMW 3 (E30) M3 2.3 1982 – 1992 2302 143 195
BMW 3 (E30) M3 2.3 1982 – 1992 2302 147 200
BMW 3 (E30) 323 i 1982 – 1992 2316 102 139
BMW 3 (E30) 323 i 1982 – 1992 2316 110 150
BMW 3 (E30) M3 2.3 1982 – 1992 2302 158 215
BMW 3 (E30) 325 i X 1982 – 1992 2494 125 170
BMW 3 (E30) 325 i X 1982 – 1992 2494 126 171
BMW 3 Convertible (E30) 323 i 1982 – 1993 2316 102 139
BMW 3 Convertible (E30) 318 Baur TC 1982 – 1993 1766 66 90
BMW 3 Convertible (E30) M3 2.3 1982 – 1993 2303 158 215
BMW 3 Convertible (E30) M3 2.3 1982 – 1993 2302 147 200
BMW 3 Convertible (E30) 318 i Baur TC 1982 – 1993 1766 77 105
BMW 3 Convertible (E30) 316 i Baur TC 1982 – 1993 1596 73 99
BMW 3 Convertible (E30) 320 i 1982 – 1993 1990 93 126
BMW 3 Convertible (E30) 1982 – 1993 2693 90 122
BMW 3 Convertible (E30) 318 i 1982 – 1993 1796 103 140
BMW 3 Convertible (E30) M3 2.3 1982 – 1993 2302 143 195
BMW 3 Convertible (E30) 325 i 1982 – 1993 2494 126 171
BMW 3 Convertible (E30) 325 i 1982 – 1993 2494 125 170
BMW 3 Convertible (E30) 320 i 1982 – 1993 1990 95 129
BMW 3 Convertible (E30) 318 i 1982 – 1993 1796 83 113
BMW 3 Touring (E30) 318 i 1987 – 1994 1796 85 115
BMW 3 Touring (E30) 316 i 1987 – 1994 1596 75 102
BMW 3 Touring (E30) 316 i 1987 – 1994 1596 73 100
BMW 3 Touring (E30) 320 i 1987 – 1994 1991 93 126
BMW 3 Touring (E30) 324 td 1987 – 1994 2443 85 115
BMW 3 Touring (E30) 325 i X 1987 – 1994 2494 125 170
BMW 3 Touring (E30) 325 i 1987 – 1994 2494 125 170
BMW 3 Touring (E30) 320 i 1987 – 1994 1991 95 129
BMW 3 Touring (E30) 318 i 1987 – 1994 1796 83 113
BMW Z1 Roadster 2.5 1988 – 1991 2494 125 170
