Brake Disc
Brake Disc 1 Brake Disc 2
Braking System

Brake Disc

Part No. DF2552 · SKU DF2552-TRW
Rear Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

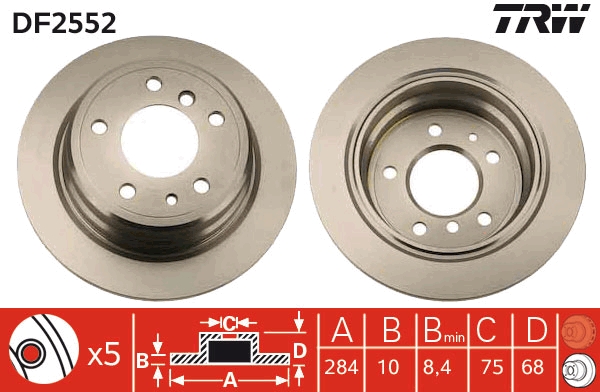

Specifications

Bolt Hole Circle Ø (mm)120
Brake Disc Thickness (mm)10
Brake Disc Type solid
Centering Diameter (mm)75
Height (mm)68
Minimum thickness (mm)8.4
Number of Holes 5
Outer Diameter (mm)284
Thread Size 15
Bolt Hole Circle Ø [mm] 120, Brake Disc Thickness [mm] 10, Brake Disc Type solid, Centering Diameter [mm] 75, Height [mm] 68, Minimum thickness [mm] 8,4, Number of Holes 5, Outer Diameter [mm] 284, Thread Size 15
Fits: BMW

Interchangeable Part Numbers

A.B.S.15768 ABEXW0616 APECDSK789 ATE24011001761 ATE24111001761 ATE410176 BENDIX333682 BENDIX561265B BOSCH986478048 BOSCH F 026 A00940 BOSCHF026A00940 BRADI1.0615.5.4 BREMBO08.5675.10 DBA AustraliaDBA674 DELPHIBG2356 DELPHIBG356 DELPHIBS3479 FERODODDF303 FERODODDF3031 FIRST LINEFBD142 GIRLING6025524 HELLA 8DD 355100-661 HELLA8DD355100661 JURID561265J LEMFÖRDER 1321501 LEMFÖRDER1321501 LPRB2161P NationalNBD321 NK201529 NK311529 OBTEC A/S131356 PAGID50417 PEX140090 QH Benelux52453 QUINTON HAZELL630900 QUINTON HAZELLBDC3479 QUINTON HAZELLBSF3479 SEBRO2453 TEXTAR92026600 TEXTAR98200026601 TRISCAN812011126 WOKINGP630900 ZIMMERMANN1501255 ZIMMERMANN150125500

OE Numbers — BMW 1 152

221

OE Numbers — BMW

1152221 1163150 34211152221 34211163150

OE Numbers — BMW 1 163

150
MakeModelType / Engine YearsCCkWHP
BMW 7 (E23) 728 1977 – 1988 2788 125 170
BMW 7 (E23) 728 i 1977 – 1988 2788 135 184
BMW 7 (E23) 730 1977 – 1988 2986 135 184
BMW 7 (E23) 733 i 1977 – 1988 3210 145 197
BMW 7 (E23) 745 i 1977 – 1988 3210 185 252
BMW 7 (E23) 735 i 1977 – 1988 3430 136 185
BMW 7 (E23) 735 i 1977 – 1988 3430 160 218
BMW 7 (E23) 745 i 1977 – 1988 3430 185 252
BMW 7 (E23) 735 i 1977 – 1988 3430 141 192
BMW 7 (E23) 735 i 1977 – 1988 3453 160 218
BMW 7 (E23) 725 i 1977 – 1988 2494 110 150
BMW 7 (E23) 732 i 1977 – 1988 3210 145 197
BMW 7 (E23) 733 i 1977 – 1988 3210 132 179
BMW 7 (E23) 733 i 1977 – 1988 3210 135 184
BMW 7 (E23) 733 i 1977 – 1988 3210 130 177
