Brake Disc
Brake Disc 1 Brake Disc 2
Braking System

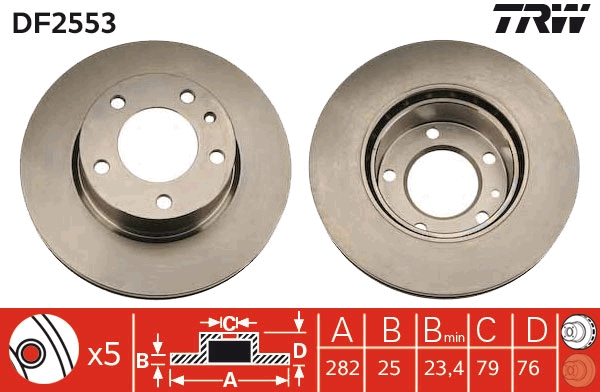

Brake Disc

Part No. DF2553 · SKU DF2553-TRW
Front Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)120
Brake Disc Thickness (mm)25
Brake Disc Type Vented
Centering Diameter (mm)79
Height (mm)76
Minimum thickness (mm)23.4
Number of Holes 5
Outer Diameter (mm)282
Thread Size 15
Bolt Hole Circle Ø [mm] 120, Brake Disc Thickness [mm] 25, Brake Disc Type Vented, Centering Diameter [mm] 79, Height [mm] 76, Minimum thickness [mm] 23,4, Number of Holes 5, Outer Diameter [mm] 282, Thread Size 15
Fits: BMW

Interchangeable Part Numbers

A.B.S.15769 ABEXW0708 ACDelcoAC2402D APECDSK527 ATE24012501041 ATE24112501041 ATE425104 BENDIX333681 BENDIX561264B BOSCH 0 986 478217 BOSCH0986478217 BOSCH986478217 BRADI1.0617.2.E Brake ENGINEERINGDI951089 BREMBO09.5589.10 DELPHIBG2370 DELPHIBG2607 DELPHIBG370 DELPHIBS3641 FERODODDF325 FERODODDF3251 FERODODRF325 FIRST LINEFBD144 GIRLING6025531 HELLA 8DD 355100-671 HELLA8DD355100671 JURID561264J LEMFÖRDER 1041001 LEMFÖRDER1041001 LPRB2181V MAGNETI MARELLI351061720500 MINTEXMDC472 NationalNBD102 NK201515 NK201527 NK311515 NK311527 OBTEC A/S131338V PAGID50428 PEX140092 PILENGAV120 QH Benelux52454 QUINTON HAZELLBDC3641 QUINTON HAZELLBSF3641 REMSA635710 ROULUNDS RUBBERD2402 SEBRO2454 TEXTAR92026700 TEXTAR98200026701 TRISCAN812011119 TRUSTINGDF277 VAICOV20-80033 WOKINGP635710 ZIMMERMANN1501256 ZIMMERMANN150125600 ZIMMERMANN150125620 ZIMMERMANN150125650 ZIMMERMANN150125652

OE Numbers — BMW 1 153

228 230

OE Numbers — BMW

1153228 1153230 1156143 1163147 1163148 34111153228 34111153230 34111156143 34111163147 34111163148

OE Numbers — BMW 1 156

143

OE Numbers — BMW 1 163

147 148
MakeModelType / Engine YearsCCkWHP
BMW 5 (E28) 518 i 1981 – 1987 1766 77 105
BMW 5 (E28) M5 1981 – 1987 3453 191 260
BMW 5 (E28) M535 i 1981 – 1987 3430 160 218
BMW 5 (E28) 533 i 1981 – 1987 3210 135 184
BMW 5 (E28) 518 i 1981 – 1987 1766 75 102
BMW 5 (E28) 520 i 1981 – 1987 1990 110 150
BMW 5 (E28) M5 1981 – 1987 3453 210 286
BMW 5 (E28) 535 i 1981 – 1987 3430 162 220
BMW 5 (E28) 535 i, M 535 i 1981 – 1987 3430 141 192
BMW 5 (E28) 535 i, M 535 i 1981 – 1987 3430 136 185
BMW 5 (E28) 525 e 1981 – 1987 2693 95 129
BMW 5 (E28) 518 1981 – 1987 1766 66 90
BMW 5 (E28) 520 i 1981 – 1987 1990 92 125
BMW 5 (E28) 520 i 1981 – 1987 1990 95 129
BMW 5 (E28) 524 d 1981 – 1987 2443 63 86
BMW 5 (E28) 524 td 1981 – 1987 2443 85 115
BMW 5 (E28) 525 i 1981 – 1987 2494 110 150
BMW 5 (E28) 528 i 1981 – 1987 2788 135 184
BMW 5 (E28) 525 e 1981 – 1987 2693 92 125
BMW 5 (E28) 525 e 1981 – 1987 2693 90 122
BMW 6 (E24) 630 CS 1975 – 1989 2986 136 185
BMW 6 (E24) 633 CSi 1975 – 1989 3210 132 179
BMW 6 (E24) 635 CSi 1975 – 1989 3430 162 220
BMW 6 (E24) 633 CSi 1975 – 1989 3210 135 184
BMW 6 (E24) 630 CSi 1975 – 1989 2986 131 178
BMW 6 (E24) 635 CSi 1975 – 1989 3430 160 218
BMW 6 (E24) 628 CSi 1975 – 1989 2788 135 184
BMW 6 (E24) 635 CSi 1975 – 1989 3453 160 218
BMW 6 (E24) 633 CSi 1975 – 1989 3210 147 200
BMW 6 (E24) M 635 CSi 1975 – 1989 3453 191 260
BMW 6 (E24) 635 CSi 1975 – 1989 3430 141 192
BMW 6 (E24) 635 CSi 1975 – 1989 3430 136 185
BMW 6 (E24) 630 CS 1975 – 1989 2986 135 184
BMW 6 (E24) 633 CSi 1975 – 1989 3210 145 197
BMW 6 (E24) 635 CSi 1975 – 1989 3430 155 211
BMW 6 (E24) M 635 CSi 1975 – 1989 3453 210 286
