Brake Disc

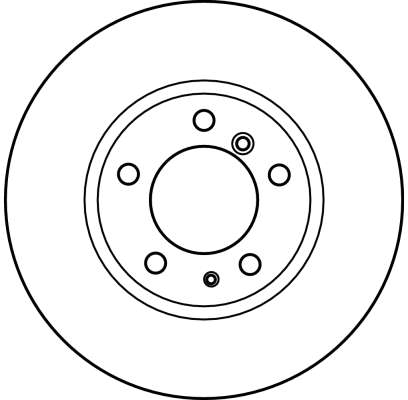

Brake Disc 1 Brake Disc 2
Braking System

Brake Disc

Part No. DF2555 · SKU DF2555-TRW
Front Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)120
Brake Disc Thickness (mm)11.8
Brake Disc Type solid
Centering Diameter (mm)79
Colour black
Height (mm)76
Machining High-carbon
Minimum thickness (mm)10.4
Number of Holes 5
Outer Diameter (mm)302
Surface Painted
Test Mark E1 90R-02 C0190/0744
Thread Size 15
Bolt Hole Circle Ø [mm] 120, Brake Disc Thickness [mm] 11,8, Brake Disc Type solid, Centering Diameter [mm] 79, Colour black, Height [mm] 76, Machining High-carbon, Minimum thickness [mm] 10,4, Number of Holes 5, Outer Diameter [mm] 302, Surface Painted, Test Mark E1 90R-02 C0190/0744, Thread Size 15
Fits: BMW

Interchangeable Part Numbers

A.B.S.15867 ABEXW0470 ACDelcoAC2073D APECDSK914 ATE24011201241 ATE24111201241 ATE412124 BENDIX345042 BENDIX561476B BENDIX561476BC BORG & BECKBBD4894 BOSCH0 986 478 319 BOSCH986478319 BRADI1.0618.1.4 Brake ENGINEERINGDI953270 BREMBO08.5141.20 CAR142128 CARHPD128 DBA AustraliaDBA975 DELPHIBG2430 DELPHIBG430 DELPHIBS3639 FEBI BILSTEIN01716 FERODODDF210 FERODODDF2101 FERODODRF210 FIRST LINEFBD338 FTE9072535 FTE9082310 FTEBS3639B FTEBS3639H GRAFDF29187 HELLA8DD 355 101-681 HELLA8DD 355 101-691 HELLA8DD 355 127-021 JURID561476J JURID561476JC LEMFÖRDER10405 01 LEMFÖRDER10405 03 LPRB2231P MAGNETI MARELLI353610618140 MAGNETI MARELLI431602041530 MAPCO15716 METELLI230187 METZGER14221 MEYLE315 521 3006 MGAD987 MINTEXMDC480 NationalNBD155 NK201518 NK301518 NK311518 OBTEC A/S131335 PAGID50410 PAGID50410PRO PEX140093 PILENGA5124 QH Benelux52491 QUINTON HAZELL634700 QUINTON HAZELLBDC3639 QUINTON HAZELLBSF3639 REMYRAD2277C ROULUNDS RUBBERD2073 SEBRO2460 SWAG20901716 TEXTAR92042100 TEXTAR92042103 TEXTAR98200042101 TRISCAN812011102 TRUCKTEC AUTOMOTIVE0834019 TRUSTINGDF124 VALEO186124 WOKINGP634700 ZIMMERMANN1501266 ZIMMERMANN150126600 ZIMMERMANN150126650 ZIMMERMANN150126652

OE Numbers — BMW

1 158 042 1 159 898 1 161 693 34 11 1 158 042 34 11 1 159 898 34 11 1 161 693
MakeModelType / Engine YearsCCkWHP
BMW 5 (E34) 520 i 24V 1987 – 1995 1990 110 150
BMW 5 (E34) 518 i 1987 – 1995 1796 85 115
BMW 5 (E34) 518 i 1987 – 1995 1796 83 113
BMW 5 (E34) 525 td 1987 – 1995 2497 85 115
BMW 5 (E34) 520 i 1987 – 1995 1990 95 129
BMW 5 (E34) 540 i V8 1987 – 1995 3982 210 286
BMW 5 (E34) M5 1987 – 1995 3795 250 340
BMW 5 (E34) M5 1987 – 1995 3535 232 315
BMW 5 (E34) 535 i 1987 – 1995 3430 155 211
BMW 5 (E34) 530 i V8 1987 – 1995 2997 160 218
BMW 5 (E34) 530 i 1987 – 1995 2986 138 188
BMW 5 (E34) 525 tds 1987 – 1995 2497 105 143
BMW 5 (E34) 525 iX 24V 1987 – 1995 2494 141 192
BMW 5 (E34) 525 i 24V 1987 – 1995 2494 141 192
BMW 5 (E34) 525 i 1987 – 1995 2494 125 170
BMW 5 (E34) 524 td 1987 – 1995 2443 85 115
BMW 5 Touring (E34) 518 i 1991 – 1996 1796 83 113
BMW 5 Touring (E34) 525 td 1991 – 1996 2497 85 115
BMW 5 Touring (E34) 518 i 1991 – 1996 1796 85 115
BMW 5 Touring (E34) M5 1991 – 1996 3795 250 340
BMW 5 Touring (E34) 518 g 1991 – 1996 1796 74 101
BMW 5 Touring (E34) 540 i 1991 – 1996 3982 210 286
BMW 5 Touring (E34) 530 i 1991 – 1996 2997 160 218
BMW 5 Touring (E34) 525 tds 1991 – 1996 2497 105 143
BMW 5 Touring (E34) 525 ix 1991 – 1996 2494 141 192
BMW 5 Touring (E34) 525 i 1991 – 1996 2494 141 192
BMW 5 Touring (E34) 520 i 1991 – 1996 1990 110 150
