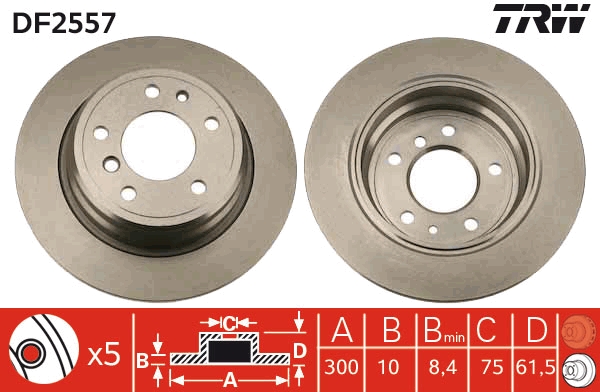

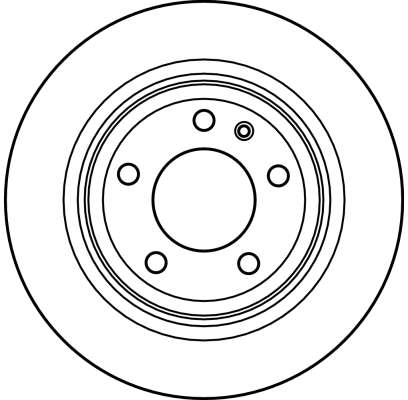

Brake Disc
Brake Disc 1 Brake Disc 2
Braking System

Brake Disc

Part No. DF2557 · SKU DF2557-TRW
Rear Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)120
Brake Disc Thickness (mm)10
Brake Disc Type solid
Centering Diameter (mm)75
Colour black
Drum diameter (mm)180
Height (mm)61.5
Minimum thickness (mm)8.4
Number of Holes 5
Outer Diameter (mm)300
Surface Painted
Test Mark E1 90R-02 C0204/0741
Thread Size 15
Bolt Hole Circle Ø [mm] 120, Brake Disc Thickness [mm] 10, Brake Disc Type solid, Centering Diameter [mm] 75, Colour black, Drum diameter [mm] 180, Height [mm] 61,5, Minimum thickness [mm] 8,4, Number of Holes 5, Outer Diameter [mm] 300, Surface Painted, Test Mark E1 90R-02 C0204/0741, Thread Size 15
Fits: BMW

Interchangeable Part Numbers

A.B.S.15868 A.P.14464E ABEXW0478 ACDelcoAC2074D APECDSK901 ATE24011001171 ATE24031001171 ATE24111001171 ATE410117 BENDIX345043 BENDIX561477B BENDIX561477BC BORG & BECKBBD4895 BOSCH0 986 478 321 BOSCH986478321 BOSCH F026 A01 021 BOSCHF026A01021 BRADI1.0619.5.4 Brake ENGINEERINGDI953280 BREMBO08.5174.20 BREMBO08517434 CAR142114 CARHPD114 DBA AustraliaDBA976 DELPHIBG2431 DELPHIBG431 DELPHIBS3640 FEBI BILSTEIN04176 FERODODDF221 FERODODDF2211 FERODODDF221C FERODODDF221C1 FERODODRF221 FIRST LINEFBD339 FTE9072177 GRAFDF29189 HELLA8DD 355 101-721 HELLA8DD 355 101-731 HELLA8DD 355 101-732 JURID561477J JURID561477JC LEMFÖRDER10402 01 LEMFÖRDER10402 03 LPRB2241P MAGNETI MARELLI353610619540 MAGNETI MARELLI431602041540 MAPCO15766 METELLI230189 MEYLE315 523 3004/PD MEYLE315 523 3004 MGAD989 MINTEXMDC483 NationalNBD323 NK201520 NK311520 OBTEC A/S131337 PAGID50411 PAGID50411PRO PEX140094 PILENGA5125 QH Benelux52492 QUINTON HAZELL634200 QUINTON HAZELLBDC3640 QUINTON HAZELLBSF3640 REMYRAD1481C ROULUNDS RUBBERD2074 SEBRO2462 ST-TEMPLIN0311011740 ST-TEMPLIN0311011745 SWAG20904176 TEXTAR92042300 TEXTAR92042303 TEXTAR98200042301 TRISCAN812011103 TRISCAN812011180 TRUCKTEC AUTOMOTIVE0834026 TRUSTINGDF055 VAICOV20-40006 VALEO186125 WOKINGP634200 ZIMMERMANN1501267 ZIMMERMANN150126700 ZIMMERMANN150126750 ZIMMERMANN150126752

OE Numbers — BMW

1 156 668 1 162 305 34 21 1 156 668 34 21 1 162 305 34 21 6 756 537 6 756 537
MakeModelType / Engine YearsCCkWHP
BMW 5 (E34) 520 i 24V 1987 – 1995 1990 110 150
BMW 5 (E34) 518 i 1987 – 1995 1796 85 115
BMW 5 (E34) 518 i 1987 – 1995 1796 83 113
BMW 5 (E34) 525 td 1987 – 1995 2497 85 115
BMW 5 (E34) 520 i 1987 – 1995 1990 95 129
BMW 5 (E34) 540 i V8 1987 – 1995 3982 210 286
BMW 5 (E34) M5 1987 – 1995 3795 250 340
BMW 5 (E34) M5 1987 – 1995 3535 232 315
BMW 5 (E34) 535 i 1987 – 1995 3430 155 211
BMW 5 (E34) 530 i V8 1987 – 1995 2997 160 218
BMW 5 (E34) 530 i 1987 – 1995 2986 138 188
BMW 5 (E34) 525 tds 1987 – 1995 2497 105 143
BMW 5 (E34) 525 iX 24V 1987 – 1995 2494 141 192
BMW 5 (E34) 525 i 24V 1987 – 1995 2494 141 192
BMW 5 (E34) 525 i 1987 – 1995 2494 125 170
BMW 5 (E34) 524 td 1987 – 1995 2443 85 115
BMW 5 Touring (E34) 518 i 1991 – 1996 1796 83 113
BMW 5 Touring (E34) 525 td 1991 – 1996 2497 85 115
BMW 5 Touring (E34) 518 i 1991 – 1996 1796 85 115
BMW 5 Touring (E34) M5 1991 – 1996 3795 250 340
BMW 5 Touring (E34) 518 g 1991 – 1996 1796 74 101
BMW 5 Touring (E34) 540 i 1991 – 1996 3982 210 286
BMW 5 Touring (E34) 530 i 1991 – 1996 2997 160 218
BMW 5 Touring (E34) 525 tds 1991 – 1996 2497 105 143
BMW 5 Touring (E34) 525 ix 1991 – 1996 2494 141 192
BMW 5 Touring (E34) 525 i 1991 – 1996 2494 141 192
BMW 5 Touring (E34) 520 i 1991 – 1996 1990 110 150
