TRW
Braking System

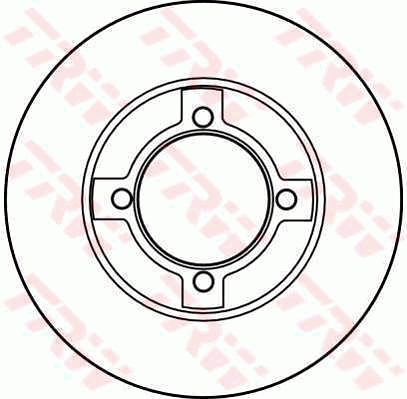

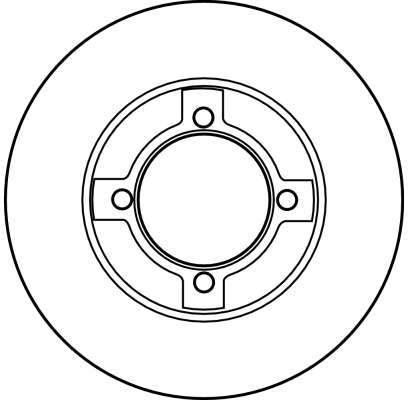

Brake Disc
Part No.
DF2570
·
SKU
DF2570-TRW
Price on request
Currently out of stock
Get notified when this part is back in stock:
Genuine & OEM parts
Nationwide delivery
Easy returns
Specifications
| Bolt Hole Circle Ø (mm) | 96 |
| Brake Disc Thickness (mm) | 18 |
| Brake Disc Type Vented |
| Centering Diameter (mm) | 76 |
| Height (mm) | 37 |
| Minimum thickness (mm) | 16 |
| Number of Holes 4 |
| Outer Diameter (mm) | 232 |
| Thread Size 11 |
Bolt Hole Circle Ø [mm] 96, Brake Disc Thickness [mm] 18, Brake Disc Type Vented, Centering Diameter [mm] 76, Height [mm] 37, Minimum thickness [mm] 16, Number of Holes 4, Outer Diameter [mm] 232, Thread Size 11
Interchangeable Part Numbers
A.B.S.15565
A.P.24256
ABEXW0684
APECDSK258
ATE24011801271
BENDIX345012
BENDIX561449B
BOSCH986478364
BRADI1.3220.2.4
BREMBO09.5230.10
DELPHIBG2564
DELPHIBG564
FERODODDF396
FERODODDF3961
FIRST LINEFBD054
HELLA 8DD 355101-181
HELLA8DD355101181
JAPANPARTSDI-125
JURID561449J
METELLI230280
MGAD1080
MINTEXMDC681
NIPPARTSJ3301025
NK202217
OBTEC A/S151540V
PAGID52323
PEX140379
QUINTON HAZELLBDC3795
sbs1815202217
SEBRO3950
TEXTAR98200035301
TRISCAN812014128
TRUSTINGDF440
VALEO186480
OE Numbers — NISSAN
40206-03R00
40206-16R00
