Brake Disc
Brake Disc 1 Brake Disc 2
Braking System

Brake Disc

Part No. DF2593 · SKU DF2593-TRW
Front Axle
₱27,600.00
In stock — available to order
Genuine & OEM parts Nationwide delivery Easy returns

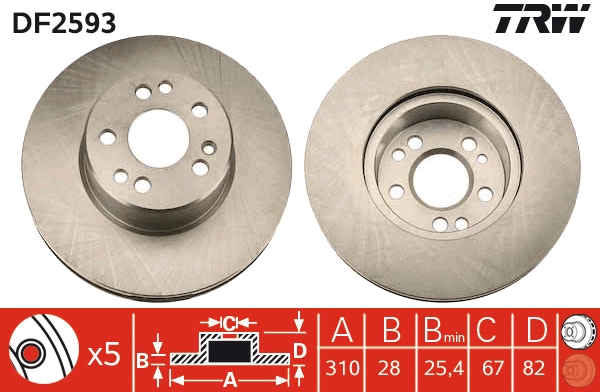

Specifications

Bolt Hole Circle Ø (mm)112
Brake Disc Thickness (mm)28
Brake Disc Type Vented
Centering Diameter (mm)67
Height (mm)82
Minimum thickness (mm)25.4
Number of Holes 5
Outer Diameter (mm)310
Thread Size 17
Bolt Hole Circle Ø [mm] 112, Brake Disc Thickness [mm] 28, Brake Disc Type Vented, Centering Diameter [mm] 67, Height [mm] 82, Minimum thickness [mm] 25,4, Number of Holes 5, Outer Diameter [mm] 310, Thread Size 17
Fits: MERCEDES-BENZ

Supplier Cross-References

TEXTAR92056700 ZIMMERMANN400142200 FERODODDF613 JURID561571J BREMBO9572610 TRWDF2593

Interchangeable Part Numbers

A.B.S.16110 A.P.24808 ABEXW0735 ACDelcoAC2414D APECDSK2000 ATE24012801271 ATE24112801271 BENDIX561571B BOSCH 0 986 478528 BOSCH0986478528 BOSCH986478528 BRADI1.2823.2.E Brake ENGINEERINGDI955161 BREMBO09.5726.10 CAR142446 CARHPD446 DBA AustraliaDBA282 DELPHIBG2737 DELPHIBG737 DELPHIBS4323 FEBI BILSTEIN10684 FERODODDF6131 FIRST LINEFBD509 GIRLING6025931 HELLA 8DD 355102-701 HELLA8DD355102701 HELLA 8DD 355122-232 HELLA8DD355122232 LEMFÖRDER 1106601 LEMFÖRDER1106601 LEMFÖRDER 1106603 LEMFÖRDER1106603 LEMFÖRDER 1106704 LEMFÖRDER1106704 LPRM2391V LPRM2421V MAGNETI MARELLI351282320500 MAGNETI MARELLI351282520500 MAPCO15803 METELLI230413 METELLI230699 METZGER24437 MEYLE 015 5212022 MEYLE0155212022 MGAD1357 MINTEXMDC764 MINTEXMDC793 NationalNBD398 NK203350 NK313350 OBTEC A/S232307V OPTIMALBS-3510C OPTIMALBS-3510 PAGID52126 PEX140321 PILENGAV186 PILENGAV194 QH Benelux57409 QUINTON HAZELL635110 QUINTON HAZELLBDC4323 QUINTON HAZELLBDC4378 QUINTON HAZELLBSF4323 QUINTON HAZELLBSF4378 ROULUNDS RUBBERD2414 SEBRO5061 SWAG10910684 TEXTAR98200056701 TRISCAN812023106 TRUSTINGDF456 VAICOV30-80027 VALEO186623 WOKINGP635110 ZIMMERMANN400142100 ZIMMERMANN400142150 ZIMMERMANN4001422 ZIMMERMANN400142250

OE Numbers — MERCEDES-BENZ 140 421 03

12

OE Numbers — MERCEDES-BENZ

1404210312 140421031264 A1404210312 A140421031264
MakeModelType / Engine YearsCCkWHP
MERCEDES-BENZ S-CLASS (W140) S 350 Turbo-D (140.134) 1991 – 1998 3449 110 150
MERCEDES-BENZ S-CLASS (W140) S 280 (140.028) 1991 – 1998 2799 142 193
MERCEDES-BENZ S-CLASS (W140) 300 SE 2.8 (140.028) 1991 – 1998 2799 145 197
MERCEDES-BENZ S-CLASS (W140) 300 SE, SEL/S320 (140.032, 140.033) 1991 – 1998 3199 170 231
MERCEDES-BENZ S-CLASS (W140) S 420 (140.042, 140.043) 1991 – 1998 4196 205 279
MERCEDES-BENZ S-CLASS (W140) 400 SE, SEL/S420 (140.042, 140.043) 1991 – 1998 4196 210 286
MERCEDES-BENZ S-CLASS (W140) S 500 (140.050, 140.051) 1991 – 1998 4973 235 320
MERCEDES-BENZ S-CLASS (W140) 500 SE, SEL (140.050, 140.051) 1991 – 1998 4973 240 326
MERCEDES-BENZ S-CLASS (W140) S 600 (140.056, 140.057) 1991 – 1998 5987 290 394
MERCEDES-BENZ S-CLASS (W140) 600 SE, SEL (140.056, 140.057) 1991 – 1998 5987 300 408
MERCEDES-BENZ S-CLASS (W140) S 300 Turbo-D (140.135) 1991 – 1998 2996 130 177
MERCEDES-BENZ S-CLASS (W140) S 320 1991 – 1998 3199 162 220
MERCEDES-BENZ S-CLASS (W140) S 420 1991 – 1998 4196 214 291
