Brake Disc
Brake Disc 1 Brake Disc 2
Braking System

Brake Disc

Part No. DF2594 · SKU DF2594-TRW
Rear Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

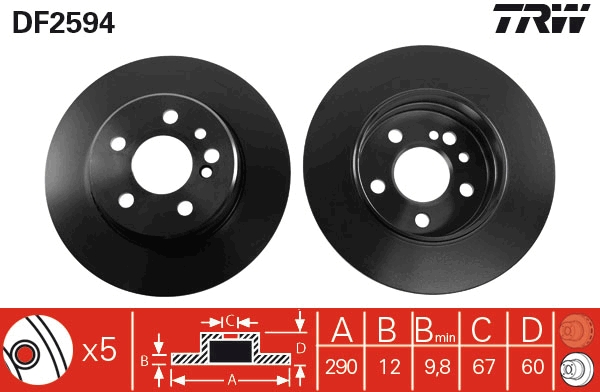

Specifications

Bolt Hole Circle Ø (mm)110
Brake Disc Thickness (mm)12
Brake Disc Type solid
Centering Diameter (mm)67
Colour black
Height (mm)60
Minimum thickness (mm)9.8
Number of Holes 5
Outer Diameter (mm)290
Surface Painted
Test Mark E1 90R-02 C0204/0523
Thread Size 17
Bolt Hole Circle Ø [mm] 110, Brake Disc Thickness [mm] 12, Brake Disc Type solid, Centering Diameter [mm] 67, Colour black, Height [mm] 60, Minimum thickness [mm] 9,8, Number of Holes 5, Outer Diameter [mm] 290, Surface Painted, Test Mark E1 90R-02 C0204/0523, Thread Size 17
Fits: MERCEDES-BENZ

Interchangeable Part Numbers

A.B.S.08.5725.10 A.B.S.16111 A.P.14433 ABEXW0621 ACDelcoAC2345D APECDSK628 ATE24011201291 ATE24111201291 ATE412129 BENDIX561572B BLUE PRINTADU174346 BORG & BECKBBD5003 BOSCH 0 986 478607 BOSCH0986478607 BOSCH 0 986 AB6139 BOSCH0986AB6139 BOSCH986478607 BRADI1.2824.5.4 Brake ENGINEERINGDI955162 CAR142439 CARHPD439 DBA AustraliaDBA283 DELPHIBG2738 DELPHIBG738 DELPHIBS4324 FEBI BILSTEIN08131 FERODODDF560 FERODODDF5601 FIRST LINEFBD510 FTE9072617 GIRLING6025944 HELLA 8DD 355102-721 HELLA8DD355102721 HELLA 8DD 355122-172 HELLA8DD355122172 JURID561572J LEMFÖRDER 1265103 LEMFÖRDER1265103 LPRM2411P MAGNETI MARELLI353612824540 MAPCO15798 METELLI230414 MEYLE 015 5232008/PD MEYLE0155232008PD MEYLE 015 5232008 MEYLE0155232008 MGAD1323 MINTEXMDC803 NationalNBD399 NK203330 NK313330 OBTEC A/S232313 OBTEC A/S815232313 OPTIMALBS-3320C OPTIMALBS-3320 PAGID52113 PEX140322 PILENGA5192 QH Benelux57410 QUINTON HAZELLBDC4324 QUINTON HAZELLBSF4324 REMSA633200 REMYRAD2386C ROULUNDS RUBBERD2345 sbs1815203330 SEBRO5062 SWAG10908131 TEXTAR92056900 TEXTAR92056903 TEXTAR92056905 TEXTAR98200056901 TRISCAN812023125 TRUCKTEC AUTOMOTIVE0235035 TRUSTINGDF125 VAICOV30-40015 VALEO186463 WOKINGP633200 ZIMMERMANN4001423 ZIMMERMANN400142300 ZIMMERMANN400142350

OE Numbers — MERCEDES-BENZ 140 423 06

12

OE Numbers — MERCEDES-BENZ

1404230612 A1404230612
MakeModelType / Engine YearsCCkWHP
MERCEDES-BENZ S-CLASS (W140) S 350 Turbo-D (140.134) 1991 – 1998 3449 110 150
MERCEDES-BENZ S-CLASS (W140) S 280 (140.028) 1991 – 1998 2799 142 193
MERCEDES-BENZ S-CLASS (W140) 300 SE 2.8 (140.028) 1991 – 1998 2799 145 197
MERCEDES-BENZ S-CLASS (W140) 300 SE, SEL/S320 (140.032, 140.033) 1991 – 1998 3199 170 231
MERCEDES-BENZ S-CLASS (W140) S 420 (140.042, 140.043) 1991 – 1998 4196 205 279
MERCEDES-BENZ S-CLASS (W140) 400 SE, SEL/S420 (140.042, 140.043) 1991 – 1998 4196 210 286
MERCEDES-BENZ S-CLASS (W140) S 500 (140.050, 140.051) 1991 – 1998 4973 235 320
MERCEDES-BENZ S-CLASS (W140) 500 SE, SEL (140.050, 140.051) 1991 – 1998 4973 240 326
MERCEDES-BENZ S-CLASS (W140) S 600 (140.056, 140.057) 1991 – 1998 5987 290 394
MERCEDES-BENZ S-CLASS (W140) 600 SE, SEL (140.056, 140.057) 1991 – 1998 5987 300 408
MERCEDES-BENZ S-CLASS (W140) S 300 Turbo-D (140.135) 1991 – 1998 2996 130 177
MERCEDES-BENZ S-CLASS (W140) S 320 1991 – 1998 3199 162 220
MERCEDES-BENZ S-CLASS (W140) S 420 1991 – 1998 4196 214 291
