Brake Disc

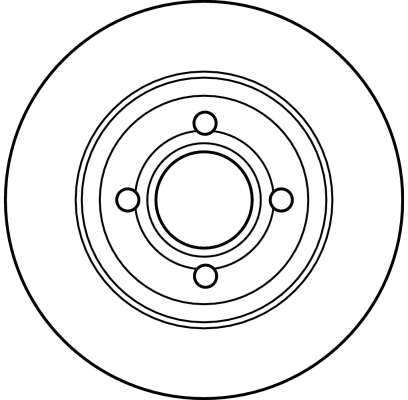

Brake Disc 1 Brake Disc 2
Braking System

Brake Disc

Part No. DF2597 · SKU DF2597-TRW
Front Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)108
Brake Disc Thickness (mm)12.9
Brake Disc Type solid
Centering Diameter (mm)68
Colour black
Height (mm)56.3
Machining High-carbon
Minimum thickness (mm)11
Number of Holes 4
Outer Diameter (mm)280
Surface Painted
Test Mark E1 90R-02 C0190/0527
Thread Size 15,6
Bolt Hole Circle Ø [mm] 108, Brake Disc Thickness [mm] 12,9, Brake Disc Type solid, Centering Diameter [mm] 68, Colour black, Height [mm] 56,3, Machining High-carbon, Minimum thickness [mm] 11, Number of Holes 4, Outer Diameter [mm] 280, Surface Painted, Test Mark E1 90R-02 C0190/0527, Thread Size 15,6
Fits: AUDI

Interchangeable Part Numbers

A.B.S.08.5709.10 A.B.S.16201 A.P.14431 A.P.X14431 ABEXW0620 AKEBONOBN-0463E AKEBONOBN-0463 APECDSK630 ATE24011301791 ATE413179 BENDIX561688B BENDIX561688BC BORG & BECKBBD4971 BOSCH0 986 478 131 BOSCH986478131 BRADI1.0119.1.4 Brake ENGINEERINGDI955265 BREMBO08570975 CAR142736 CARHPD736 DELPHIBG2407 DELPHIBG2783 DELPHIBG407 DELPHIBG783 DELPHIBS3934 DONPCD12332 FEBI BILSTEIN08553 FEBI BILSTEIN11203 FERODODDF518 FERODODDF5181 FERODODDF518C FERODODDF518C1 FIRST LINEFBD463 FREMAXBD-8014 FTE9072843 FTEBS3934B FTEBS3934H GIRLING6025973 HELLA8DD 355 103-071 JURID561688J JURID561688JC LEMFÖRDER13717 03 LPRA1391P MAGNETI MARELLI353610119140 MAGNETI MARELLI360406012500 MAGNETI MARELLI431602040430 MAPCO15865 METELLI230329 METZGER6110262 MEYLE115 521 1024 MEYLE1155211024PD MGAD1129 MINTEXMDC812 NK204741 NK314741 OBTEC A/S424230 OBTEC A/S815424230 OPTIMALBS-2870C OPTIMALBS-2870 PAGID53922 PEX140036 QH Benelux57504 QUINTON HAZELLBDC3934 QUINTON HAZELLBSF3934 RAICAMRD00868 REMSA628700 REMYRAD2143C sbs1815204741 sbs1815314741 SEBRO2383 ST-TEMPLIN0311010240 ST-TEMPLIN0311010245 SWAG32908553 TEXTAR92060400 TEXTAR98200060401 TRISCAN8120 29117C TRISCAN812029117 TRUSTINGDF136 VAICOV10-40020 VALEO186269 ZIMMERMANN100.1221.20 ZIMMERMANN100.1221.52 ZIMMERMANN100122100 ZIMMERMANN100122150

OE Numbers — AUDI

8A0 615 301 D 8A0 615 301 8AO 615 301 D 8AO 615 301
MakeModelType / Engine YearsCCkWHP
AUDI 80 B4 Avant (8C5) 2.8 1991 – 1996 2771 128 174
AUDI 80 B4 Avant (8C5) 2.0 1991 – 1996 1984 66 90
AUDI 80 B4 Avant (8C5) 2.0 E 1991 – 1996 1984 85 115
AUDI 80 B4 Avant (8C5) 2.0 E 16V 1991 – 1996 1984 103 140
AUDI 80 B4 Avant (8C5) 2.0 E 16V quattro 1991 – 1996 1984 103 140
AUDI 80 B4 Avant (8C5) 2.3 E 1991 – 1996 2309 98 133
AUDI 80 B4 Avant (8C5) 2.6 1991 – 1996 2598 110 150
AUDI 80 B4 Avant (8C5) S2 quattro 1991 – 1996 2226 169 230
AUDI 80 B4 Avant (8C5) 1.9 TD 1991 – 1996 1896 55 75
AUDI 80 B4 Avant (8C5) 2.6 quattro 1991 – 1996 2598 110 150
AUDI 80 B4 Avant (8C5) 2.8 quattro 1991 – 1996 2771 128 174
AUDI 80 B4 Avant (8C5) RS2 quattro 1991 – 1996 2226 232 315
AUDI 80 B4 Avant (8C5) 2.3 E quattro 1991 – 1996 2309 98 133
AUDI 80 B4 Avant (8C5) 2.0 quattro 1991 – 1996 1984 79 107
AUDI 80 B4 Avant (8C5) 1.9 TDI 1991 – 1996 1896 66 90
AUDI 80 B4 Avant (8C5) 1.6 E 1991 – 1996 1595 74 101
AUDI 80 B4 Saloon (8C2) 2.3 E 1991 – 1995 2309 98 133
AUDI 80 B4 Saloon (8C2) 2.8 quattro 1991 – 1995 2771 128 174
AUDI 80 B4 Saloon (8C2) 2.6 quattro 1991 – 1995 2598 110 150
AUDI 80 B4 Saloon (8C2) 2.3 E quattro 1991 – 1995 2309 98 133
AUDI 80 B4 Saloon (8C2) S2 quattro 1991 – 1995 2226 169 230
AUDI 80 B4 Saloon (8C2) 2.0 E quattro 1991 – 1995 1984 85 115
AUDI 80 B4 Saloon (8C2) 2.0 E 16V quattro 1991 – 1995 1984 103 140
AUDI 80 B4 Saloon (8C2) 2.8 1991 – 1995 2771 128 174
AUDI 80 B4 Saloon (8C2) 2.0 E 16V 1991 – 1995 1984 103 140
AUDI 80 B4 Saloon (8C2) 2.0 E 1991 – 1995 1984 85 115
AUDI 80 B4 Saloon (8C2) 2.0 1991 – 1995 1984 66 90
AUDI 80 B4 Saloon (8C2) 1.6 E 1991 – 1995 1595 74 101
AUDI 80 B4 Saloon (8C2) 1.6 1991 – 1995 1595 52 71
AUDI 80 B4 Saloon (8C2) 1.9 TDI 1991 – 1995 1896 66 90
AUDI 80 B4 Saloon (8C2) 1.9 TD 1991 – 1995 1896 55 75
AUDI 80 B4 Saloon (8C2) 2.6 1991 – 1995 2598 110 150
AUDI 80 B4 Saloon (8C2) 2.0 E 16V 1991 – 1995 1984 101 137
AUDI 80 B4 Saloon (8C2) 2.0 quattro 1991 – 1995 1984 79 107
AUDI COUPE B3 (89, 8B3) 2.2 quattro 1988 – 1996 2226 100 136
AUDI COUPE B3 (89, 8B3) 2.3 1988 – 1996 2309 100 136
AUDI COUPE B3 (89, 8B3) 2.3 1988 – 1996 2309 97 132
AUDI COUPE B3 (89, 8B3) 2.0 1988 – 1996 1984 83 113
AUDI COUPE B3 (89, 8B3) 2.0 1988 – 1996 1984 82 112
AUDI COUPE B3 (89, 8B3) 2.0 20 V 1988 – 1996 1994 118 160
AUDI COUPE B3 (89, 8B3) 2.0 20 V quattro 1988 – 1996 1994 118 160
AUDI COUPE B3 (89, 8B3) 2.0 16 V 1988 – 1996 1984 101 137
AUDI COUPE B3 (89, 8B3) 1.8 1988 – 1996 1781 82 112
AUDI COUPE B3 (89, 8B3) 2.2 1988 – 1996 2226 100 136
AUDI COUPE B3 (89, 8B3) 2.3 20V 1988 – 1996 2309 125 170
AUDI COUPE B3 (89, 8B3) 2.8 quattro 1988 – 1996 2771 128 174
AUDI COUPE B3 (89, 8B3) 2.6 quattro 1988 – 1996 2598 110 150
AUDI COUPE B3 (89, 8B3) 2.3 20V quattro 1988 – 1996 2309 123 167
AUDI COUPE B3 (89, 8B3) 2.3 quattro 1988 – 1996 2309 98 134
AUDI COUPE B3 (89, 8B3) S2 quattro 1988 – 1996 2226 169 230
AUDI COUPE B3 (89, 8B3) S2 quattro 1988 – 1996 2226 162 220
AUDI COUPE B3 (89, 8B3) 2.3 20V quattro 1988 – 1996 2309 125 170
AUDI COUPE B3 (89, 8B3) 2.3 quattro 1988 – 1996 2309 100 136
AUDI COUPE B3 (89, 8B3) 2.8 1988 – 1996 2771 128 174
AUDI COUPE B3 (89, 8B3) 2.6 1988 – 1996 2598 110 150
AUDI COUPE B3 (89, 8B3) 2.3 20V 1988 – 1996 2309 123 167
AUDI COUPE B3 (89, 8B3) 2.3 1988 – 1996 2309 98 133
AUDI COUPE B3 (89, 8B3) 2.0 16 V 1988 – 1996 1984 103 140
AUDI COUPE B3 (89, 8B3) 2.0 1988 – 1996 1984 85 115
