Brake Disc
Brake Disc 1 Brake Disc 2
Braking System

Brake Disc

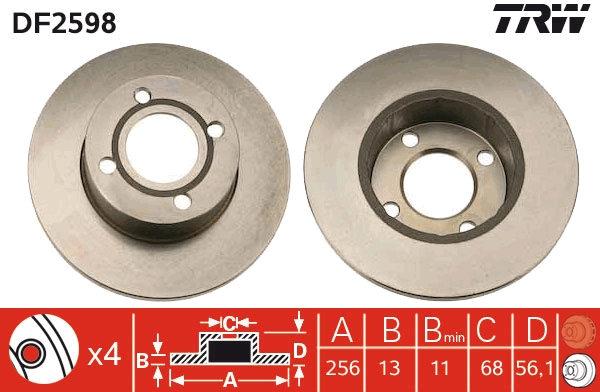

Part No. DF2598 · SKU DF2598-TRW
Front Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)108
Brake Disc Thickness (mm)13
Brake Disc Type solid
Centering Diameter (mm)68
Colour black
Height (mm)56
Minimum thickness (mm)11
Number of Holes 4
Outer Diameter (mm)256
Surface Painted
Test Mark E190R-02C0190/0142
Thread Size 15,5
Bolt Hole Circle Ø [mm] 108, Brake Disc Thickness [mm] 13, Brake Disc Type solid, Centering Diameter [mm] 68, Colour black, Height [mm] 56, Minimum thickness [mm] 11, Number of Holes 4, Outer Diameter [mm] 256, Surface Painted, Test Mark E190R-02C0190/0142, Thread Size 15,5
Fits: AUDI

Interchangeable Part Numbers

A.B.S.08.5714.10 A.B.S.16100 A.P.14432 ABEXW0532 ACDelcoAC2133D AKEBONOBN-0495E AKEBONOBN-0495 APECDSK528 ATE24011301661 ATE24111301661 ATE413166 BENDIX561690B BENDIX561690BC BORG & BECKBBD4950 BOSCH0 986 478 130 BOSCH986478130 BRADI1.0118.1.4 Brake ENGINEERINGDI955152 CAR142735 CARHPD735 DELPHIBG2752 DELPHIBG752 DELPHIBS3907 DONPCD13452 FEBI BILSTEIN10915 FERODODDF318 FERODODDF3181 FERODODDF318C FERODODDF318C1 FIRST LINEFBD436 FREMAXBD-4012 FTE9072351 GIRLING6025983 GRAFDF29233L HELLA8DD 355 102-841 ICER78BD4012-2 JURID561690J JURID561690JC LEMFÖRDER14587 02 LPRA1201P MAGNETI MARELLI353610118140 MAGNETI MARELLI431602040470 MAPCO15862 METELLI230233 MEYLE115 521 1087 MEYLE1155211087PD MGAD1033 MINTEXMDC756 NationalNBD387 NK204737 NK314737 OBTEC A/S424220 OPEN PARTSBDR1035.10 OPTIMALBS-1730C OPTIMALBS-1730 PAGID53923 PEX140035 PILENGA5862 QH Benelux57444 QUINTON HAZELLBDC3907 QUINTON HAZELLBSF3907 RAICAMRD00864 REMSA617300 REMYRAD2173C ROULUNDS RUBBERD2133 sbs1815204737 SEBRO2352 SWAG30910915 TEXTAR92057800 TEXTAR98200057801 TRISCAN812029110 TRUSTINGDF630 VAICOV10-40019 VALEO186268 ZIMMERMANN100121800 ZIMMERMANN100121850

OE Numbers — AUDI

895 615 301
MakeModelType / Engine YearsCCkWHP
AUDI 80 B4 Avant (8C5) 2.3 E quattro 1991 – 1996 2309 98 133
AUDI 80 B4 Avant (8C5) 2.0 E 16V 1991 – 1996 1984 103 140
AUDI 80 B4 Avant (8C5) 2.0 E 1991 – 1996 1984 85 115
AUDI 80 B4 Avant (8C5) 2.0 1991 – 1996 1984 66 90
AUDI 80 B4 Avant (8C5) 2.3 E 1991 – 1996 2309 98 133
AUDI 80 B4 Avant (8C5) 2.6 1991 – 1996 2598 110 150
AUDI 80 B4 Avant (8C5) S2 quattro 1991 – 1996 2226 169 230
AUDI 80 B4 Avant (8C5) 2.6 quattro 1991 – 1996 2598 110 150
AUDI 80 B4 Avant (8C5) 2.8 quattro 1991 – 1996 2771 128 174
AUDI 80 B4 Avant (8C5) RS2 quattro 1991 – 1996 2226 232 315
AUDI 80 B4 Avant (8C5) 1.9 TDI 1991 – 1996 1896 66 90
AUDI 80 B4 Avant (8C5) 1.6 E 1991 – 1996 1595 74 101
AUDI 80 B4 Avant (8C5) 2.8 1991 – 1996 2771 128 174
AUDI 80 B4 Avant (8C5) 2.0 E 16V quattro 1991 – 1996 1984 103 140
AUDI 80 B4 Avant (8C5) 1.9 TD 1991 – 1996 1896 55 75
AUDI 80 B4 Avant (8C5) 2.0 quattro 1991 – 1996 1984 79 107
AUDI 80 B4 Saloon (8C2) 2.0 E 16V 1991 – 1995 1984 101 137
AUDI 80 B4 Saloon (8C2) 2.0 quattro 1991 – 1995 1984 79 107
AUDI 80 B4 Saloon (8C2) 1.9 TD 1991 – 1995 1896 55 75
AUDI 80 B4 Saloon (8C2) 2.8 quattro 1991 – 1995 2771 128 174
AUDI 80 B4 Saloon (8C2) 2.6 quattro 1991 – 1995 2598 110 150
AUDI 80 B4 Saloon (8C2) 2.3 E quattro 1991 – 1995 2309 98 133
AUDI 80 B4 Saloon (8C2) S2 quattro 1991 – 1995 2226 169 230
AUDI 80 B4 Saloon (8C2) 2.0 E quattro 1991 – 1995 1984 85 115
AUDI 80 B4 Saloon (8C2) 2.0 E 16V quattro 1991 – 1995 1984 103 140
AUDI 80 B4 Saloon (8C2) 2.8 1991 – 1995 2771 128 174
AUDI 80 B4 Saloon (8C2) 2.6 1991 – 1995 2598 110 150
AUDI 80 B4 Saloon (8C2) 2.3 E 1991 – 1995 2309 98 133
AUDI 80 B4 Saloon (8C2) 2.0 E 16V 1991 – 1995 1984 103 140
AUDI 80 B4 Saloon (8C2) 2.0 E 1991 – 1995 1984 85 115
AUDI 80 B4 Saloon (8C2) 2.0 1991 – 1995 1984 66 90
AUDI 80 B4 Saloon (8C2) 1.6 E 1991 – 1995 1595 74 101
AUDI 80 B4 Saloon (8C2) 1.6 1991 – 1995 1595 52 71
AUDI 80 B4 Saloon (8C2) 1.9 TDI 1991 – 1995 1896 66 90
