Brake Disc
Brake Disc 1 Brake Disc 2
Braking System

Brake Disc

Part No. DF2599 · SKU DF2599-TRW
Front Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

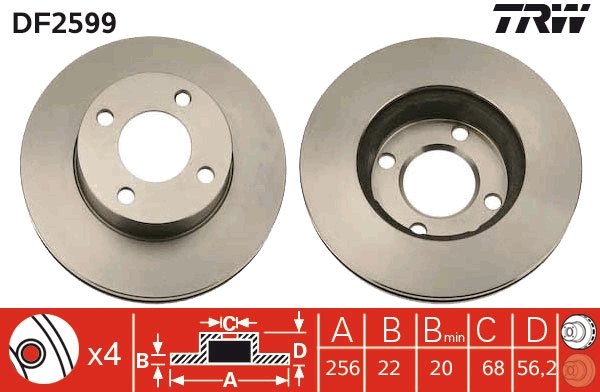

Specifications

Bolt Hole Circle Ø (mm)108
Brake Disc Thickness (mm)22
Brake Disc Type Vented
Centering Diameter (mm)68
Height (mm)56.3
Minimum thickness (mm)20
Number of Holes 4
Outer Diameter (mm)256
Thread Size 15,5
Bolt Hole Circle Ø [mm] 108, Brake Disc Thickness [mm] 22, Brake Disc Type Vented, Centering Diameter [mm] 68, Height [mm] 56,3, Minimum thickness [mm] 20, Number of Holes 4, Outer Diameter [mm] 256, Thread Size 15,5
Fits: AUDI

Interchangeable Part Numbers

A.B.S.09.5710.10 A.B.S.16096 A.P.24441 ABEXW0731 ACDelcoAC2240D AKEBONOBN-0385E AKEBONOBN-0385 APECDSK587 ATE24012201081 ATE24032201081 ATE24112201081 ATE422108 ATE522108 BENDIX561691B BENDIX561691BC BORG & BECKBBD4946 BOSCH0 986 478 550 BOSCH986478550 BRADI1.0115.2.E CAR142739 CARHPD739 DELPHIBG2668 DELPHIBG668 DELPHIBS3767 DONPCD14252 FEBI BILSTEIN10913 FERODODDF319 FERODODDF3191 FERODODDF349 FERODODRF319 FIRST LINEFBD432 FREMAXBD-4013 FTE9072470 GIRLING6025991 GRAFDF29234L HELLA8DD 355 102-431 JURID561691J JURID561691JC LEMFÖRDER14588 01 LPRA1211V MAGNETI MARELLI351011520500 MAGNETI MARELLI353613011240 MAGNETI MARELLI360406001000 MAGNETI MARELLI431602041930 MAPCO15861 METELLI230234 MEYLE115 521 1088 MGAD1034 MINTEXMDC795 NationalNBD384 NK204738 NK314738 OBTEC A/S424219V OPEN PARTSBDR1032.20 OPEN PARTSBDRS1032.25 OPTIMALBS-1770C OPTIMALBS-1770 PAGID53938 PEX140032 PILENGAV363 QH Benelux57380 QUINTON HAZELLBDC3767 QUINTON HAZELLBSF3767 RAICAMRD00865 REMSA617710 REMYRAD1954C ROULUNDS RUBBERD2240 sbs1815204738 SEBRO2377 SWAG99 91 0913 TEXTAR92054200 TEXTAR98200054201 TRISCAN812029106 TRUSTINGDF904 VAICOV10-80062 VALEO186267 WOKINGP617710 ZIMMERMANN1001214 ZIMMERMANN100121400 ZIMMERMANN100121450

OE Numbers — AUDI

895 615 301 A
MakeModelType / Engine YearsCCkWHP
AUDI 80 B4 Avant (8C5) 2.8 quattro 1991 – 1996 2771 128 174
AUDI 80 B4 Avant (8C5) RS2 quattro 1991 – 1996 2226 232 315
AUDI 80 B4 Avant (8C5) 2.3 E quattro 1991 – 1996 2309 98 133
AUDI 80 B4 Avant (8C5) 1.9 TDI 1991 – 1996 1896 66 90
AUDI 80 B4 Avant (8C5) 1.6 E 1991 – 1996 1595 74 101
AUDI 80 B4 Avant (8C5) 2.8 1991 – 1996 2771 128 174
AUDI 80 B4 Avant (8C5) 2.0 E 16V quattro 1991 – 1996 1984 103 140
AUDI 80 B4 Avant (8C5) 2.0 1991 – 1996 1984 66 90
AUDI 80 B4 Avant (8C5) 2.0 E 1991 – 1996 1984 85 115
AUDI 80 B4 Avant (8C5) 2.0 E 16V 1991 – 1996 1984 103 140
AUDI 80 B4 Avant (8C5) 2.3 E 1991 – 1996 2309 98 133
AUDI 80 B4 Avant (8C5) 1.9 TD 1991 – 1996 1896 55 75
AUDI 80 B4 Avant (8C5) 2.6 1991 – 1996 2598 110 150
AUDI 80 B4 Avant (8C5) S2 quattro 1991 – 1996 2226 169 230
AUDI 80 B4 Avant (8C5) 2.0 quattro 1991 – 1996 1984 79 107
AUDI 80 B4 Avant (8C5) 2.6 quattro 1991 – 1996 2598 110 150
AUDI 80 B4 Saloon (8C2) 2.0 E 16V 1991 – 1995 1984 101 137
AUDI 80 B4 Saloon (8C2) 2.0 E 1991 – 1995 1984 85 115
AUDI 80 B4 Saloon (8C2) 2.0 E 16V 1991 – 1995 1984 103 140
AUDI 80 B4 Saloon (8C2) 2.3 E 1991 – 1995 2309 98 133
AUDI 80 B4 Saloon (8C2) 2.6 1991 – 1995 2598 110 150
AUDI 80 B4 Saloon (8C2) 2.8 1991 – 1995 2771 128 174
AUDI 80 B4 Saloon (8C2) 2.0 1991 – 1995 1984 66 90
AUDI 80 B4 Saloon (8C2) 2.0 E 16V quattro 1991 – 1995 1984 103 140
AUDI 80 B4 Saloon (8C2) 2.0 E quattro 1991 – 1995 1984 85 115
AUDI 80 B4 Saloon (8C2) S2 quattro 1991 – 1995 2226 169 230
AUDI 80 B4 Saloon (8C2) 2.3 E quattro 1991 – 1995 2309 98 133
AUDI 80 B4 Saloon (8C2) 2.6 quattro 1991 – 1995 2598 110 150
AUDI 80 B4 Saloon (8C2) 2.8 quattro 1991 – 1995 2771 128 174
AUDI 80 B4 Saloon (8C2) 1.6 1991 – 1995 1595 52 71
AUDI 80 B4 Saloon (8C2) 1.9 TDI 1991 – 1995 1896 66 90
AUDI 80 B4 Saloon (8C2) 1.9 TD 1991 – 1995 1896 55 75
AUDI 80 B4 Saloon (8C2) 1.6 E 1991 – 1995 1595 74 101
AUDI 80 B4 Saloon (8C2) 2.0 quattro 1991 – 1995 1984 79 107
AUDI CABRIOLET B3 (8G7) 2.3 E 1991 – 2000 2309 98 133
AUDI CABRIOLET B3 (8G7) 2.0 E 1991 – 2000 1984 85 115
AUDI CABRIOLET B3 (8G7) 1.8 1991 – 2000 1781 92 125
AUDI CABRIOLET B3 (8G7) 1.9 TDI 1991 – 2000 1896 66 90
AUDI CABRIOLET B3 (8G7) 2.0 16V 1991 – 2000 1984 103 140
AUDI CABRIOLET B3 (8G7) 2.8 1991 – 2000 2771 128 174
AUDI CABRIOLET B3 (8G7) 2.6 1991 – 2000 2598 110 150
AUDI COUPE B2 (81, 855, 856) 1.8 GT 1980 – 1988 1781 82 112
AUDI COUPE B2 (81, 855, 856) 2.3 1980 – 1988 2309 98 133
AUDI COUPE B2 (81, 855, 856) 2.3 quattro 1980 – 1988 2309 98 133
AUDI COUPE B2 (81, 855, 856) 2.0 1980 – 1988 1994 83 113
AUDI COUPE B2 (81, 855, 856) 1.6 1980 – 1988 1588 55 75
AUDI COUPE B2 (81, 855, 856) 2.1 GT 1980 – 1988 2144 79 107
AUDI COUPE B2 (81, 855, 856) 1.8 GT quattro 1980 – 1988 1781 82 112
AUDI COUPE B2 (81, 855, 856) 2.2 quattro 1980 – 1988 2226 88 120
AUDI COUPE B2 (81, 855, 856) 2.2 GT 1980 – 1988 2226 88 120
AUDI COUPE B2 (81, 855, 856) 1.8 GT 1980 – 1988 1781 65 88
AUDI COUPE B2 (81, 855, 856) 2.2 quattro 1980 – 1988 2226 100 136
AUDI COUPE B2 (81, 855, 856) 1.8 1980 – 1988 1781 55 75
AUDI COUPE B2 (81, 855, 856) 1.8 GT 1980 – 1988 1781 66 90
AUDI COUPE B2 (81, 855, 856) 1.8 GT 1980 – 1988 1781 79 107
AUDI COUPE B2 (81, 855, 856) 1.9 1980 – 1988 1921 85 115
AUDI COUPE B2 (81, 855, 856) 2.2 GT 1980 – 1988 2226 100 136
AUDI COUPE B2 (81, 855, 856) 2.2 GT 1980 – 1988 2226 85 115
AUDI COUPE B2 (81, 855, 856) 2.0 1980 – 1988 1994 85 115
AUDI COUPE B2 (81, 855, 856) 2.1 GT 1980 – 1988 2144 96 131
AUDI COUPE B3 (89, 8B3) 2.0 1988 – 1996 1984 82 112
AUDI COUPE B3 (89, 8B3) 2.0 16 V 1988 – 1996 1984 101 137
AUDI COUPE B3 (89, 8B3) 2.0 20 V quattro 1988 – 1996 1994 118 160
AUDI COUPE B3 (89, 8B3) 2.0 20 V 1988 – 1996 1994 118 160
AUDI COUPE B3 (89, 8B3) 2.3 1988 – 1996 2309 100 136
AUDI COUPE B3 (89, 8B3) 2.0 1988 – 1996 1984 83 113
AUDI COUPE B3 (89, 8B3) 2.3 1988 – 1996 2309 97 132
AUDI COUPE B3 (89, 8B3) 2.2 1988 – 1996 2226 100 136
AUDI COUPE B3 (89, 8B3) 2.3 20V 1988 – 1996 2309 125 170
AUDI COUPE B3 (89, 8B3) 2.6 quattro 1988 – 1996 2598 110 150
AUDI COUPE B3 (89, 8B3) 2.3 20V quattro 1988 – 1996 2309 123 167
AUDI COUPE B3 (89, 8B3) 2.3 quattro 1988 – 1996 2309 98 134
AUDI COUPE B3 (89, 8B3) S2 quattro 1988 – 1996 2226 169 230
AUDI COUPE B3 (89, 8B3) S2 quattro 1988 – 1996 2226 162 220
AUDI COUPE B3 (89, 8B3) 2.3 20V quattro 1988 – 1996 2309 125 170
AUDI COUPE B3 (89, 8B3) 2.3 quattro 1988 – 1996 2309 100 136
AUDI COUPE B3 (89, 8B3) 2.8 1988 – 1996 2771 128 174
AUDI COUPE B3 (89, 8B3) 2.8 quattro 1988 – 1996 2771 128 174
AUDI COUPE B3 (89, 8B3) 2.6 1988 – 1996 2598 110 150
AUDI COUPE B3 (89, 8B3) 2.3 20V 1988 – 1996 2309 123 167
AUDI COUPE B3 (89, 8B3) 1.8 1988 – 1996 1781 82 112
AUDI COUPE B3 (89, 8B3) 2.3 1988 – 1996 2309 98 133
AUDI COUPE B3 (89, 8B3) 2.2 quattro 1988 – 1996 2226 100 136
AUDI COUPE B3 (89, 8B3) 2.0 16 V 1988 – 1996 1984 103 140
AUDI COUPE B3 (89, 8B3) 2.0 1988 – 1996 1984 85 115
