Braking System

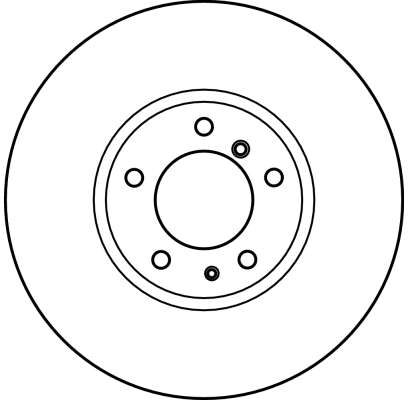

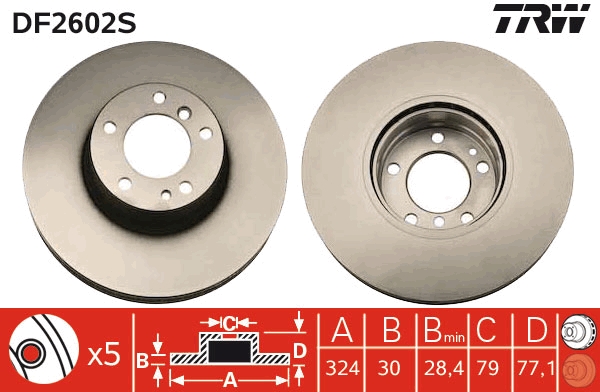

Brake Disc

Name: Brake Disc
Brand: TRW
SKU: DF2602S-TRW
Price: 40300.00 PHP
Availability: InStock

Part No. DF2602S · SKU DF2602S-TRW

Front Axle

₱40,300.00

In stock — available to order

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)	120
Brake Disc Thickness (mm)	30
Brake Disc Type Vented
Centering Diameter (mm)	79
Colour black
Height (mm)	77
Minimum thickness (mm)	28.4
Number of Holes 5
Outer Diameter (mm)	324
Surface Painted
Test Mark E190R-02C0176/0558
Thread Size 15

Bolt Hole Circle Ø [mm] 120, Brake Disc Thickness [mm] 30, Brake Disc Type Vented, Centering Diameter [mm] 79, Colour black, Height [mm] 77, Minimum thickness [mm] 28,4, Number of Holes 5, Outer Diameter [mm] 324, Surface Painted, Test Mark E190R-02C0176/0558, Thread Size 15
Fits: ALPINA, BMW

Supplier Cross-References

DELPHIBG670 FERODODDF606 ATE24013001011 HELLA PAGID8DD355127101 BREMBO9557921 TRWDF2602S

Interchangeable Part Numbers

APECDSK2007 ATE24033001011 ATE24113001011 BENDIX561553B BENDIX561553BC BORG & BECKBBD5866S BOSCH0 986 478 127 BOSCH0 986 479 116 BOSCH0 986 AB6 473 BOSCH F026 A01 406 BOSCHF026A01406 BOSCH F026 A06 414 BOSCHF026A06414 BRADI1.0634.2.4 Brake ENGINEERINGDI955076S BREMBO09.5579.10 BREMBO09557921 BREMBO09694811 CAR142103 CARHPD103 DELPHIBS4513 FEBI BILSTEIN10751 FERODODDF6061 FERODODDF833 FERODODDF8331 FERODODRF606 FERODODRF833 FIRST LINEFBD467 FTE9071294 FTE9081243 FTEBS4636 FTEBS4636HB HELLA8DD 355 102-871 HELLA8DD 355 122-082 JURID561553J JURID561553JC LEMFÖRDER21248 01 LEMFÖRDER27221 MAGNETI MARELLI351066320500 MAGNETI MARELLI353610634240 MAPCO15666 METELLI230703 METELLI230703C METZGER24947V MEYLE315 521 3023/PD MEYLE315 521 3023 MEYLE3835213023PD MINTEXMDC1260 MINTEXMDC833 NK201532 NK311532 NK341532 PAGID50426 PEX140106 QH Benelux57375 QH Benelux57827 QUINTON HAZELLBDC4636 QUINTON HAZELLBSF4636 REMSA651110 REMYRAD1999C ST-TEMPLIN0311011780 ST-TEMPLIN0311011785 SWAG20910751 TEXTAR92058300 TEXTAR92058303 TEXTAR92058305 TEXTAR92083400 TEXTAR92083403 TEXTAR98200058301 TRISCAN812011127 TRISCAN812011145 TRUCKTEC AUTOMOTIVE0834039 TRUSTINGDF544 VALEO186672 ZIMMERMANN1501271 ZIMMERMANN150127100 ZIMMERMANN150127120 ZIMMERMANN150127150 ZIMMERMANN150127152 ZIMMERMANN150127170

OE Numbers — ALPINA

34 11 1 159 602

OE Numbers — BMW

1 159 602 1 159 895 1 159 916 1 161 086 34 11 1 159 895 34 11 1 159 916 34 11 1 161 086 34 11 6 756 087 34 11 6 757 746 34 11 6 757 747 6 756 087 6 757 746 6 757 747

Make	Model	Type / Engine	Years	CC	kW	HP
BMW	5 (E39)	520 i	1995 – 2003	2171	125	170
BMW	5 (E39)	535 i	1995 – 2003	3498	180	245
BMW	5 (E39)	520 i	1995 – 2003	1990	100	136
BMW	5 (E39)	M5	1995 – 2003	4941	294	400
BMW	5 (E39)	530 d	1995 – 2003	2926	135	184
BMW	5 (E39)	525 td	1995 – 2003	2497	85	116
BMW	5 (E39)	535 i	1995 – 2003	3498	173	235
BMW	5 (E39)	540 i	1995 – 2003	4398	210	286
BMW	5 (E39)	520 d	1995 – 2003	1951	100	136
BMW	5 (E39)	525 d	1995 – 2003	2497	120	163
BMW	5 (E39)	528 i	1995 – 2003	2793	142	193
BMW	5 (E39)	523 i	1995 – 2003	2494	125	170
BMW	5 (E39)	525 tds	1995 – 2003	2497	105	143
BMW	5 (E39)	520 i	1995 – 2003	1990	110	150
BMW	5 (E39)	520 i	1995 – 2003	2171	120	163
BMW	5 (E39)	525 i	1995 – 2003	2494	141	192
BMW	5 (E39)	530 i	1995 – 2003	2979	170	231
BMW	5 (E39)	540 i	1995 – 2003	4398	216	294
BMW	5 (E39)	525 i	1995 – 2003	2494	137	186
BMW	5 (E39)	530 d	1995 – 2003	2926	142	193
BMW	5 (E39)	530 i	1995 – 2003	2979	168	228
BMW	5 Touring (E39)	520 i	1996 – 2004	1990	110	150
BMW	5 Touring (E39)	523 i	1996 – 2004	2494	120	163
BMW	5 Touring (E39)	525 tds	1996 – 2004	2497	105	143
BMW	5 Touring (E39)	520 i	1996 – 2004	2171	120	163
BMW	5 Touring (E39)	530 d	1996 – 2004	2926	135	184
BMW	5 Touring (E39)	520 i	1996 – 2004	1990	100	136
BMW	5 Touring (E39)	528 i	1996 – 2004	2793	142	193
BMW	5 Touring (E39)	540 i	1996 – 2004	4398	210	286
BMW	5 Touring (E39)	523 i	1996 – 2004	2494	125	170
BMW	5 Touring (E39)	525 i	1996 – 2004	2494	137	186
BMW	5 Touring (E39)	530 i	1996 – 2004	2979	170	231
BMW	5 Touring (E39)	520 d	1996 – 2004	1951	100	136
BMW	5 Touring (E39)	525 i	1996 – 2004	2494	141	192
BMW	5 Touring (E39)	525 d	1996 – 2004	2497	120	163
BMW	5 Touring (E39)	520 i	1996 – 2004	2171	125	170
BMW	5 Touring (E39)	530 d	1996 – 2004	2926	142	193
BMW	7 (E32)	730 i, iL	1985 – 1994	2986	138	188
BMW	7 (E32)	730 i, iL	1985 – 1994	2986	145	197
BMW	7 (E32)	730 i, iL V8	1985 – 1994	2997	160	218
BMW	7 (E32)	735 i, iL	1985 – 1994	3430	155	211
BMW	7 (E32)	735 i, iL	1985 – 1994	3430	162	220
BMW	7 (E32)	740 i, iL V8	1985 – 1994	3982	210	286
BMW	7 (E32)	750 i, iL V12	1985 – 1994	4988	220	300
BMW	7 (E38)	740 i, iL	1994 – 2001	3982	210	286
BMW	7 (E38)	750 i, iL	1994 – 2001	5379	243	330
BMW	7 (E38)	735 i, iL	1994 – 2001	3498	175	238
BMW	7 (E38)	730 i, iL	1994 – 2001	2997	155	211
BMW	7 (E38)	730 i, iL	1994 – 2001	2997	160	218
BMW	7 (E38)	740 d	1994 – 2001	3901	180	245
BMW	7 (E38)	750 i, iL	1994 – 2001	5379	240	326
BMW	7 (E38)	740 i, iL	1994 – 2001	4398	210	286
BMW	7 (E38)	730 d	1994 – 2001	2926	142	193
BMW	7 (E38)	728 i, iL	1994 – 2001	2793	142	193
BMW	7 (E38)	735 i, iL	1994 – 2001	3498	173	235
BMW	7 (E38)	725 tds	1994 – 2001	2497	105	143
BMW	7 (E38)	730 d	1994 – 2001	2926	135	184
BMW	8 (E31)	850 Ci	1990 – 1999	5379	240	326
BMW	8 (E31)	850 CSi	1990 – 1999	5576	280	380
BMW	8 (E31)	850 i, Ci	1990 – 1999	4988	220	300
BMW	8 (E31)	840 i	1990 – 1999	3982	210	286
BMW	8 (E31)	850 CSi	1990 – 1999	5576	277	377
BMW	8 (E31)	840 Ci	1990 – 1999	4398	210	286
