Brake Disc

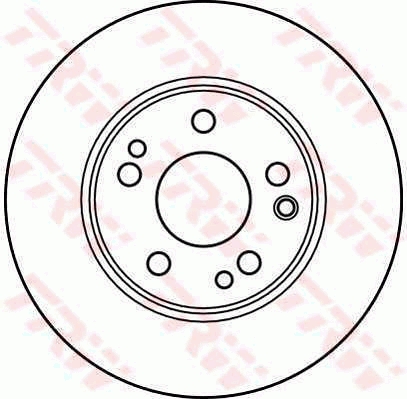

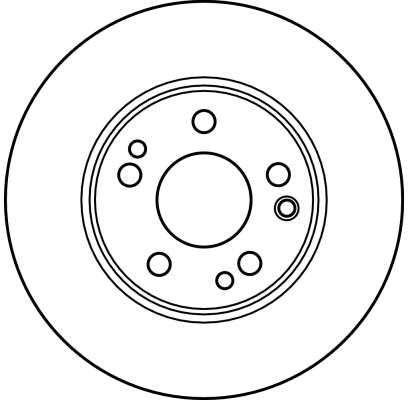

Brake Disc 1 Brake Disc 2
Braking System

Brake Disc

Part No. DF2608 · SKU DF2608-TRW
Front Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)112
Brake Disc Thickness (mm)22
Brake Disc Type Vented
Centering Diameter (mm)67
Height (mm)45
Minimum thickness (mm)19.4
Number of Holes 5
Outer Diameter (mm)284
Thread Size 15
Bolt Hole Circle Ø [mm] 112, Brake Disc Thickness [mm] 22, Brake Disc Type Vented, Centering Diameter [mm] 67, Height [mm] 45, Minimum thickness [mm] 19,4, Number of Holes 5, Outer Diameter [mm] 284, Thread Size 15
Fits: MERCEDES-BENZ

Interchangeable Part Numbers

A.B.S.15877 A.P.24533 ABEXW0732 ATE24012201341 BENDIX561484B BENDIX561876B BOSCH0 986 478 589 BOSCH986478589 BRADI1.2816.2.4 BREMBO09.5715.10 BREMBO09.5715.20 BREMBO09592620 CAR142447 CARHPD447 DELPHIBG2442 DELPHIBG2771 DELPHIBG442 DELPHIBS4303 FERODODDF308 FERODODDF728 FERODODDF7281 FTEBS4638 GRAFDF29321L HELLA8DD 355 103-061 JURID561484J JURID561876J LEMFÖRDER13427 01 METELLI230321 MEYLE015 521 2010 NK203321 NK203327 NK313321 OBTEC A/S232330V OPTIMALBS-3180C OPTIMALBS-3180 PEX140316 REMSA631810 REMYRAD2758C sbs1815203321 SEBRO5056 TEXTAR92060300 TEXTAR98200043001 TRISCAN812023136 TRUSTINGDF530 ZIMMERMANN400142950

OE Numbers — MERCEDES-BENZ

124 421 14 12 124 421 23 12 A1244211412 A1244212312
MakeModelType / Engine YearsCCkWHP
MERCEDES-BENZ 124 Saloon (W124) 500 E 1984 – 1993 4973 235 320
MERCEDES-BENZ 124 Saloon (W124) 200 (124.020) 1984 – 1993 1996 75 102
MERCEDES-BENZ 124 Saloon (W124) 200 (124.020) 1984 – 1993 1996 80 109
MERCEDES-BENZ 124 Saloon (W124) 200 E (124.021) 1984 – 1993 1996 87 118
MERCEDES-BENZ 124 Saloon (W124) 200 E (124.021) 1984 – 1993 1996 90 122
MERCEDES-BENZ 124 Saloon (W124) 230 E (124.023) 1984 – 1993 2298 97 132
MERCEDES-BENZ 124 Saloon (W124) 230 E (124.023) 1984 – 1993 2298 100 136
MERCEDES-BENZ 124 Saloon (W124) 260 E 4-matic (124.226) 1984 – 1993 2597 118 160
MERCEDES-BENZ 124 Saloon (W124) 260 E (124.026) 1984 – 1993 2597 118 160
MERCEDES-BENZ 124 Saloon (W124) 260 E (124.026) 1984 – 1993 2597 122 166
MERCEDES-BENZ 124 Saloon (W124) 260 E 4-matic (124.226) 1984 – 1993 2597 122 166
MERCEDES-BENZ 124 Saloon (W124) 300 E 1984 – 1993 2960 138 188
MERCEDES-BENZ 124 Saloon (W124) 300 E (124.030) 1984 – 1993 2960 132 180
MERCEDES-BENZ 124 Saloon (W124) 300 E 4-matic (124.230) 1984 – 1993 2960 132 180
MERCEDES-BENZ 124 Saloon (W124) 300 E 4-matic 1984 – 1993 2960 138 188
MERCEDES-BENZ 124 Saloon (W124) 300 E 1984 – 1993 2960 138 188
MERCEDES-BENZ 124 Saloon (W124) 200 D (124.120) 1984 – 1993 1997 53 72
MERCEDES-BENZ 124 Saloon (W124) 200 D (124.120) 1984 – 1993 1997 55 75
MERCEDES-BENZ 124 Saloon (W124) 250 D (124.125) 1984 – 1993 2497 66 90
MERCEDES-BENZ 124 Saloon (W124) 250 D (124.125) 1984 – 1993 2497 69 94
MERCEDES-BENZ 124 Saloon (W124) 250 Turbo-D (124.128) 1984 – 1993 2497 93 126
MERCEDES-BENZ 124 Saloon (W124) 300 D (124.130) 1984 – 1993 2996 80 109
MERCEDES-BENZ 124 Saloon (W124) 300 D 4-matic (124.330) 1984 – 1993 2996 80 109
MERCEDES-BENZ 124 Saloon (W124) 300 D (124.130) 1984 – 1993 2996 81 110
MERCEDES-BENZ 124 Saloon (W124) 300 D 4-matic (124.330) 1984 – 1993 2996 83 113
MERCEDES-BENZ 124 Saloon (W124) 300 D (124.130) 1984 – 1993 2996 83 113
MERCEDES-BENZ 124 Saloon (W124) 300 Turbo-D 4-matic (124.333) 1984 – 1993 2996 105 143
MERCEDES-BENZ 124 Saloon (W124) 300 Turbo-D 4-matic (124.333) 1984 – 1993 2996 108 147
MERCEDES-BENZ 124 Saloon (W124) 300 Turbo-D (124.133) 1984 – 1993 2996 108 147
MERCEDES-BENZ 124 Saloon (W124) 200 1984 – 1993 1996 77 105
MERCEDES-BENZ 124 Saloon (W124) 300 E-24 (124.031) 1984 – 1993 2960 162 220
MERCEDES-BENZ 124 Saloon (W124) 500 E (124.036) 1984 – 1993 4973 240 326
MERCEDES-BENZ 124 Saloon (W124) 200 E (124.019) 1984 – 1993 1998 100 136
MERCEDES-BENZ 124 Saloon (W124) 220 E (124.022) 1984 – 1993 2199 110 150
MERCEDES-BENZ 124 Saloon (W124) 280 E (124.028) 1984 – 1993 2799 145 197
MERCEDES-BENZ 124 Saloon (W124) 400 E 4.2 (124.034) 1984 – 1993 4196 205 279
MERCEDES-BENZ 124 Saloon (W124) 320 E (124.032) 1984 – 1993 3199 162 220
MERCEDES-BENZ 124 Saloon (W124) 300 Turbo-D (124.133) 1984 – 1993 2996 105 143
MERCEDES-BENZ 124 Saloon (W124) 230 E Cat (124.023) 1984 – 1993 2298 97 132
MERCEDES-BENZ 124 Saloon (W124) 200 E 1984 – 1993 1997 77 105
MERCEDES-BENZ 124 Saloon (W124) 300 E-24 AMG (124.031) 1984 – 1993 3428 200 272
MERCEDES-BENZ 124 Saloon (W124) 300 E-24 (124.031) 1984 – 1993 2960 170 231
MERCEDES-BENZ 124 Saloon (W124) 300 D 1984 – 1993 2497 90 121
MERCEDES-BENZ 124 T-Model (S124) 200 T (124.080) 1985 – 1993 1996 77 105
MERCEDES-BENZ 124 T-Model (S124) 200 T (124.080) 1985 – 1993 1996 80 109
MERCEDES-BENZ 124 T-Model (S124) 200 TE (124.081) 1985 – 1993 1996 87 118
MERCEDES-BENZ 124 T-Model (S124) 200 TE 1985 – 1993 1996 90 122
MERCEDES-BENZ 124 T-Model (S124) 230 TE Cat (124.083) 1985 – 1993 2298 97 132
MERCEDES-BENZ 124 T-Model (S124) 230 TE (124.083) 1985 – 1993 2298 100 136
MERCEDES-BENZ 124 T-Model (S124) 300 TE 4-matic (124.290) 1985 – 1993 2960 132 180
MERCEDES-BENZ 124 T-Model (S124) 300 TE (124.090) 1985 – 1993 2960 132 180
MERCEDES-BENZ 124 T-Model (S124) 300 TE (124.090) 1985 – 1993 2960 138 188
MERCEDES-BENZ 124 T-Model (S124) 300 TE 4-matic (124.290) 1985 – 1993 2960 138 188
MERCEDES-BENZ 124 T-Model (S124) 200 T D (124.180) 1985 – 1993 1997 53 72
MERCEDES-BENZ 124 T-Model (S124) 200 T D (124.180) 1985 – 1993 1997 55 75
MERCEDES-BENZ 124 T-Model (S124) 250 T D (124.185) 1985 – 1993 2497 66 90
MERCEDES-BENZ 124 T-Model (S124) 250 T D (124.185) 1985 – 1993 2497 69 94
MERCEDES-BENZ 124 T-Model (S124) 300 T D (124.190) 1985 – 1993 2996 80 109
MERCEDES-BENZ 124 T-Model (S124) 300 T D (124.190) 1985 – 1993 2996 81 110
MERCEDES-BENZ 124 T-Model (S124) 300 T D (124.190) 1985 – 1993 2996 83 113
MERCEDES-BENZ 124 T-Model (S124) 300 T Turbo-D 4-matic (124.393) 1985 – 1993 2996 105 143
MERCEDES-BENZ 124 T-Model (S124) 300 T Turbo-D 4-matic (124.393) 1985 – 1993 2996 108 147
MERCEDES-BENZ 124 T-Model (S124) 300 TE-24 (124.091) 1985 – 1993 2960 162 220
MERCEDES-BENZ 124 T-Model (S124) 260 TE FGST. 1985 – 1993 2597 118 160
MERCEDES-BENZ 124 T-Model (S124) 260 TE FGST. 1985 – 1993 2597 122 166
MERCEDES-BENZ 124 T-Model (S124) 220 TE (124.082) 1985 – 1993 2199 110 150
MERCEDES-BENZ 124 T-Model (S124) 300 T Turbo-D 1985 – 1993 2996 105 143
MERCEDES-BENZ 124 T-Model (S124) 300 T Turbo-D (124.193) 1985 – 1993 2996 108 147
MERCEDES-BENZ 124 T-Model (S124) 320 TE (124.092) 1985 – 1993 3199 162 220
MERCEDES-BENZ 124 T-Model (S124) 280 TE (124.088) 1985 – 1993 2799 145 197
MERCEDES-BENZ 124 T-Model (S124) 200 TE (124.079) 1985 – 1993 1998 100 136
MERCEDES-BENZ 124 T-Model (S124) 230 TE (124.083) 1985 – 1993 2298 97 132
MERCEDES-BENZ 124 T-Model (S124) 200 T 1985 – 1993 1997 77 105
MERCEDES-BENZ 124 T-Model (S124) 300 TD T 1985 – 1993 2996 100 136
MERCEDES-BENZ 124 T-Model (S124) 250 TD Turbo (124.188) 1985 – 1993 2497 93 126
MERCEDES-BENZ 124 T-Model (S124) 300 TE-24 (124.091) 1985 – 1993 2960 170 231
MERCEDES-BENZ E-CLASS (W124) E 250 D (124.126, 124.129) 1993 – 1996 2497 83 113
MERCEDES-BENZ E-CLASS (W124) E 300 D (124.131) 1993 – 1996 2996 100 136
MERCEDES-BENZ E-CLASS (W124) E 200 (124.019) 1993 – 1996 1998 100 136
MERCEDES-BENZ E-CLASS (W124) E 220 (124.022) 1993 – 1996 2199 110 150
MERCEDES-BENZ E-CLASS (W124) E 280 (124.029) 1993 – 1996 2799 142 193
MERCEDES-BENZ E-CLASS (W124) E 280 (124.028) 1993 – 1996 2799 145 197
MERCEDES-BENZ E-CLASS (W124) E 320 (124.032) 1993 – 1996 3199 162 220
MERCEDES-BENZ E-CLASS (W124) E 420 (124.034) 1993 – 1996 4196 205 279
MERCEDES-BENZ E-CLASS (W124) E 500 (124.036) 1993 – 1996 4973 235 320
MERCEDES-BENZ E-CLASS (W124) E 200 D (124.120) 1993 – 1996 1997 55 75
MERCEDES-BENZ E-CLASS (W124) E 250 Turbo-D (124.128) 1993 – 1996 2497 93 126
MERCEDES-BENZ E-CLASS (W124) E 300 Turbo-D 4-matic (124.333) 1993 – 1996 2996 108 147
MERCEDES-BENZ E-CLASS (W124) E 300 Turbo-D (124.133) 1993 – 1996 2996 108 147
MERCEDES-BENZ E-CLASS (W124) E 300 4-matic (124.230) 1993 – 1996 2960 132 180
MERCEDES-BENZ E-CLASS (W124) E 60 AMG (124.036) 1993 – 1996 5956 280 381
MERCEDES-BENZ E-CLASS (W124) E 420 (124.034) 1993 – 1996 4196 125 170
MERCEDES-BENZ E-CLASS (W124) E 500 (124.036) 1993 – 1996 4973 240 326
MERCEDES-BENZ E-CLASS T-Model (S124) E 300 TD (124.191) 1993 – 1996 2996 100 136
MERCEDES-BENZ E-CLASS T-Model (S124) E 200 T (124.079) 1993 – 1996 1998 100 136
MERCEDES-BENZ E-CLASS T-Model (S124) E 220 T (124.082) 1993 – 1996 2199 110 150
MERCEDES-BENZ E-CLASS T-Model (S124) E 280 T (124.088) 1993 – 1996 2799 145 197
MERCEDES-BENZ E-CLASS T-Model (S124) E 320 T (124.092) 1993 – 1996 3199 162 220
MERCEDES-BENZ E-CLASS T-Model (S124) E 250 TD (124.186) 1993 – 1996 2497 83 113
MERCEDES-BENZ E-CLASS T-Model (S124) E 280 T (124.088) 1993 – 1996 2799 142 193
MERCEDES-BENZ E-CLASS T-Model (S124) E 36 T AMG (124.092) 1993 – 1996 3606 200 272
MERCEDES-BENZ E-CLASS T-Model (S124) E 300 T Turbo-D (124.193) 1993 – 1996 2996 108 147
MERCEDES-BENZ E-CLASS T-Model (S124) E 300 T 4-matic (124.290) 1993 – 1996 2960 132 180
MERCEDES-BENZ E-CLASS T-Model (S124) E 300 T Turbo-D 4-matic (124.393) 1993 – 1996 2996 108 147
MERCEDES-BENZ E-CLASS T-Model (S124) E 250 Turbo D 1993 – 1996 2497 93 126
MERCEDES-BENZ E-CLASS T-Model (S124) E 300 TD (124.190) 1993 – 1996 2996 80 109
