Brake Disc
Brake Disc 1 Brake Disc 2
Braking System

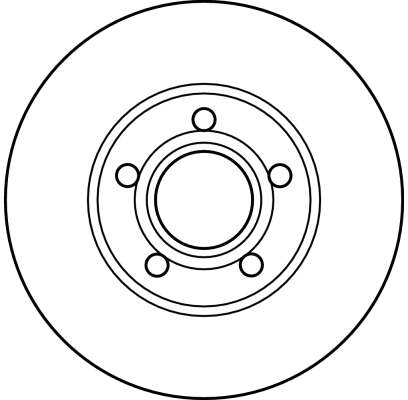

Brake Disc

Part No. DF2626 · SKU DF2626-TRW
Front Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)112
Brake Disc Thickness (mm)25
Brake Disc Type Vented
Centering Diameter (mm)68
Height (mm)46.3
Minimum thickness (mm)23
Number of Holes 5
Outer Diameter (mm)276
Thread Size 15,5
Bolt Hole Circle Ø [mm] 112, Brake Disc Thickness [mm] 25, Brake Disc Type Vented, Centering Diameter [mm] 68, Height [mm] 46,3, Minimum thickness [mm] 23, Number of Holes 5, Outer Diameter [mm] 276, Thread Size 15,5
Fits: AUDI

Interchangeable Part Numbers

A.B.S.15936 A.P.24448 ABEXW0738 ACDelcoAC2455D AKEBONOBN-1068E AKEBONOBN-1068 APECDSK542 ATE24012501021 ATE24112501021 ATE425102 BENDIX561471B BOSCH0 986 478 229 BOSCH986478229 BRADI1.0111.2.4 BREMBO09.5734.10 CAR142733 CARHPD733 DELPHIBG2518 DELPHIBG518 DONPCD15812 FEBI BILSTEIN08458 FERODODDF311 FERODODDF3111 FIRST LINEFBD028 FTEBS3635 GIRLING6026261 HELLA8DD 355 101-361 JURID561471J KAWE6268 10 LEMFÖRDER13657 01 LPRA1191V MAGNETI MARELLI353610111240 METELLI230438 MEYLE115 521 1008/PD MEYLE115 521 1008 MGAD1238 NationalNBD176 NK204751 OBTEC A/S424212V PAGID53941 PEX140028 PILENGAV368 QH Benelux52373 QUINTON HAZELLBDC3635 QUINTON HAZELLBSF3635 RAICAMRD00878 ROULUNDS RUBBERD2455 sbs1815204751 SEBRO2375 SWAG30 90 8458 TEXTAR92037200 TEXTAR98200037201 TRISCAN812029132 VAICOV10-80050 VALEO186272 WOKINGD6268.10 WOKINGP626810 ZIMMERMANN1001210 ZIMMERMANN100121000 ZIMMERMANN100121050

OE Numbers — AUDI

447 615 301 A 447 615 301 B
MakeModelType / Engine YearsCCkWHP
AUDI 100 C3 Avant (445, 446) 1.8 Cat quattro 1982 – 1990 1781 66 90
AUDI 100 C3 Avant (445, 446) 2.0 TD 1982 – 1990 1986 74 100
AUDI 100 C3 Avant (445, 446) 2.2 Cat quattro 1982 – 1990 2226 101 137
AUDI 100 C3 Avant (445, 446) 2.0 TD 1982 – 1990 1986 64 87
AUDI 100 C3 Avant (445, 446) 2.2 Cat 1982 – 1990 2226 101 137
AUDI 100 C3 Avant (445, 446) 2.0 E 1982 – 1990 1994 85 115
AUDI 100 C3 Avant (445, 446) 2.0 D 1982 – 1990 1986 51 70
AUDI 100 C3 Avant (445, 446) 1.8 quattro 1982 – 1990 1781 66 90
AUDI 100 C3 Avant (445, 446) 2.3 1982 – 1990 2309 100 136
AUDI 100 C3 Avant (445, 446) 2.2 Turbo 1982 – 1990 2226 121 165
AUDI 100 C3 Avant (445, 446) 1.8 Cat 1982 – 1990 1781 66 90
AUDI 100 C3 Avant (445, 446) 1.8 1982 – 1990 1781 55 75
AUDI 100 C3 Avant (445, 446) 1.8 1982 – 1990 1781 65 88
AUDI 100 C3 Avant (445, 446) 1.8 1982 – 1990 1781 66 90
AUDI 100 C3 Avant (445, 446) 2.0 1982 – 1990 1994 83 113
AUDI 100 C3 Avant (445, 446) 2.0 E Cat 1982 – 1990 1994 85 115
AUDI 100 C3 Avant (445, 446) 2.1 1982 – 1990 2144 100 136
AUDI 100 C3 Avant (445, 446) 2.2 1982 – 1990 2226 85 115
AUDI 100 C3 Avant (445, 446) 2.2 1982 – 1990 2226 101 137
AUDI 100 C3 Avant (445, 446) 2.3 quattro 1982 – 1990 2309 98 133
AUDI 100 C3 Avant (445, 446) 2.2 1982 – 1990 2144 79 107
AUDI 100 C3 Avant (445, 446) 2.2 E quattro 1982 – 1990 2226 88 120
AUDI 100 C3 Avant (445, 446) 2.4 D 1982 – 1990 2370 60 82
AUDI 100 C3 Avant (445, 446) 1.9 1982 – 1990 1921 74 100
AUDI 100 C3 Avant (445, 446) 2.3 1982 – 1990 2309 97 132
AUDI 100 C3 Avant (445, 446) 2.2 quattro 1982 – 1990 2226 117 159
AUDI 100 C3 Avant (445, 446) 1.8 quattro 1982 – 1990 1781 65 88
AUDI 100 C3 Avant (445, 446) 2.3 E quattro 1982 – 1990 2309 100 136
AUDI 100 C3 Avant (445, 446) 2.2 quattro 1982 – 1990 2226 118 160
AUDI 100 C3 Avant (445, 446) 2.2 1982 – 1990 2226 82 112
AUDI 100 C3 Avant (445, 446) 2.2 Turbo quattro 1982 – 1990 2226 121 165
AUDI 100 C3 Avant (445, 446) 2.2 quattro 1982 – 1990 2226 101 137
AUDI 100 C3 Avant (445, 446) 2.1 1982 – 1990 2144 96 131
AUDI 100 C3 Avant (445, 446) 2.3 1982 – 1990 2309 98 133
AUDI 100 C3 Avant (445, 446) 2.5 TDI 1982 – 1990 2461 88 120
AUDI 100 C3 Saloon (443, 444) 2.2 E quattro 1982 – 1991 2226 88 120
AUDI 100 C3 Saloon (443, 444) 1.8 Cat 1982 – 1991 1781 66 90
AUDI 100 C3 Saloon (443, 444) 1.8 1982 – 1991 1781 66 90
AUDI 100 C3 Saloon (443, 444) 1.8 quattro 1982 – 1991 1781 66 90
AUDI 100 C3 Saloon (443, 444) 2.0 1982 – 1991 1994 85 115
AUDI 100 C3 Saloon (443, 444) 2.2 Cat quattro 1982 – 1991 2226 101 137
AUDI 100 C3 Saloon (443, 444) 2.2 Cat 1982 – 1991 2226 101 137
AUDI 100 C3 Saloon (443, 444) 2.2 1982 – 1991 2144 79 107
AUDI 100 C3 Saloon (443, 444) 2.2 1982 – 1991 2144 96 130
AUDI 100 C3 Saloon (443, 444) 2.2 quattro 1982 – 1991 2226 117 159
AUDI 100 C3 Saloon (443, 444) 2.1 1982 – 1991 2144 75 102
AUDI 100 C3 Saloon (443, 444) 2.2 quattro 1982 – 1991 2226 118 160
AUDI 100 C3 Saloon (443, 444) 2.2 1982 – 1991 2226 118 160
AUDI 100 C3 Saloon (443, 444) 2.2 1982 – 1991 2226 117 159
AUDI 100 C3 Saloon (443, 444) 2.3 1982 – 1991 2309 97 132
AUDI 100 C3 Saloon (443, 444) 2.3 quattro 1982 – 1991 2309 97 132
AUDI 100 C3 Saloon (443, 444) 2.2 quattro 1982 – 1991 2144 118 160
AUDI 100 C3 Saloon (443, 444) 2.0 D 1982 – 1991 1986 66 90
AUDI 100 C3 Saloon (443, 444) 2.0 D 1982 – 1991 1986 51 70
AUDI 100 C3 Saloon (443, 444) 2.3 E quattro 1982 – 1991 2309 100 136
AUDI 100 C3 Saloon (443, 444) 2.2 E Turbo quattro 1982 – 1991 2226 121 165
AUDI 100 C3 Saloon (443, 444) 2.2 quattro 1982 – 1991 2226 101 137
AUDI 100 C3 Saloon (443, 444) 1.8 Cat quattro 1982 – 1991 1781 66 90
AUDI 100 C3 Saloon (443, 444) 1.8 quattro 1982 – 1991 1781 65 88
AUDI 100 C3 Saloon (443, 444) 2.3 E 1982 – 1991 2309 98 133
AUDI 100 C3 Saloon (443, 444) 2.5 TDI 1982 – 1991 2461 88 120
AUDI 100 C3 Saloon (443, 444) 2.0 D Turbo 1982 – 1991 1986 74 100
AUDI 100 C3 Saloon (443, 444) 2.0 D Turbo 1982 – 1991 1986 64 87
AUDI 100 C3 Saloon (443, 444) 1.8 1982 – 1991 1781 55 75
AUDI 100 C3 Saloon (443, 444) 2.3 E 1982 – 1991 2309 100 136
AUDI 100 C3 Saloon (443, 444) 2.2 Turbo 1982 – 1991 2226 121 165
AUDI 100 C3 Saloon (443, 444) 2.2 1982 – 1991 2226 101 137
AUDI 100 C3 Saloon (443, 444) 2.2 1982 – 1991 2226 85 115
AUDI 100 C3 Saloon (443, 444) 2.1 1982 – 1991 2144 100 136
AUDI 100 C3 Saloon (443, 444) 2.0 Cat 1982 – 1991 1994 85 115
AUDI 100 C3 Saloon (443, 444) 2.0 1982 – 1991 1994 83 113
AUDI 100 C3 Saloon (443, 444) 1.9 1982 – 1991 1921 74 100
AUDI 100 C3 Saloon (443, 444) 1.8 1982 – 1991 1781 65 88
AUDI 100 C3 Saloon (443, 444) 2.4 D 1982 – 1991 2370 60 82
AUDI 100 C3 Saloon (443, 444) 2.3 quattro 1982 – 1991 2309 98 133
AUDI 200 C3 Avant (447, 448) 2.3 1983 – 1991 2309 100 136
AUDI 200 C3 Avant (447, 448) 2.2 Turbo 1983 – 1991 2226 121 165
AUDI 200 C3 Avant (447, 448) 2.2 20V Turbo quattro 1983 – 1991 2226 162 220
AUDI 200 C3 Avant (447, 448) 2.2 Turbo quattro 1983 – 1991 2226 147 200
AUDI 200 C3 Avant (447, 448) 2.2 Turbo quattro 1983 – 1991 2226 121 165
AUDI 200 C3 Avant (447, 448) 2.1 Turbo quattro 1983 – 1991 2144 134 182
AUDI 200 C3 Saloon (447, 448) 2.2 20V Turbo quattro 1983 – 1991 2226 162 220
AUDI 200 C3 Saloon (447, 448) 2.2 Turbo quattro 1983 – 1991 2226 147 200
AUDI 200 C3 Saloon (447, 448) 2.2 Turbo 1983 – 1991 2226 140 190
AUDI 200 C3 Saloon (447, 448) 2.2 Turbo 1983 – 1991 2226 147 200
AUDI 200 C3 Saloon (447, 448) 2.2 Turbo quattro 1983 – 1991 2226 121 165
AUDI 200 C3 Saloon (447, 448) 2.1 Turbo quattro 1983 – 1991 2144 134 182
AUDI 200 C3 Saloon (447, 448) 2.2 Turbo 1983 – 1991 2226 121 165
AUDI 200 C3 Saloon (447, 448) 2.2 1983 – 1991 2226 101 137
AUDI 200 C3 Saloon (447, 448) 2.1 Turbo 1983 – 1991 2144 134 182
AUDI 200 C3 Saloon (447, 448) 2.1 5E 1983 – 1991 2144 100 136
AUDI 200 C3 Saloon (447, 448) 2.3 1983 – 1991 2309 100 136
AUDI QUATTRO (85) 2.1 Turbo 1980 – 1991 2144 147 200
AUDI QUATTRO (85) 2.1 Turbo quattro 1980 – 1991 2144 119 162
AUDI QUATTRO (85) 2.2 20V Turbo 1980 – 1991 2226 162 220
AUDI QUATTRO (85) 2.2 Turbo 1980 – 1991 2226 147 200
AUDI QUATTRO (85) 2.1 20V Turbo 1980 – 1991 2144 225 306
