TRW
Braking System
Brake Disc
Part No.
DF2630
·
SKU
DF2630-TRW
Price on request
Currently out of stock
Get notified when this part is back in stock:
Genuine & OEM parts
Nationwide delivery
Easy returns

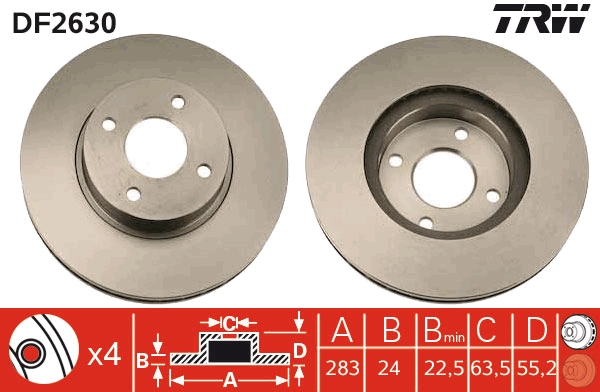

Specifications
| Bolt Hole Circle Ø (mm) | 108 |
| Brake Disc Thickness (mm) | 24 |
| Brake Disc Type Vented |
| Centering Diameter (mm) | 63 |
| Height (mm) | 55 |
| Minimum thickness (mm) | 22.5 |
| Number of Holes 4 |
| Outer Diameter (mm) | 283 |
| Thread Size 14 |
Bolt Hole Circle Ø [mm] 108, Brake Disc Thickness [mm] 24, Brake Disc Type Vented, Centering Diameter [mm] 63, Height [mm] 55, Minimum thickness [mm] 22,5, Number of Holes 4, Outer Diameter [mm] 283, Thread Size 14
Interchangeable Part Numbers
A.B.S.16071
APECDSK2492
BENDIX561376B
BOSCH0 986 478 814
BOSCH986478814
BRADI1.1725.2.4
BREMBO09A29310
DELPHIBG2536
DELPHIBG536
FERODODDF384
FIRST LINEFBD440
GIRLING6026301
JURID561376J
LEMFÖRDER16845 01
PEX140188
TEXTAR92037700
TEXTAR98200037701
ZIMMERMANN2501329
OE Numbers — FORD
1637618
1648717
5022665
V88BX-1125-AA
