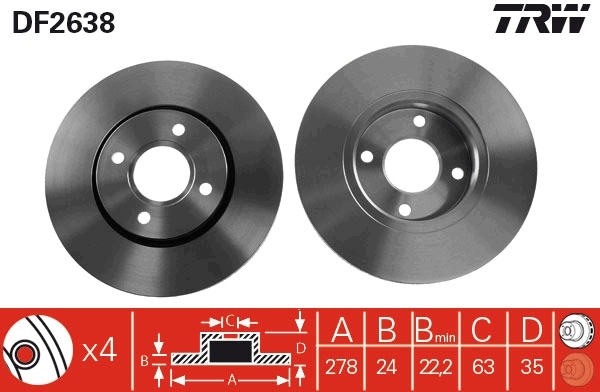

Specifications

Bolt Hole Circle Ø (mm)	108
Brake Disc Thickness (mm)	24
Brake Disc Type Vented
Centering Diameter (mm)	63
Height (mm)	35
Minimum thickness (mm)	22.4
Number of Holes 4
Outer Diameter (mm)	278
Thread Size 14

Bolt Hole Circle Ø [mm] 108, Brake Disc Thickness [mm] 24, Brake Disc Type Vented, Centering Diameter [mm] 63, Height [mm] 35, Minimum thickness [mm] 22,4, Number of Holes 4, Outer Diameter [mm] 278, Thread Size 14

Supplier Cross-References

TEXTAR92131300 FERODODDF337 JURID561699J TRWDF2638 BOSCH986478670 FEBI BILSTEIN10699

Interchangeable Part Numbers

A.B.S.16228 ATE24012401481 BENDIX561699B BENDIX561710B BOSCH 0 986 478670 BOSCH0986478670 BOSCH 0 986 478822 BOSCH0986478822 BOSCH986478822 BRADI1.1736.2.4 BRADI1173924 DELPHIBG2757 DELPHIBG2813 DELPHIBG757 FERODODDF336 FERODODDF3371 FERODODRF337 FIRST LINEFBD482 GIRLING6026381 HELLA 8DD 355110-981 HELLA8DD355110981 JURID561710J KAWE 693410 KAWE693410 LPRF1441V MAGNETI MARELLI353611736240 MINTEXMDC788 NationalNBD207 NationalNBD300 NK202553 NK312553 PAGID54313 PEX140193 PEX140197 QH Benelux57558 QUINTON HAZELLBDC3806 QUINTON HAZELLBDC4329 QUINTON HAZELLBSF3806 QUINTON HAZELLBSF4329 TRUSTINGDF674 TRUSTINGDF777 WOKINGD6934.10

OE Numbers — FORD

1661467 1664467 5024174 5026674 V89BX-1125-AC V89BX-1125-BA
