Braking System

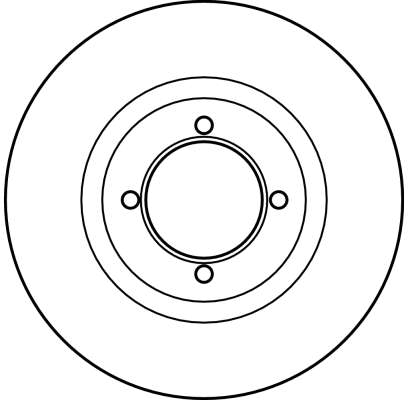

Brake Disc

Name: Brake Disc
Brand: TRW
SKU: DF2642-TRW
Availability: OutOfStock

Part No. DF2642 · SKU DF2642-TRW

Price on request

Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)	92
Brake Disc Thickness (mm)	23
Brake Disc Type Vented
Centering Diameter (mm)	73
Height (mm)	56
Minimum thickness (mm)	20
Number of Holes 4
Outer Diameter (mm)	246
Thread Size 11

Bolt Hole Circle Ø [mm] 92, Brake Disc Thickness [mm] 23, Brake Disc Type Vented, Centering Diameter [mm] 73, Height [mm] 56, Minimum thickness [mm] 20, Number of Holes 4, Outer Diameter [mm] 246, Thread Size 11

Interchangeable Part Numbers

ABEXW0739 ATE24012301001 ATE423100 BENDIX561404B BOSCH0 986 478 264 BOSCH986478264 BRADI1.3413.2.4 BREMBO09.5735.10 DELPHIBG2570 DELPHIBG570 DELPHIBS3687 FERODODDF305 FERODODDF3051 FERODODDF3061 FIRST LINEFBD358 HELLA8DD 355 101-201 JURID561404J LEMFÖRDER17311 01 NK203614 NK313614 OBTEC A/S252522V PAGID52422 PEX140426 QUINTON HAZELLBDC3687 SEBRO5155 TEXTAR92035700 TEXTAR98200035701 TRISCAN812024109 TRUSTINGDF469 ZIMMERMANN4301457 ZIMMERMANN430145700 ZIMMERMANN430145752

OE Numbers — OPEL

5 69 035 5 69 036 90009369 90009389 90009433
