Brake Disc

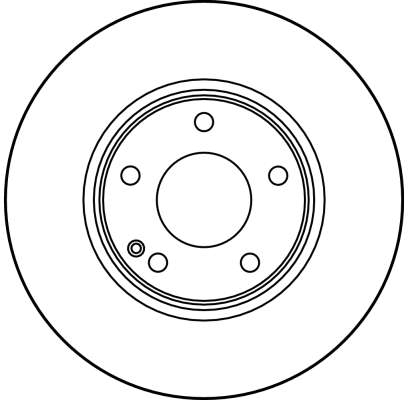

Brake Disc 1 Brake Disc 2
Braking System

Brake Disc

Part No. DF2656 · SKU DF2656-TRW
Front Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)112
Brake Disc Thickness (mm)22
Brake Disc Type Vented
Centering Diameter (mm)67
Colour black
Height (mm)43.5
Minimum thickness (mm)19.4
Number of Holes 5
Outer Diameter (mm)284
Surface Painted
Test Mark E1 90R-02 C0176/0695
Thread Size 13,4
Bolt Hole Circle Ø [mm] 112, Brake Disc Thickness [mm] 22, Brake Disc Type Vented, Centering Diameter [mm] 67, Colour black, Height [mm] 43,5, Minimum thickness [mm] 19,4, Number of Holes 5, Outer Diameter [mm] 284, Surface Painted, Test Mark E1 90R-02 C0176/0695, Thread Size 13,4
Fits: MERCEDES-BENZ

Interchangeable Part Numbers

A.B.S.16181 A.P.24480E ABEXW0655 ACDelcoAC2143D APECDSK697 ATE24012201321 ATE24032201321 ATE24112201321 ATE422132 ATE522132 BENDIX561697B BENDIX561697BC BORG & BECKBBD5000 BOSCH 0 986 478301 BOSCH0986478301 BOSCH986478301 BRADI1.2809.2.5 Brake ENGINEERINGDI955289 BREMBO09.4869.20 BREMBO09.4869.40 BREMBO09486941 BREMBO09486944 CAR142471 CARHPD471 DBA AustraliaDBA264 DELPHIBG2768 DELPHIBG768 DELPHIBS3839 DONPCD12002 FEBI BILSTEIN08129 FERODODDF588 FERODODDF5881 FERODODDF588C FERODODDF588C1 FERODODDF588X FERODODRF588 FIRST LINEFBD505 FTE9072024 FTE9082130 FTEBS3839H FTEBS3839HB GIRLING6026561 GRAFDF29314L HELLA 8DD 355102-961 HELLA8DD355102961 HELLA 8DD 355102-971 HELLA8DD355102971 HELLA 8DD 355102-972 HELLA8DD355102972 HELLA 8DD 355123-991 HELLA8DD355123991 HELLA 8DD 355127-121 HELLA8DD355127121 JURID561697J JURID561697JC LEMFÖRDER 1107303 LEMFÖRDER1107303 LPRM2371V MAGNETI MARELLI353612809250 MAGNETI MARELLI360704020800 MAPCO15753 MAPCO157532 METELLI23-0314C METELLI230314 METZGER6110135 METZGER631310 MEYLE 015 5212027/PD MEYLE0155212027PD MEYLE 015 5212027 MEYLE0155212027 MEYLE0155210035 MEYLE0155210035PD MGAD1114 MINTEXMDC741 NationalNBD527 NK203317 NK303317 NK313317 OBTEC A/S232311V OBTEC A/S815232311 OPTIMALBS-3131C OPTIMALBS-3131 PAGID52118 PAGID52118PRO PEX140309 PEX140309N PILENGAV195 QH Benelux57522 QUINTON HAZELL844501 QUINTON HAZELLBDC3839 QUINTON HAZELLBSF3839 REMYRAD1483C ROULUNDS RUBBERD2143 ST-TEMPLIN0311020470 ST-TEMPLIN0311020475 SWAG10908129 TEXTAR92059400 TEXTAR92059403 TEXTAR92059405 TEXTAR98200059401 TRISCAN812023119 TRUCKTEC AUTOMOTIVE0235036 TRUSTINGDF243 VAICOV30-80020 VALEO186280 ZIMMERMANN4001426 ZIMMERMANN400142600 ZIMMERMANN400142620 ZIMMERMANN400142650 ZIMMERMANN400142652

OE Numbers — MERCEDES-BENZ 202 421 07

12

OE Numbers — MERCEDES-BENZ

2024210712 2024210912 202421091264 A2024210712 A2024210912 A202421091264
MakeModelType / Engine YearsCCkWHP
MERCEDES-BENZ C-CLASS (W202) C 220 D (202.121) 1993 – 2000 2155 70 95
MERCEDES-BENZ C-CLASS (W202) C 43 AMG 1993 – 2000 4266 205 279
MERCEDES-BENZ C-CLASS (W202) C 230 (202.024) 1993 – 2000 2295 138 188
MERCEDES-BENZ C-CLASS (W202) C 36 AMG (202.028) 1993 – 2000 3606 200 272
MERCEDES-BENZ C-CLASS (W202) C 220 D (202.021) 1993 – 2000 2155 55 75
MERCEDES-BENZ C-CLASS (W202) C 200 CDI (202.134) 1993 – 2000 2151 75 102
MERCEDES-BENZ C-CLASS (W202) C 220 CDI (202.133) 1993 – 2000 2151 92 125
MERCEDES-BENZ C-CLASS (W202) C 43 AMG (202.033) 1993 – 2000 4266 225 306
MERCEDES-BENZ C-CLASS (W202) C 280 (202.029) 1993 – 2000 2799 145 197
MERCEDES-BENZ C-CLASS (W202) C 240 (202.026) 1993 – 2000 2398 125 170
MERCEDES-BENZ C-CLASS (W202) C 200 Kompressor (202.025) 1993 – 2000 1998 141 192
MERCEDES-BENZ C-CLASS (W202) C 200 D (202.122) 1993 – 2000 1997 65 88
MERCEDES-BENZ C-CLASS (W202) C 230 (202.023) 1993 – 2000 2295 110 150
MERCEDES-BENZ C-CLASS (W202) C 200 (202.020) 1993 – 2000 1998 100 136
MERCEDES-BENZ C-CLASS (W202) C 200 D (202.120) 1993 – 2000 1997 55 75
MERCEDES-BENZ C-CLASS (W202) C 250 D (202.125) 1993 – 2000 2497 83 113
MERCEDES-BENZ C-CLASS (W202) C 180 (202.018) 1993 – 2000 1799 90 122
MERCEDES-BENZ C-CLASS (W202) C 220 (202.022) 1993 – 2000 2199 110 150
MERCEDES-BENZ C-CLASS (W202) C 280 (202.028) 1993 – 2000 2799 142 193
MERCEDES-BENZ C-CLASS (W202) C 36 AMG (202.028) 1993 – 2000 3606 206 280
MERCEDES-BENZ C-CLASS (W202) C 180 (202.018) 1993 – 2000 1799 89 121
MERCEDES-BENZ C-CLASS (W202) C 230 Kompressor (202.024) 1993 – 2000 2295 142 193
MERCEDES-BENZ C-CLASS (W202) C 200 Kompressor (202.025) 1993 – 2000 1998 132 180
MERCEDES-BENZ C-CLASS (W202) C 250 Turbo-D (202.128) 1993 – 2000 2497 110 150
MERCEDES-BENZ C-CLASS T-Model (S202) C 200 T CDI (202.194) 1996 – 2001 2151 75 102
MERCEDES-BENZ C-CLASS T-Model (S202) C 220 T D (202.182) 1996 – 2001 2155 70 95
MERCEDES-BENZ C-CLASS T-Model (S202) C 250 T Turbo-D (202.188) 1996 – 2001 2497 110 150
MERCEDES-BENZ C-CLASS T-Model (S202) C 180 T (202.078) 1996 – 2001 1799 90 122
MERCEDES-BENZ C-CLASS T-Model (S202) C 240 T (202.088) 1996 – 2001 2597 125 170
MERCEDES-BENZ C-CLASS T-Model (S202) C 200 T Kompressor (202.087) 1996 – 2001 1998 120 163
MERCEDES-BENZ C-CLASS T-Model (S202) C 180 T (202.081) 1996 – 2001 1998 95 129
MERCEDES-BENZ C-CLASS T-Model (S202) C 43 AMG (202.093) 1996 – 2001 4266 225 306
MERCEDES-BENZ C-CLASS T-Model (S202) C 220 T D (202.182) 1996 – 2001 2155 55 75
MERCEDES-BENZ C-CLASS T-Model (S202) C 240 T (202.086) 1996 – 2001 2398 125 170
MERCEDES-BENZ C-CLASS T-Model (S202) C 200 T Kompressor (202.082) 1996 – 2001 1998 141 192
MERCEDES-BENZ C-CLASS T-Model (S202) C 220 T CDI (202.193) 1996 – 2001 2151 92 125
MERCEDES-BENZ C-CLASS T-Model (S202) C 200 T (202.080) 1996 – 2001 1998 100 136
MERCEDES-BENZ C-CLASS T-Model (S202) C 230 T (202.083) 1996 – 2001 2295 110 150
MERCEDES-BENZ C-CLASS T-Model (S202) C 200 T D (202.180) 1996 – 2001 1997 65 88
MERCEDES-BENZ C-CLASS T-Model (S202) C 230 T Kompressor (202.085) 1996 – 2001 2295 142 193
MERCEDES-BENZ C-CLASS T-Model (S202) C 280 T (202.089) 1996 – 2001 2799 145 197
