Brake Disc

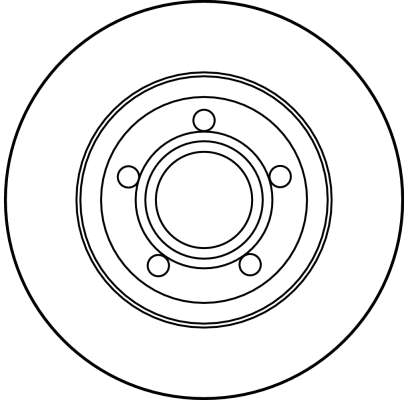

Brake Disc 1 Brake Disc 2
Braking System

Brake Disc

Part No. DF2730 · SKU DF2730-TRW
Front Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)112
Brake Disc Thickness (mm)13
Brake Disc Type solid
Centering Diameter (mm)68
Colour black
Height (mm)46.4
Machining High-carbon
Minimum thickness (mm)11
Number of Holes 5
Outer Diameter (mm)280
Surface Painted
Test Mark E1 90R-02 C0190/0527
Thread Size 15,5
Bolt Hole Circle Ø [mm] 112, Brake Disc Thickness [mm] 13, Brake Disc Type solid, Centering Diameter [mm] 68, Colour black, Height [mm] 46,4, Machining High-carbon, Minimum thickness [mm] 11, Number of Holes 5, Outer Diameter [mm] 280, Surface Painted, Test Mark E1 90R-02 C0190/0527, Thread Size 15,5
Fits: AUDI

Interchangeable Part Numbers

A.B.S.16293 ABEXW0772 ACDelcoAC2243D APECDSK638 ATE24011301811 ATE24031301811 ATE24111301811 ATE413181 BENDIX561979B BENDIX561979BC BLUE PRINTADV184388 BORG & BECKBBD5072 BOSCH 0 986 478615 BOSCH0986478615 BOSCH 0 986 479889 BOSCH0986479889 BOSCH986478615 BRADI1.0124.1.E Brake ENGINEERINGDI955521 BREMBO08.6751.10 CAR142714 CARHPD714 DBA AustraliaDBA804 DELPHIBG2987 DELPHIBG987 DELPHIBS4533 FEBI BILSTEIN08594 FERODODDF759 FERODODDF7591 FERODODDF759C FERODODDF759C1 FERODODDF759X FERODODRF759 FIRST LINEFBD818 FTE9072108 FTE9082126 FTEBS4578 FTEBS4578B GIRLING6027303 HELLA 8DD 355104-161 HELLA8DD355104161 HELLA 8DD 355104-171 HELLA8DD355104171 JURID561979J JURID561979JC LEMFÖRDER 1415602 LEMFÖRDER1415602 LPRA1411P MAGNETI MARELLI351012410500 MAGNETI MARELLI360204000150 MAGNETI MARELLI431602042480 METELLI23-0392C METELLI230392 METZGER14544 MEYLE 115 5211028 MEYLE1155211028 MEYLE1155211028PD MGAD1192 MINTEXMDC829 NationalNBD708 NK204745 NK314745 OBTEC A/S424235 OPTIMALBS-4720C OPTIMALBS-4720 PAGID53929 PAGID53929PRO PEX140042 PILENGA5362 QH Benelux57679 QUINTON HAZELLBDC4578 QUINTON HAZELLBSF4578 REMSA647200 REMYRAD2051C ROULUNDS RUBBERD2243 ST-TEMPLIN0311010280 ST-TEMPLIN0311010285 SWAG32908594 TEXTAR92071600 TEXTAR92071603 TEXTAR92071605 TEXTAR98200071601 TRISCAN812029139 TRUSTINGDF187 VAICOV10-40024 VALEO186408 WOKINGP647200 ZIMMERMANN100122800 ZIMMERMANN100122850

OE Numbers — AUDI 8D0 615 301

A

OE Numbers — AUDI

8D0615301A 8D0615301AROH 8DO615301A
MakeModelType / Engine YearsCCkWHP
AUDI A4 B5 (8D2) 2.4 quattro 1994 – 2001 2393 120 163
AUDI A4 B5 (8D2) 2.8 1994 – 2001 2771 142 193
AUDI A4 B5 (8D2) S4 quattro 1994 – 2001 2671 187 254
AUDI A4 B5 (8D2) 2.8 quattro 1994 – 2001 2771 142 193
AUDI A4 B5 (8D2) 1.9 TDI quattro 1994 – 2001 1896 81 110
AUDI A4 B5 (8D2) 2.4 1994 – 2001 2393 121 165
AUDI A4 B5 (8D2) 2.4 quattro 1994 – 2001 2393 121 165
AUDI A4 B5 (8D2) S4 quattro 1994 – 2001 2671 195 265
AUDI A4 B5 (8D2) 2.5 TDI 1994 – 2001 2496 110 150
AUDI A4 B5 (8D2) 2.5 TDI quattro 1994 – 2001 2496 110 150
AUDI A4 B5 (8D2) 2.7 Turbo quattro 1994 – 2001 2671 169 230
AUDI A4 B5 (8D2) 2.4 1994 – 2001 2393 120 163
AUDI A4 B5 (8D2) 1.9 TDI 1994 – 2001 1896 85 116
AUDI A4 B5 (8D2) 1.6 1994 – 2001 1595 75 102
AUDI A4 B5 (8D2) 1.8 T quattro 1994 – 2001 1781 132 180
AUDI A4 B5 (8D2) 1.8 T 1994 – 2001 1781 132 180
AUDI A4 B5 (8D2) 1.8 quattro 1994 – 2001 1781 85 115
AUDI A4 B5 (8D2) 1.9 TDI quattro 1994 – 2001 1896 85 116
AUDI A4 B5 (8D2) 1.9 TDI 1994 – 2001 1896 55 75
AUDI A4 B5 (8D2) 1.8 1994 – 2001 1781 85 115
AUDI A4 B5 (8D2) 1.9 TDI 1994 – 2001 1896 81 110
AUDI A4 B5 (8D2) 1.8 1994 – 2001 1781 92 125
AUDI A4 B5 (8D2) 1.8 T 1994 – 2001 1781 110 150
AUDI A4 B5 (8D2) 2.6 1994 – 2001 2598 110 150
AUDI A4 B5 (8D2) 2.8 1994 – 2001 2771 128 174
AUDI A4 B5 (8D2) 1.9 TDI 1994 – 2001 1896 66 90
AUDI A4 B5 (8D2) 1.8 quattro 1994 – 2001 1781 92 125
AUDI A4 B5 (8D2) 1.8 T quattro 1994 – 2001 1781 110 150
AUDI A4 B5 (8D2) 2.6 quattro 1994 – 2001 2598 110 150
AUDI A4 B5 (8D2) 2.8 quattro 1994 – 2001 2771 128 174
AUDI A4 B5 (8D2) 2.8 quattro 1994 – 2001 2771 140 190
AUDI A4 B5 (8D2) 1.6 1994 – 2001 1595 74 100
AUDI A4 B5 (8D2) 1.8 T quattro 1994 – 2001 1781 125 170
AUDI A4 B5 (8D2) 2.8 1994 – 2001 2771 140 190
AUDI A4 B5 (8D2) 2.6 1994 – 2001 2598 102 139
AUDI A4 B5 (8D2) 2.4 1994 – 2001 2393 110 150
AUDI A4 B5 Avant (8D5) 2.4 1994 – 2002 2393 120 163
AUDI A4 B5 Avant (8D5) 1.6 1994 – 2002 1595 75 102
AUDI A4 B5 Avant (8D5) 2.4 quattro 1994 – 2002 2393 120 163
AUDI A4 B5 Avant (8D5) 2.8 quattro 1994 – 2002 2771 140 190
AUDI A4 B5 Avant (8D5) 1.8 quattro 1994 – 2002 1781 85 115
AUDI A4 B5 Avant (8D5) 2.8 1994 – 2002 2771 140 190
AUDI A4 B5 Avant (8D5) 1.9 Hybrid 1994 – 2002 1896 66 90
AUDI A4 B5 Avant (8D5) 1.8 1994 – 2002 1781 85 115
AUDI A4 B5 Avant (8D5) 2.4 1994 – 2002 2393 110 150
AUDI A4 B5 Avant (8D5) S4 quattro 1994 – 2002 2671 185 252
AUDI A4 B5 Avant (8D5) 2.8 quattro 1994 – 2002 2771 142 193
AUDI A4 B5 Avant (8D5) 1.6 1994 – 2002 1595 74 100
AUDI A4 B5 Avant (8D5) 1.8 1994 – 2002 1781 92 125
AUDI A4 B5 Avant (8D5) 1.8 T 1994 – 2002 1781 110 150
AUDI A4 B5 Avant (8D5) 2.6 1994 – 2002 2598 110 150
AUDI A4 B5 Avant (8D5) 1.9 TDI 1994 – 2002 1896 66 90
AUDI A4 B5 Avant (8D5) 1.9 TDI 1994 – 2002 1896 81 110
AUDI A4 B5 Avant (8D5) 1.8 quattro 1994 – 2002 1781 92 125
AUDI A4 B5 Avant (8D5) 1.8 T quattro 1994 – 2002 1781 110 150
AUDI A4 B5 Avant (8D5) 2.6 quattro 1994 – 2002 2598 110 150
AUDI A4 B5 Avant (8D5) 2.8 1994 – 2002 2771 142 193
AUDI A4 B5 Avant (8D5) RS4 quattro 1994 – 2002 2671 280 380
AUDI A4 B5 Avant (8D5) 1.9 TDI quattro 1994 – 2002 1896 81 110
AUDI A4 B5 Avant (8D5) 2.4 1994 – 2002 2393 121 165
AUDI A4 B5 Avant (8D5) 2.4 quattro 1994 – 2002 2393 121 165
AUDI A4 B5 Avant (8D5) S4 quattro 1994 – 2002 2671 195 265
AUDI A4 B5 Avant (8D5) 2.5 TDI 1994 – 2002 2496 110 150
AUDI A4 B5 Avant (8D5) 2.5 TDI quattro 1994 – 2002 2496 110 150
AUDI A4 B5 Avant (8D5) 1.9 TDI 1994 – 2002 1896 85 115
AUDI A4 B5 Avant (8D5) 1.8 T quattro 1994 – 2002 1781 132 180
AUDI A4 B5 Avant (8D5) 1.8 T 1994 – 2002 1781 132 180
AUDI A4 B5 Avant (8D5) 1.9 TDI quattro 1994 – 2002 1896 85 115
