Braking System

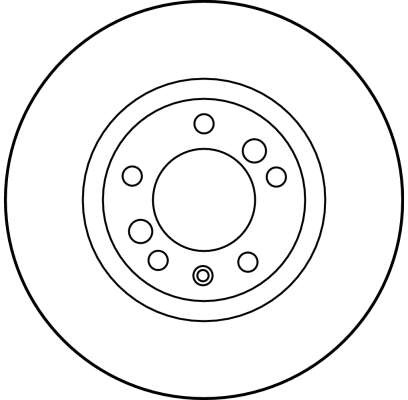

Brake Disc

Name: Brake Disc
Brand: TRW
SKU: DF2733S-TRW
Price: 31800.00 PHP
Availability: InStock

Part No. DF2733S · SKU DF2733S-TRW

Front Axle

₱31,800.00

In stock — available to order

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)	120
Brake Disc Thickness (mm)	28
Brake Disc Type Vented
Centering Diameter (mm)	79
Height (mm)	76
Minimum thickness (mm)	26.4
Number of Holes 5
Outer Diameter (mm)	315
Thread Size 15

Bolt Hole Circle Ø [mm] 120, Brake Disc Thickness [mm] 28, Brake Disc Type Vented, Centering Diameter [mm] 79, Height [mm] 76, Minimum thickness [mm] 26,4, Number of Holes 5, Outer Diameter [mm] 315, Thread Size 15
Fits: BMW

Supplier Cross-References

DELPHIBG3211 TEXTAR92070900 FERODODDF771 JURID561985J BREMBO9592910 TRWDF2733S

Interchangeable Part Numbers

APECDSK2014 BENDIX561985B BREMBO09.5929.10 FEBI BILSTEIN44069 FERODODDF7711 FIRST LINEFBD823 GIRLING6027335 HELLA8DD 355 104-071 LEMFÖRDER13828 01 NK201577 OPTIMALBS-7584C OPTIMALBS-7584 PAGID50430 REMSA634610 SWAG20 94 4069 TEXTAR98200070901 TRISCAN812011141 VAICOV20-80023 ZIMMERMANN150127700 ZIMMERMANN150127752

OE Numbers — BMW

2 226 385 34 11 2 226 385

Make	Model	Type / Engine	Years	CC	kW	HP
BMW	5 (E34)	520 i 24V	1987 – 1995	1990	110	150
BMW	5 (E34)	518 i	1987 – 1995	1796	85	115
BMW	5 (E34)	518 i	1987 – 1995	1796	83	113
BMW	5 (E34)	525 td	1987 – 1995	2497	85	115
BMW	5 (E34)	520 i	1987 – 1995	1990	95	129
BMW	5 (E34)	540 i V8	1987 – 1995	3982	210	286
BMW	5 (E34)	M5	1987 – 1995	3795	250	340
BMW	5 (E34)	M5	1987 – 1995	3535	232	315
BMW	5 (E34)	535 i	1987 – 1995	3430	155	211
BMW	5 (E34)	530 i V8	1987 – 1995	2997	160	218
BMW	5 (E34)	530 i	1987 – 1995	2986	138	188
BMW	5 (E34)	525 tds	1987 – 1995	2497	105	143
BMW	5 (E34)	525 iX 24V	1987 – 1995	2494	141	192
BMW	5 (E34)	525 i 24V	1987 – 1995	2494	141	192
BMW	5 (E34)	525 i	1987 – 1995	2494	125	170
BMW	5 (E34)	524 td	1987 – 1995	2443	85	115
BMW	5 Touring (E34)	518 i	1991 – 1996	1796	83	113
BMW	5 Touring (E34)	525 td	1991 – 1996	2497	85	115
BMW	5 Touring (E34)	518 i	1991 – 1996	1796	85	115
BMW	5 Touring (E34)	M5	1991 – 1996	3795	250	340
BMW	5 Touring (E34)	518 g	1991 – 1996	1796	74	101
BMW	5 Touring (E34)	540 i	1991 – 1996	3982	210	286
BMW	5 Touring (E34)	530 i	1991 – 1996	2997	160	218
BMW	5 Touring (E34)	525 tds	1991 – 1996	2497	105	143
BMW	5 Touring (E34)	525 ix	1991 – 1996	2494	141	192
BMW	5 Touring (E34)	525 i	1991 – 1996	2494	141	192
BMW	5 Touring (E34)	520 i	1991 – 1996	1990	110	150
