Brake Disc
Brake Disc 1 Brake Disc 2
Braking System

Brake Disc

Part No. DF2749 · SKU DF2749-TRW
Front Axle
₱29,600.00
In stock — available to order
Genuine & OEM parts Nationwide delivery Easy returns

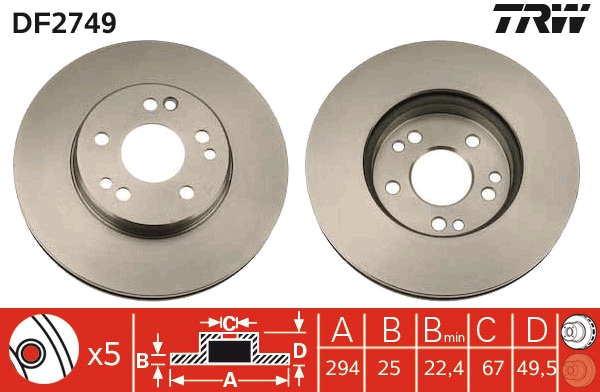

Specifications

Bolt Hole Circle Ø (mm)112
Brake Disc Thickness (mm)25
Brake Disc Type Vented
Centering Diameter (mm)67
Colour black
Height (mm)49
Minimum thickness (mm)22.4
Number of Holes 5
Outer Diameter (mm)294
Surface Painted
Test Mark E1 90R-02 C0176/0490
Thread Size 15
Bolt Hole Circle Ø [mm] 112, Brake Disc Thickness [mm] 25, Brake Disc Type Vented, Centering Diameter [mm] 67, Colour black, Height [mm] 49, Minimum thickness [mm] 22,4, Number of Holes 5, Outer Diameter [mm] 294, Surface Painted, Test Mark E1 90R-02 C0176/0490, Thread Size 15
Fits: MERCEDES-BENZ

Supplier Cross-References

DELPHIBG2772 FERODODDF725 ATE24012501071 JURID561874J BREMBO9674510 TRWDF2749

Interchangeable Part Numbers

A.B.S.16260 A.P.24615 ACDelcoAC2417D APECDSK936 ATE24032501071 ATE24112501071 ATE425107 ATE525107 BENDIX561874B BENDIX561874BC BORG & BECKBBD5052 BOSCH0 986 478 428 BRADI1.2828.2.E Brake ENGINEERINGDI955481 BREMBO09.6745.10 CAR142440 CARHPD440 DBA AustraliaDBA268 DELPHIBG772 DELPHIBS4537 DONPCD15202 FEBI BILSTEIN10683 FERODODDF7251 FIRST LINEFBD589 FTE9071380 FTEBS4639 HELLA8DD 355 103-031 HELLA8DD 355 122-242 JURID561874JC KAWE6524 10 LEMFÖRDER17965 02 LPRM2571V MAGNETI MARELLI351282820500 MAPCO15797 MEYLE015 521 2011 MINTEXMDC851 NationalNBD648 NK203338 NK313338 OBTEC A/S232318V OPEN PARTSBDR1313.20 OPTIMALBS-5240C OPTIMALBS-5240 PAGID52128 PEX140326 PILENGAV198 QH Benelux57537 QUINTON HAZELLBDC4639 QUINTON HAZELLBSF4639 ROULUNDS RUBBERD2417 sbs1815203338 SEBRO5068 ST-TEMPLIN0311020490 ST-TEMPLIN0311020495 SWAG10910683 TEXTAR92060000 TEXTAR98200060001 TRISCAN812023121 TRUCKTEC AUTOMOTIVE0235063 TRUSTINGDF515 VALEO186466 WOKINGD6524.10 WOKINGP652410 ZIMMERMANN400143000 ZIMMERMANN400143020 ZIMMERMANN400143050 ZIMMERMANN400143052

OE Numbers — MERCEDES-BENZ

124 421 24 12 A1244212412
MakeModelType / Engine YearsCCkWHP
MERCEDES-BENZ 124 Coupe (C124) 200 CE (124.041) 1987 – 1993 1996 90 122
MERCEDES-BENZ 124 Coupe (C124) 230 CE (124.043) 1987 – 1993 2298 100 136
MERCEDES-BENZ 124 Coupe (C124) 300 CE 1987 – 1993 2960 138 188
MERCEDES-BENZ 124 Coupe (C124) 300 CE-24 (124.051) 1987 – 1993 2960 162 220
MERCEDES-BENZ 124 Coupe (C124) 230 CE Cat (124.043) 1987 – 1993 2298 97 132
MERCEDES-BENZ 124 Coupe (C124) 300 CE (124.050) 1987 – 1993 2960 132 180
MERCEDES-BENZ 124 Coupe (C124) 320 CE (124.052) 1987 – 1993 3199 162 220
MERCEDES-BENZ 124 Coupe (C124) 220 CE (124.042) 1987 – 1993 2199 110 150
MERCEDES-BENZ 124 Coupe (C124) 230 CE (124.043) 1987 – 1993 2298 97 132
MERCEDES-BENZ 124 Coupe (C124) 300 CE-24 (124.051) 1987 – 1993 2960 170 231
MERCEDES-BENZ 124 Coupe (C124) 200 CE (124.041) 1987 – 1993 1996 87 118
MERCEDES-BENZ 124 Coupe (C124) 200 CE (124.040) 1987 – 1993 1998 100 136
MERCEDES-BENZ 124 Saloon (W124) 200 E (124.019) 1984 – 1993 1998 100 136
MERCEDES-BENZ 124 Saloon (W124) 300 Turbo-D (124.133) 1984 – 1993 2996 108 147
MERCEDES-BENZ 124 Saloon (W124) 200 1984 – 1993 1996 77 105
MERCEDES-BENZ 124 Saloon (W124) 300 E-24 (124.031) 1984 – 1993 2960 162 220
MERCEDES-BENZ 124 Saloon (W124) 500 E (124.036) 1984 – 1993 4973 240 326
MERCEDES-BENZ 124 Saloon (W124) 200 (124.020) 1984 – 1993 1996 80 109
MERCEDES-BENZ 124 Saloon (W124) 500 E 1984 – 1993 4973 235 320
MERCEDES-BENZ 124 Saloon (W124) 300 D 1984 – 1993 2497 90 121
MERCEDES-BENZ 124 Saloon (W124) 200 E 1984 – 1993 1997 77 105
MERCEDES-BENZ 124 Saloon (W124) 220 E (124.022) 1984 – 1993 2199 110 150
MERCEDES-BENZ 124 Saloon (W124) 280 E (124.028) 1984 – 1993 2799 145 197
MERCEDES-BENZ 124 Saloon (W124) 400 E 4.2 (124.034) 1984 – 1993 4196 205 279
MERCEDES-BENZ 124 Saloon (W124) 300 E-24 (124.031) 1984 – 1993 2960 170 231
MERCEDES-BENZ 124 Saloon (W124) 320 E (124.032) 1984 – 1993 3199 162 220
MERCEDES-BENZ 124 Saloon (W124) 300 Turbo-D (124.133) 1984 – 1993 2996 105 143
MERCEDES-BENZ 124 Saloon (W124) 230 E Cat (124.023) 1984 – 1993 2298 97 132
MERCEDES-BENZ 124 Saloon (W124) 300 E-24 AMG (124.031) 1984 – 1993 3428 200 272
MERCEDES-BENZ 124 Saloon (W124) 300 E 1984 – 1993 2960 138 188
MERCEDES-BENZ 124 Saloon (W124) 300 D (124.130) 1984 – 1993 2996 80 109
MERCEDES-BENZ 124 Saloon (W124) 250 Turbo-D (124.128) 1984 – 1993 2497 93 126
MERCEDES-BENZ 124 Saloon (W124) 250 D (124.125) 1984 – 1993 2497 69 94
MERCEDES-BENZ 124 Saloon (W124) 250 D (124.125) 1984 – 1993 2497 66 90
MERCEDES-BENZ 124 Saloon (W124) 200 D (124.120) 1984 – 1993 1997 55 75
MERCEDES-BENZ 124 Saloon (W124) 200 D (124.120) 1984 – 1993 1997 53 72
MERCEDES-BENZ 124 Saloon (W124) 300 E 1984 – 1993 2960 138 188
MERCEDES-BENZ 124 Saloon (W124) 300 E 4-matic 1984 – 1993 2960 138 188
MERCEDES-BENZ 124 Saloon (W124) 300 E 4-matic (124.230) 1984 – 1993 2960 132 180
MERCEDES-BENZ 124 Saloon (W124) 300 E (124.030) 1984 – 1993 2960 132 180
MERCEDES-BENZ 124 Saloon (W124) 300 Turbo-D 4-matic (124.333) 1984 – 1993 2996 105 143
MERCEDES-BENZ 124 Saloon (W124) 260 E 4-matic (124.226) 1984 – 1993 2597 122 166
MERCEDES-BENZ 124 Saloon (W124) 260 E (124.026) 1984 – 1993 2597 122 166
MERCEDES-BENZ 124 Saloon (W124) 260 E (124.026) 1984 – 1993 2597 118 160
MERCEDES-BENZ 124 Saloon (W124) 260 E 4-matic (124.226) 1984 – 1993 2597 118 160
MERCEDES-BENZ 124 Saloon (W124) 230 E (124.023) 1984 – 1993 2298 100 136
MERCEDES-BENZ 124 Saloon (W124) 230 E (124.023) 1984 – 1993 2298 97 132
MERCEDES-BENZ 124 Saloon (W124) 200 E (124.021) 1984 – 1993 1996 90 122
MERCEDES-BENZ 124 Saloon (W124) 200 E (124.021) 1984 – 1993 1996 87 118
MERCEDES-BENZ 124 Saloon (W124) 200 (124.020) 1984 – 1993 1996 75 102
MERCEDES-BENZ 124 Saloon (W124) 300 D (124.130) 1984 – 1993 2996 83 113
MERCEDES-BENZ 124 Saloon (W124) 300 Turbo-D 4-matic (124.333) 1984 – 1993 2996 108 147
MERCEDES-BENZ 124 Saloon (W124) 300 D 4-matic (124.330) 1984 – 1993 2996 80 109
MERCEDES-BENZ 124 Saloon (W124) 300 D (124.130) 1984 – 1993 2996 81 110
MERCEDES-BENZ 124 Saloon (W124) 300 D 4-matic (124.330) 1984 – 1993 2996 83 113
MERCEDES-BENZ E-CLASS (W124) E 300 Turbo-D 4-matic (124.333) 1993 – 1996 2996 108 147
MERCEDES-BENZ E-CLASS (W124) E 60 AMG (124.036) 1993 – 1996 5956 280 381
MERCEDES-BENZ E-CLASS (W124) E 500 (124.036) 1993 – 1996 4973 235 320
MERCEDES-BENZ E-CLASS (W124) E 420 (124.034) 1993 – 1996 4196 205 279
MERCEDES-BENZ E-CLASS (W124) E 320 (124.032) 1993 – 1996 3199 162 220
MERCEDES-BENZ E-CLASS (W124) E 300 D (124.131) 1993 – 1996 2996 100 136
MERCEDES-BENZ E-CLASS (W124) E 250 D (124.126, 124.129) 1993 – 1996 2497 83 113
MERCEDES-BENZ E-CLASS (W124) E 280 (124.028) 1993 – 1996 2799 145 197
MERCEDES-BENZ E-CLASS (W124) E 280 (124.029) 1993 – 1996 2799 142 193
MERCEDES-BENZ E-CLASS (W124) E 420 (124.034) 1993 – 1996 4196 125 170
MERCEDES-BENZ E-CLASS (W124) E 300 4-matic (124.230) 1993 – 1996 2960 132 180
MERCEDES-BENZ E-CLASS (W124) E 300 Turbo-D (124.133) 1993 – 1996 2996 108 147
MERCEDES-BENZ E-CLASS (W124) E 250 Turbo-D (124.128) 1993 – 1996 2497 93 126
MERCEDES-BENZ E-CLASS (W124) E 200 D (124.120) 1993 – 1996 1997 55 75
MERCEDES-BENZ E-CLASS (W124) E 500 (124.036) 1993 – 1996 4973 240 326
MERCEDES-BENZ E-CLASS (W124) E 220 (124.022) 1993 – 1996 2199 110 150
MERCEDES-BENZ E-CLASS (W124) E 200 (124.019) 1993 – 1996 1998 100 136
MERCEDES-BENZ E-CLASS Convertible (A124) E 36 AMG (124.066) 1993 – 1998 3606 200 272
MERCEDES-BENZ E-CLASS Convertible (A124) E 320 (124.066) 1993 – 1998 3199 162 220
MERCEDES-BENZ E-CLASS Convertible (A124) E 220 (124.062) 1993 – 1998 2199 110 150
MERCEDES-BENZ E-CLASS Convertible (A124) E 200 (124.060) 1993 – 1998 1998 100 136
MERCEDES-BENZ E-CLASS Coupe (C124) E 200 (124.040) 1993 – 1997 1998 100 136
MERCEDES-BENZ E-CLASS Coupe (C124) E 36 AMG (124.052) 1993 – 1997 3606 200 272
MERCEDES-BENZ E-CLASS Coupe (C124) E 320 (124.052) 1993 – 1997 3199 162 220
MERCEDES-BENZ E-CLASS Coupe (C124) E 220 (124.042) 1993 – 1997 2199 110 150
MERCEDES-BENZ E-CLASS T-Model (S124) E 200 T (124.079) 1993 – 1996 1998 100 136
MERCEDES-BENZ E-CLASS T-Model (S124) E 300 TD (124.191) 1993 – 1996 2996 100 136
MERCEDES-BENZ E-CLASS T-Model (S124) E 220 T (124.082) 1993 – 1996 2199 110 150
MERCEDES-BENZ E-CLASS T-Model (S124) E 250 Turbo D 1993 – 1996 2497 93 126
MERCEDES-BENZ E-CLASS T-Model (S124) E 280 T (124.088) 1993 – 1996 2799 145 197
MERCEDES-BENZ E-CLASS T-Model (S124) E 320 T (124.092) 1993 – 1996 3199 162 220
MERCEDES-BENZ E-CLASS T-Model (S124) E 300 TD (124.190) 1993 – 1996 2996 80 109
MERCEDES-BENZ E-CLASS T-Model (S124) E 250 TD (124.186) 1993 – 1996 2497 83 113
MERCEDES-BENZ E-CLASS T-Model (S124) E 280 T (124.088) 1993 – 1996 2799 142 193
MERCEDES-BENZ E-CLASS T-Model (S124) E 300 T Turbo-D 4-matic (124.393) 1993 – 1996 2996 108 147
MERCEDES-BENZ E-CLASS T-Model (S124) E 300 T 4-matic (124.290) 1993 – 1996 2960 132 180
MERCEDES-BENZ E-CLASS T-Model (S124) E 300 T Turbo-D (124.193) 1993 – 1996 2996 108 147
MERCEDES-BENZ E-CLASS T-Model (S124) E 36 T AMG (124.092) 1993 – 1996 3606 200 272
