TRW
Braking System

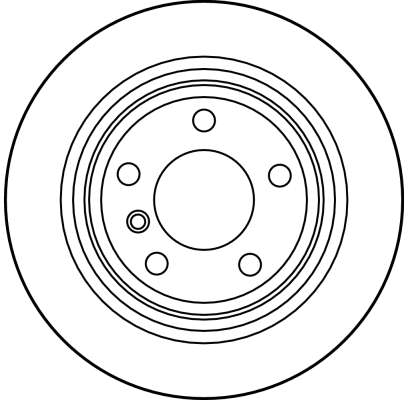

Brake Disc
Part No.
DF2768
·
SKU
DF2768-TRW
Rear Axle
Price on request
Currently out of stock
Get notified when this part is back in stock:
Genuine & OEM parts
Nationwide delivery
Easy returns
Specifications
| Bolt Hole Circle Ø (mm) | 120 |
| Brake Disc Thickness (mm) | 10 |
| Brake Disc Type solid |
| Centering Diameter (mm) | 75 |
| Colour black |
| Drum diameter (mm) | 185 |
| Height (mm) | 61 |
| Machining High-carbon |
| Minimum thickness (mm) | 8.4 |
| Number of Holes 5 |
| Outer Diameter (mm) | 298 |
| Surface Painted |
| Test Mark E1 90R-02 C0204/0562 |
| Thread Size 14,6 |
Bolt Hole Circle Ø [mm] 120, Brake Disc Thickness [mm] 10, Brake Disc Type solid, Centering Diameter [mm] 75, Colour black, Drum diameter [mm] 185, Height [mm] 61, Machining High-carbon, Minimum thickness [mm] 8,4, Number of Holes 5, Outer Diameter [mm] 298, Surface Painted, Test Mark E1 90R-02 C0204/0562, Thread Size 14,6
Fits: BMW
Interchangeable Part Numbers
A.B.S.16341
A.P.14642
A.P.14642V
ACDelcoAC2339D
APECDSK949
ATE24011002271
ATE24031002271
ATE24111002271
BENDIX562062B
BENDIX562062BC
BORG & BECKBBD4068
BOSCH0 986 478 425
BOSCH0986AB5935
BRADI1.0637.5.4
Brake ENGINEERINGDI955611
BREMBO08.6917.10
BREMBO08691711
BREMBO08691775
CAR142099
CARHPD099
DBA AustraliaDBA987
DELPHIBG3044
FEBI BILSTEIN12325
FERODODDF835
FERODODDF8351
FERODODDF835C
FERODODDF835C1
FIRST LINEFBD1004
FTE9072151
FTE9082047
FTEBS4750
FTEBS4750HB
GIRLING6027684
HELLA8DD 355 104-791
HELLA8DD 355 104-801
HELLA8DD 355 127-271
JURID562062J
JURID562062JC
LEMFÖRDER24795 02
LEMFÖRDER27220 01
LPRB2451P
MAGNETI MARELLI353610637540
MAGNETI MARELLI431602040900
MAPCO15652
METELLI230397
METELLI230397C
MEYLE315 523 3018/PD
MEYLE315 523 3018
MEYLE3155230040
MEYLE3155230040PD
MGAD1197
MINTEXMDC1061
NationalNBD859
NK201537
NK311537
OBTEC A/S131348
OPTIMALBS-5540C
OPTIMALBS-5540
PAGID50440
PAGID50440PRO
PEX140109
PEX140109N
PILENGA5111
QH Benelux57733
QUINTON HAZELL655400
QUINTON HAZELLBDC4750
QUINTON HAZELLBSF4750
ROULUNDS RUBBERD2339
SEBRO2433
ST-TEMPLIN0311011960
ST-TEMPLIN0311011965
SWAG20912325
TEXTAR92076600
TEXTAR92076603
TEXTAR98200076601
TRISCAN812011134
TRUCKTEC AUTOMOTIVE0834022
TRUSTINGDF197
VALEO186568
WOKINGP655400
ZIMMERMANN150128500
ZIMMERMANN150128520
ZIMMERMANN150128550
ZIMMERMANN150128552
OE Numbers — BMW
1 163 669
1 164 129
34 21 1 163 669
34 21 1 164 129
34 21 6 767 049
6 767 049
| Make | Model | Type / Engine |
Years | CC | kW | HP |
| BMW |
5 (E39) |
520 i |
1995 – 2003 |
1990 |
100 |
136 |
| BMW |
5 (E39) |
520 i |
1995 – 2003 |
2171 |
120 |
163 |
| BMW |
5 (E39) |
540 i |
1995 – 2003 |
4398 |
216 |
294 |
| BMW |
5 (E39) |
530 i |
1995 – 2003 |
2979 |
168 |
228 |
| BMW |
5 (E39) |
525 i |
1995 – 2003 |
2494 |
137 |
186 |
| BMW |
5 (E39) |
530 i |
1995 – 2003 |
2979 |
170 |
231 |
| BMW |
5 (E39) |
525 i |
1995 – 2003 |
2494 |
141 |
192 |
| BMW |
5 (E39) |
530 d |
1995 – 2003 |
2926 |
142 |
193 |
| BMW |
5 (E39) |
520 i |
1995 – 2003 |
2171 |
125 |
170 |
| BMW |
5 (E39) |
525 d |
1995 – 2003 |
2497 |
120 |
163 |
| BMW |
5 (E39) |
520 d |
1995 – 2003 |
1951 |
100 |
136 |
| BMW |
5 (E39) |
520 i |
1995 – 2003 |
1990 |
110 |
150 |
| BMW |
5 (E39) |
535 i |
1995 – 2003 |
3498 |
180 |
245 |
| BMW |
5 (E39) |
M5 |
1995 – 2003 |
4941 |
294 |
400 |
| BMW |
5 (E39) |
530 d |
1995 – 2003 |
2926 |
135 |
184 |
| BMW |
5 (E39) |
525 td |
1995 – 2003 |
2497 |
85 |
116 |
| BMW |
5 (E39) |
535 i |
1995 – 2003 |
3498 |
173 |
235 |
| BMW |
5 (E39) |
540 i |
1995 – 2003 |
4398 |
210 |
286 |
| BMW |
5 (E39) |
528 i |
1995 – 2003 |
2793 |
142 |
193 |
| BMW |
5 (E39) |
523 i |
1995 – 2003 |
2494 |
125 |
170 |
| BMW |
5 (E39) |
525 tds |
1995 – 2003 |
2497 |
105 |
143 |
