Brake Disc

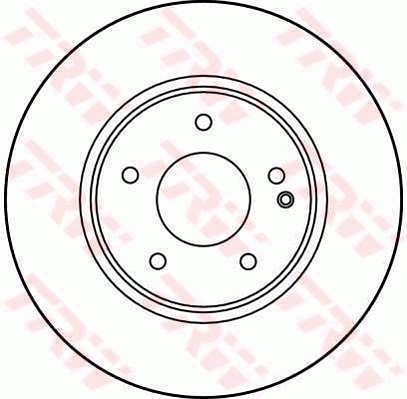

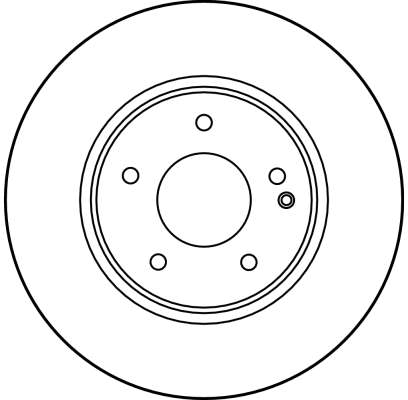

Brake Disc 1 Brake Disc 2
Braking System

Brake Disc

Part No. DF2779 · SKU DF2779-TRW
Front Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)112
Brake Disc Thickness (mm)25
Brake Disc Type Vented
Centering Diameter (mm)67
Height (mm)47
Machining High-carbon
Minimum thickness (mm)22.4
Number of Holes 5
Outer Diameter (mm)288
Thread Size 13
Bolt Hole Circle Ø [mm] 112, Brake Disc Thickness [mm] 25, Brake Disc Type Vented, Centering Diameter [mm] 67, Height [mm] 47, Machining High-carbon, Minimum thickness [mm] 22,4, Number of Holes 5, Outer Diameter [mm] 288, Thread Size 13
Fits: MERCEDES-BENZ

Interchangeable Part Numbers

A.B.S.09.6845.11 A.B.S.16448 A.P. 24678E A.P.24678E A.P. 24678V A.P.24678V A.P. X24678 A.P.X24678 ATE24.0125.-0110.1 ATE24032501101 ATE425110 BENDIX562013B BOSCH 0 986 478624 BOSCH0986478624 BOSCH 0 986 479R69 BOSCH0986479R69 BOSCH 0 986 AB9965 BOSCH0986AB9965 BOSCH986478624 BRADI1.2829.2.E BREMBO09.6845.10 BREMBO09684514 BREMBO09684575 DBA AustraliaDBA286 DELPHIBG3240 DELPHIBG3240C DELPHIBS4539 FEBI BILSTEIN18886 FERODODDF1135 FERODODDF1135C FERODODDF1135C-1-D FIRST LINEFBD1515 FTE9072018 FTE9082067 GIRLING6027791 HELLA 8DD 355107-481 HELLA8DD355107481 HELLA 8DD 355107-482 HELLA8DD355107482 HELLA 8DD 355125-541 HELLA8DD355125541 JURID562013J METELLI230701C METZGERX24903 MEYLE 015 5212035/PD MEYLE0155212035PD MEYLE 015 5212035 MEYLE0155212035 MEYLE0835212035PD NK203332 NK313332 OBTEC A/S232314V Omnicraft2134451 OPEN PARTSBDR1314.20 OPTIMALBS-4950C OPTIMALBS-4950 REMSA649510 REMSA675110 SEBRO5078 SWAG10918886 TEXTAR92072500 TEXTAR92105905 TEXTAR92287705 TEXTAR98200072501 TRUSTINGDF827 VALEO297467

OE Numbers — MERCEDES-BENZ 210 421 07

12

OE Numbers — MERCEDES-BENZ

2104210712 2104212412 A2104210712 A2104212412
MakeModelType / Engine YearsCCkWHP
MERCEDES-BENZ E-CLASS (W210) E 430 4-matic (210.083) 1995 – 2003 4266 205 279
MERCEDES-BENZ E-CLASS (W210) E 200 Kompressor (210.045) 1995 – 2003 1998 137 186
MERCEDES-BENZ E-CLASS (W210) E 55 AMG (210.074) 1995 – 2003 5439 260 354
MERCEDES-BENZ E-CLASS (W210) E 220 CDI (210.006) 1995 – 2003 2151 92 125
MERCEDES-BENZ E-CLASS (W210) E 200 CDI (210.007) 1995 – 2003 2151 75 102
MERCEDES-BENZ E-CLASS (W210) E 220 D 1995 – 2003 2155 55 75
MERCEDES-BENZ E-CLASS (W210) E 200 CDI (210.007) 1995 – 2003 2148 85 116
MERCEDES-BENZ E-CLASS (W210) E 220 CDI (210.006) 1995 – 2003 2148 105 143
MERCEDES-BENZ E-CLASS (W210) E 270 CDI (210.016) 1995 – 2003 2685 125 170
MERCEDES-BENZ E-CLASS (W210) E 320 CDI (210.026) 1995 – 2003 3222 145 197
MERCEDES-BENZ E-CLASS (W210) E 430 (210.070) 1995 – 2003 4266 205 279
MERCEDES-BENZ E-CLASS (W210) E 200 Kompressor (210.048) 1995 – 2003 1998 120 163
MERCEDES-BENZ E-CLASS (W210) E 240 (210.062) 1995 – 2003 2597 125 170
MERCEDES-BENZ E-CLASS (W210) E 36 AMG 1995 – 2003 3606 200 272
MERCEDES-BENZ E-CLASS (W210) E 55 AMG 1995 – 2003 5439 255 347
MERCEDES-BENZ E-CLASS (W210) E 220 CDI (210.006) 1995 – 2003 2148 100 136
MERCEDES-BENZ E-CLASS (W210) E 320 4-matic (210.082) 1995 – 2003 3199 160 218
MERCEDES-BENZ E-CLASS (W210) E 320 (210.065) 1995 – 2003 3199 160 218
MERCEDES-BENZ E-CLASS (W210) E 55 AMG (210.074) 1995 – 2003 5439 260 354
MERCEDES-BENZ E-CLASS (W210) E 55 AMG 4-matic (210.074) 1995 – 2003 5439 260 354
MERCEDES-BENZ E-CLASS (W210) E 270 CDI (210.016) 1995 – 2003 2685 120 163
MERCEDES-BENZ E-CLASS (W210) E 250 D (210.010) 1995 – 2003 2497 83 113
MERCEDES-BENZ E-CLASS (W210) E 200 (210.035) 1995 – 2003 1998 100 136
MERCEDES-BENZ E-CLASS (W210) E 300 D (210.020) 1995 – 2003 2996 100 136
MERCEDES-BENZ E-CLASS (W210) E 230 (210.037) 1995 – 2003 2295 110 150
MERCEDES-BENZ E-CLASS (W210) E 320 (210.055) 1995 – 2003 3199 162 220
MERCEDES-BENZ E-CLASS (W210) E 290 Turbo-D (210.017) 1995 – 2003 2874 95 129
MERCEDES-BENZ E-CLASS (W210) E 280 (210.053) 1995 – 2003 2799 142 193
MERCEDES-BENZ E-CLASS (W210) E 420 (210.072) 1995 – 2003 4196 205 279
MERCEDES-BENZ E-CLASS (W210) E 50 AMG (210.072) 1995 – 2003 4973 255 347
MERCEDES-BENZ E-CLASS (W210) E 220 D (210.004) 1995 – 2003 2155 70 95
MERCEDES-BENZ E-CLASS (W210) E 280 (210.063) 1995 – 2003 2799 150 204
MERCEDES-BENZ E-CLASS (W210) E 280 4-matic (210.081) 1995 – 2003 2799 150 204
MERCEDES-BENZ E-CLASS (W210) E 320 (210.065) 1995 – 2003 3199 165 224
MERCEDES-BENZ E-CLASS (W210) E 300 Turbo-D (210.025) 1995 – 2003 2996 130 177
MERCEDES-BENZ E-CLASS (W210) E 320 4-matic (210.082) 1995 – 2003 3199 165 224
MERCEDES-BENZ E-CLASS (W210) E 250 Turbo-D (210.015) 1995 – 2003 2497 110 150
MERCEDES-BENZ E-CLASS (W210) E 200 D (210.003) 1995 – 2003 1997 65 88
MERCEDES-BENZ E-CLASS (W210) E 240 (210.061) 1995 – 2003 2398 125 170
