Braking System

Brake Disc

Name: Brake Disc
Brand: TRW
SKU: DF2804-TRW
Availability: OutOfStock

Part No. DF2804 · SKU DF2804-TRW

Front Axle

Price on request

Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

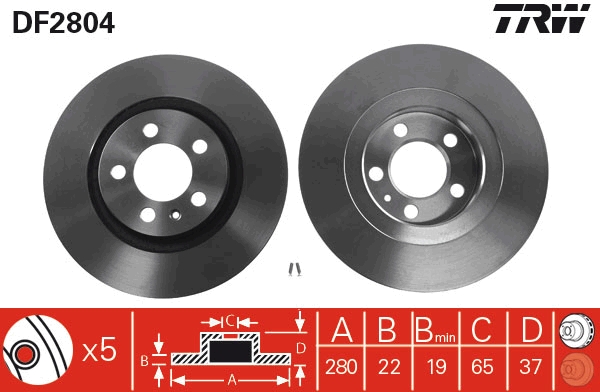

Specifications

Bolt Hole Circle Ø (mm)	100
Brake Disc Thickness (mm)	22
Brake Disc Type Vented
Centering Diameter (mm)	65
Colour black
Height (mm)	36.6
Machining High-carbon
Minimum thickness (mm)	19
Number of Holes 5
Outer Diameter (mm)	280
Supplementary Article/Info 2 with bolts/screws
Surface Painted
Test Mark E190R-02 C0185/0609
Thread Size 16

Bolt Hole Circle Ø [mm] 100, Brake Disc Thickness [mm] 22, Brake Disc Type Vented, Centering Diameter [mm] 65, Colour black, Height [mm] 36,6, Machining High-carbon, Minimum thickness [mm] 19, Number of Holes 5, Outer Diameter [mm] 280, Supplementary Article/Info 2 with bolts/screws, Surface Painted, Test Mark E190R-02 C0185/0609, Thread Size 16
Fits: AUDI, SEAT, SKODA, VW, VW (FAW), VW (SVW), ZHONGHUA (BRILLIANCE)

Interchangeable Part Numbers

A.P.24691E A.P.X24691 ACDelcoAC2254D AISINX6F922S APECDSK774 ATE24012201501 ATE24032201501 ATE24112201501 BENDIX562039B BENDIX562039BC BORG & BECKBBD4069 BOSCH0 986 478 852 BOSCH0 986 479 911 BOSCH0 986 479 R68 BOSCH0 986 AB6 594 BOSCH0 986 BB4 139 BOSCH986478852 BOSCH F026 A01 319 BOSCHF026A01319 BRADI1.5832.2.4 Brake ENGINEERINGDI955638 BREMBO09.7012.10 BREMBO09701211 BREMBO09701214 BREMBO0970121X BREMBO09701230 BREMBO09701275 CAR142747 CARHPD747 DBA AustraliaDBA801 DELPHIBG3036 DELPHIBG3036C DELPHIBS4668 FEBI BILSTEIN17936 FERODODDF928 FERODODDF9281 FERODODDF928C FERODODDF928C1 FERODODDF928P-D FERODODDF928X FERODODRF928 FIRST LINEFBD1005 FTE9072045 FTE9082393 FTE9082541 FTEBS4668B FTEBS4668HB GIRLING6028041 HELLA8DD 355 105-371 HELLA8DD 355 105-381 Hi-QSD5403 JURID562039J JURID562039JC LEMFÖRDER21308 02 LPRA1471V LPRA1471VR MAGNETI MARELLI353615832240 MAGNETI MARELLI360204000154 MAGNETI MARELLI431602040280 MAPCO15831 METELLI23-0391C METELLI230391 METELLI230904 MEYLE115 521 1027/PD MEYLE115 521 1027 MEYLE1835211027PD MGAD1191 MINTEXMDC978 MINTEXMDK0151 NationalNBD876 NK204759 NK304759 NK314759 OBTEC A/S424239V OPTIMALBS-5460C OPTIMALBS-5460 PAGID53954 PAGID53954PRO PEX140639 PEX140639N PILENGAV159 QH Benelux57772 QUINTON HAZELL839006 QUINTON HAZELL863300 QUINTON HAZELL863301 QUINTON HAZELL863302 QUINTON HAZELL863304 QUINTON HAZELLBDC4668 QUINTON HAZELLBDC4668BD QUINTON HAZELLBSF4668 REMSA654610 REMYRAD1012C ROULUNDS RUBBERD2254 RUVILLEBFR370710 ST-TEMPLIN0311010330 ST-TEMPLIN0311010335 SWAG32917936 TEXTAR92082300 TEXTAR92082303 TEXTAR92082305 TEXTAR98200082301 TRISCAN812029147 TRISCAN812029147C TRUSTINGDF511 VALEO186604 VALEO297604 WOKINGP654610 ZIMMERMANN100123400 ZIMMERMANN100123420 ZIMMERMANN100123450 ZIMMERMANN100123470

OE Numbers — AUDI

1J0 615 301 E 1J0 615 301 M 1J0 615 301 P 1JO 615 301 E

OE Numbers — BRILLIANCE

4096025

OE Numbers — SEAT

JZW615301

OE Numbers — SEAT JZW

615 301

OE Numbers — VW (SVW)

1JD 615 301

OE Numbers — VW

1JO 615 301 M

Make	Model	Type / Engine	Years	CC	kW	HP
AUDI	A3 (8L1)	1.6	1996 – 2006	1595	74	101
AUDI	A3 (8L1)	1.8	1996 – 2006	1781	92	125
AUDI	A3 (8L1)	1.8 T	1996 – 2006	1781	110	150
AUDI	A3 (8L1)	1.9 TDI	1996 – 2006	1896	66	90
AUDI	A3 (8L1)	1.9 TDI	1996 – 2006	1896	81	110
AUDI	A3 (8L1)	1.8 T quattro	1996 – 2006	1781	132	180
AUDI	A3 (8L1)	S3 quattro	1996 – 2006	1781	154	210
AUDI	A3 (8L1)	1.8 T quattro	1996 – 2006	1781	110	150
AUDI	A3 (8L1)	1.8 T	1996 – 2006	1781	132	180
AUDI	A3 (8L1)	1.9 TDI	1996 – 2006	1896	96	130
AUDI	A3 (8L1)	1.6	1996 – 2006	1595	75	102
AUDI	A3 (8L1)	1.9 TDI quattro	1996 – 2006	1896	96	130
AUDI	A3 (8L1)	1.9 TDI	1996 – 2006	1896	74	100
AUDI	A3 (8L1)	S3 quattro	1996 – 2006	1781	165	224
AUDI	A3 (8L1)	1.6	1996 – 2006	1598	74	101
